Premium & Versatile AC1200
- Dual Band Wi-Fi Performance: 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ideal for 4K video streaming, online gaming, and other high-bandwidth activities.
- Dual-Core High Performance CPU: Combined with 128MB RAM and 128MB ROM, ensures fast network speeds and low latency.
- Multiple Devices with MU-MIMO: Establish multiple connections through 2×2 MU-MIMO for higher speed and greater stability.
- Extra High-Power Amplifier: Extra 2× High-Power FEM amplifier and 4× high-performance antennas for Stronger Signal and Maximized Coverage.
- 4× Gigabit Adaptive WAN/LAN Ports: No need to distinguish between WAN and LAN—simply plug in the network cable to any port and start configuring the Internet.
- EasyMesh Compatible: Flexible creation of Mesh network for whole-home coverage by connecting to EasyMesh compatible router.
-
Wi-Fi Up to 1200 Mbps -
Dual-Core CPU 128M ROM & 128M RAM
-
Stronger Signal Wider Coverage
-
4× Gigabit Adaptive WAN/LAN Ports
-
Advanced HomeGuard
Product datasheet
-
WIRELESS
Standards and ProtocolsWi-Fi 5
- IEEE 802.11ac/n/g/b/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
Wi-Fi SpeedsDual Band AC1200
- 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
Wi-Fi Range-
4× Fixed High-Performance Antennas
?Multiple antennas form signal enhancement array to cover larger area
-
Beamforming
?Focus wireless signal strength to clients to extend Wi-Fi range
-
Built-in FEM and Extra 2× High Power FEM
?Increase transmission power and enhance signal coverage
Wi-Fi Capacity-
2×2 MU-MIMO
?Communicate with multiple MU-MIMO clients simultaneously
-
4× Streams
?Connect your devices to more bandwidth
-
Airtime Fairness
?Improve network efficiency by limiting overuse
-
DFS
?Access an extra band to reduce congestion
-
LDPC
?Improve the fault tolerance and reliability of data transmission
Working Modes- Router Mode
- Access Point Mode (Slave Router in Mesh Mode)
-
SECURITY
Wi-Fi Encryption- WPA2
- WPA
- WPA/WPA2
Network SecurityHomeGuard Security
- SPI Firewall
- Intrusion Prevention
- DDoS Protection
- Malicious Site Blocking
- Access Control
- IP & MAC Binding
- Real-Time IoT Protection
- Network Scanning
- Application Layer Gateway
- Smart Diagnostics
Guest Network- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
VPN Client- OpenVPN
- PPTP
- L2TP
- WireGuard
VPN Server- OpenVPN
-
HARDWARE
Chips- Dual Core
DDR/RAM- 256M
Flash/ROM- 128M
Ethernet Ports- 4× Gigabit Adaptive WAN / LAN Ports
Buttons- WPS/Reset
- DCin
Power- 12V/ 1A
-
SOFTWARE
Easy Mesy-
OneMesh Supported
?Support up to 10 JETON TECH mesh routers through WPS/APP/wired connection
Quality of ServiceIntelligent Acceleration by Device
IPTV- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
Parental Controls- Custom Profiles
- Access time control
- Start/End Time
- Week time
- URL Filter
TWT power saving- Smarter Energy Saving with Target Wake Time
Signal Strength Control- Extra Mode
- Standard Mode
- Sleeping Mode
Protocols- IPv4
- IPv6
WAN Types- Dynamic IP
- Static IP
- PPPoE
NAT Forwarding- Virtual Servers
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
DHCP- Address Reservation
- DHCP Client List
- Server
DDNS- Supported
Cloud Service- Auto Firmware Upgrade
- Local cloud management in Russia
Management FeaturesCloud Remote Control and Local Control
- JetNet App
- Web Page
-
-
TEST DATA
Wi-Fi Transmission Power- < 20 dBm, < 100 mW
Wi-Fi Reception Sensitivity-
2.4 GHz
?11g 6Mbps: -93dBm
11g 54Mbps: -76dBm
11n HT20 MCS7:-72dBm
11n HT40 MCS7:-69dBm
-
5 GHz
?11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-72dBm
11ac VHT80 MCS9:-63dBm
-
OTHER
CertificationsEAC, RoHS
LanguagesRussian, English, Chinese
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
EnvironmentWorking Temperature: -30~+60°C
Working Humidity:5~95%(non-condensing)
Storing Temperature: -40~+85°C
Storing Humidity:5~ 95% (non-condensing)
Dimensions (W×D×H)138.2×109.1×27.9 mm
Package Content- Wi-Fi Router Jeton AC1200 Air
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Highlights
Dual band Wi-Fi Performance
Enjoy fast and stable dual-band Wi-Fi speeds of up to 1167 Mbps
The 5 GHz band delivers speeds up to 867 Mbps — ideal for 4K video strea-ming, online gaming, and other high-bandwidth activities.
The 2.4 GHz band offers up to 300 Mbps — perfect for email, web browsing, and smart home devices.

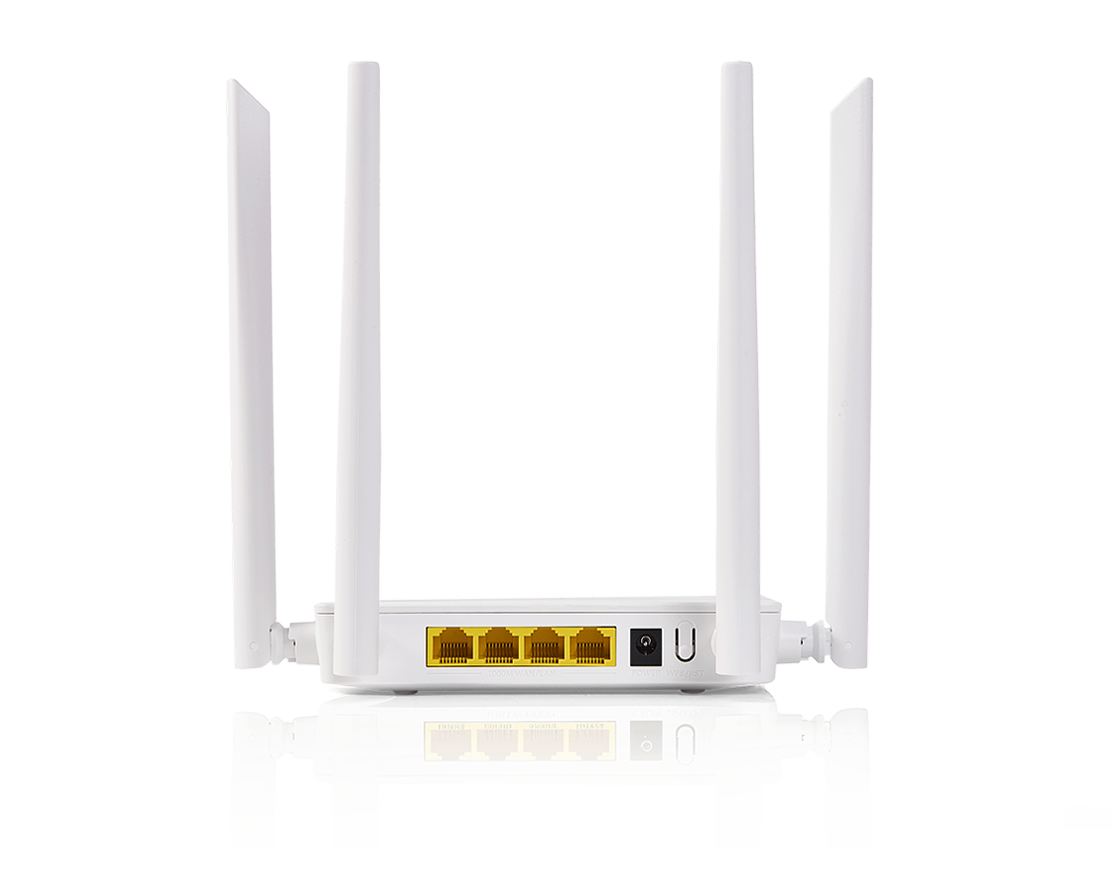

4× Gigabit Adaptive WAN/LAN Ports
UEach port supports speeds of up to 1 Gbps, meeting the bandwidth demands of PCs, smart TVs, and gaming devices.
No need to distinguish between WAN and LAN—simply plug the net-work cable into any port to start Internet configuration.
Dual-Core CPU + 256MB RAM & 128MB ROM
The high-performance dual-core CPU, combined with 256MB RAM and 128 MB ROM, ensures fast network speeds and low latency.
It enables quick response across web browsing, video streaming, IPTV, do-wnloads, and gaming.
Extra High-Power Amplifier for Stronger Signal and Maximized Coverage
4× high-performance antennas, and beam-forming technology combine to provide strong signal
Extra 2× High-Power FEM amplifier extend coverage up to 200m
