Product introduction

1*XPON+ 4*GE+ Wi-Fi 6 (AX3000) + USB 3.0 + POTS+ CATV

  • High Performance Solution: Supporting XPON dual-mode technology (EPON and GPON); Complies with international standards such as IEEE802.3ah and ITU-T G.984.
  • New Generation Dual Band Wi-Fi 6: Wi-Fi up to 3000 Mbps; 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • WPA3 Encryption: Stay protected with WPA3, the latest Wi-Fi security standard.
  • Highly Integrated Design: 2.4G and 5G antennas share the same antenna housing; With a tray-mounted fiber structure design, it can be placed on a desktop or wall-mounted.
  • Triple-play Services: Supports VoIP calls, smart CATV, and high-speed USB 3.0 at the same time.
  • Management Functions: WEB/TELNET/OAM/OMCI/TR069.
  • Product icon (29)
    High Performance Solution
  • Product icon (24)
    Dual Band Up to 3000 Mbps
  • Product icon (13)
    WPA3 Encryption
  • Product icon (15)
    Triple-play Services
  • Product icon (1)
    Highly Integrated

Product datasheet

  • Description

    Model

    JP3000G-T

    Product Name

    AX3000 Wi-Fi 6 Three-in-one XPON ONT

    Product Description

    1*XPON+ 4*GE+ Wi Fi 6 (AX3000)+ USB 3.0 + POTS+ CATV

    Accessories

    AC-DC power adaptor: DC12V/1.5A

  • Hardware Parameter

    Dimension
    •  200mm×156.8mm×32.33mm(L×W×H)
    Net weight
    • 350g
    Operating condition
    • Operating temp: -10 ~ +55°C
    • Operating humidity: 5 ~ 95% (non-condensed)
    Storing condition
    • Storing temp: -40 ~ +70°C
    • Storing humidity: 5 ~ 95% (non-condensed)
    Power adapter
    • DC 12V,1.5A, external AC-DC power adaptor
    Power supply
    • ≤12W

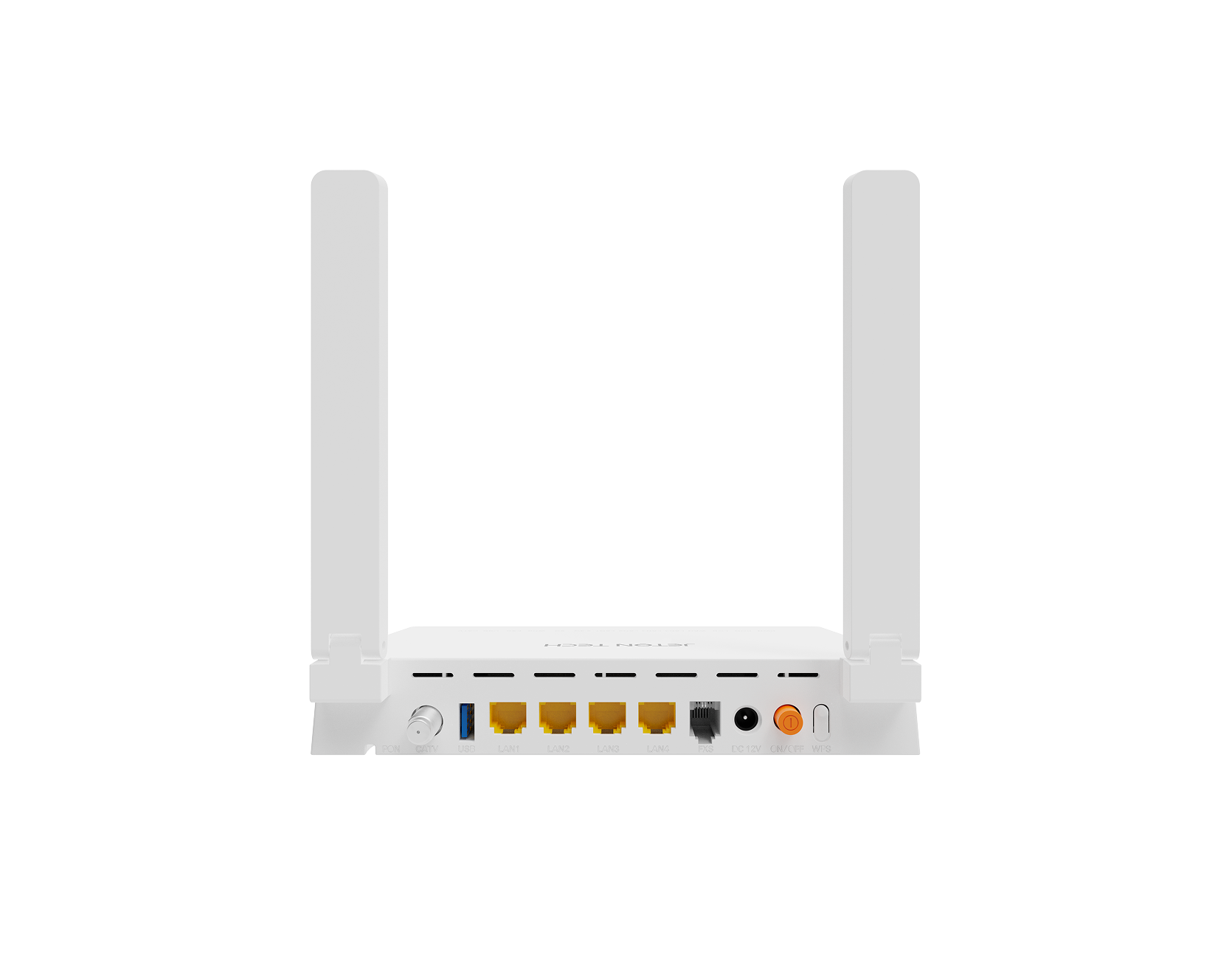

    Interface
    • 1*XPON+ 4*GE+ Wi Fi 6 (AX3000)+ USB 3.0 + 1*POTS+ CATV
    Indicators
    • PWR,PON,LOS,WAN,LAN1~4,2.4G,5G,WPS,FXS,USB,CATV

  • Interface Parameter

    PON Interface
    • 1XPON port (EPON PX20+ and GPON Class B+)
    • SC single mode, SC/APC connector
    • TX optical power: 0～+4dBm
    • RX sensitivity: -27dBm
    • Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    • Transmission distance: 20KM
    • Wavelength: TX 1310nm, RX1490nm
    Wi–Fi interface
    • Compliant with IEEE 802.11a/n/ac/ax Wi-Fi 6
    • Wi-Fi: Dual Band, 5GHz & 2.4GHz, rate up to 2976 Mbps,Multiple SSID
    • 5GHz up to 2402 Mbps, 2.4GHz up to 574 Mbps
    • TX power: 5GHz ＜20 dBm; 2.4GHz ＜20 dBm
    Antenna
    • 2.4GHz\5GHz2T2R,2*externalantennas
    User Interface
    • 4×GE, Auto-negotiation, RJ45 ports
    • 1 POTS RJ11 Connector
    • 1*USB 3.0
    CATV interface
    • Optical receiving wavelength: 1550±10nm
    • Optical input range: +2～-18dBm
    • Optical reflection loss: ≥40dB
    • RF frequency range: 47～1000MHz
    • RF output impedance: 75Ω
    • RF output level and AGC range:

    ≥81±2dBuv@+1～-10dBm

    ≥79±2dBuv@ 0～-11dBm

    ≥77±2dBuv@-1～-12dBm

    ≥75±2dBuv@-2～-13dBm

    ≥73±2dBuv@-3～-14dBm

    ≥71±2dBuv@-4～-15dBm



    • MER: ≥32dB(-14dBm optical input)

  • Function Data

    O&M
    • WEB/TELNET/OAM/OMCI/TR069
    Connect Mode
    • Support Routing,Bridge Mode
    Wireless
    • Integrated IEEE 802.11a/n/ac/ax 5GHz, 2.4GHz
    • Authentication: WEP-64/WEP-128/WPA/WPA2/WPA3
    • Support OFDMA
    • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM
    • Smart Connect for one Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band
    • Support Easymesh function
    Multicast
    • IGMP v1/v2/v3, IGMP snooping
    • MLD v1/v2 snooping
    VoIP
    • SIP and IMS SIP
    •  G.711a/G.711u/G.722/G.729 Codec
    • Echo cancellation,VAD/CNG,DTMF Relay
    • T.30/T.38 FAX
    • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
    • Line testing according to GR-909
    L2
    • 802.1p Cos,802.1Q VLAN
    L3
    • IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
    Security
    • Support Firewall
    • Support MAC Filtering Based on ACL/MAC /URL
    • Support Anti-DDOS
