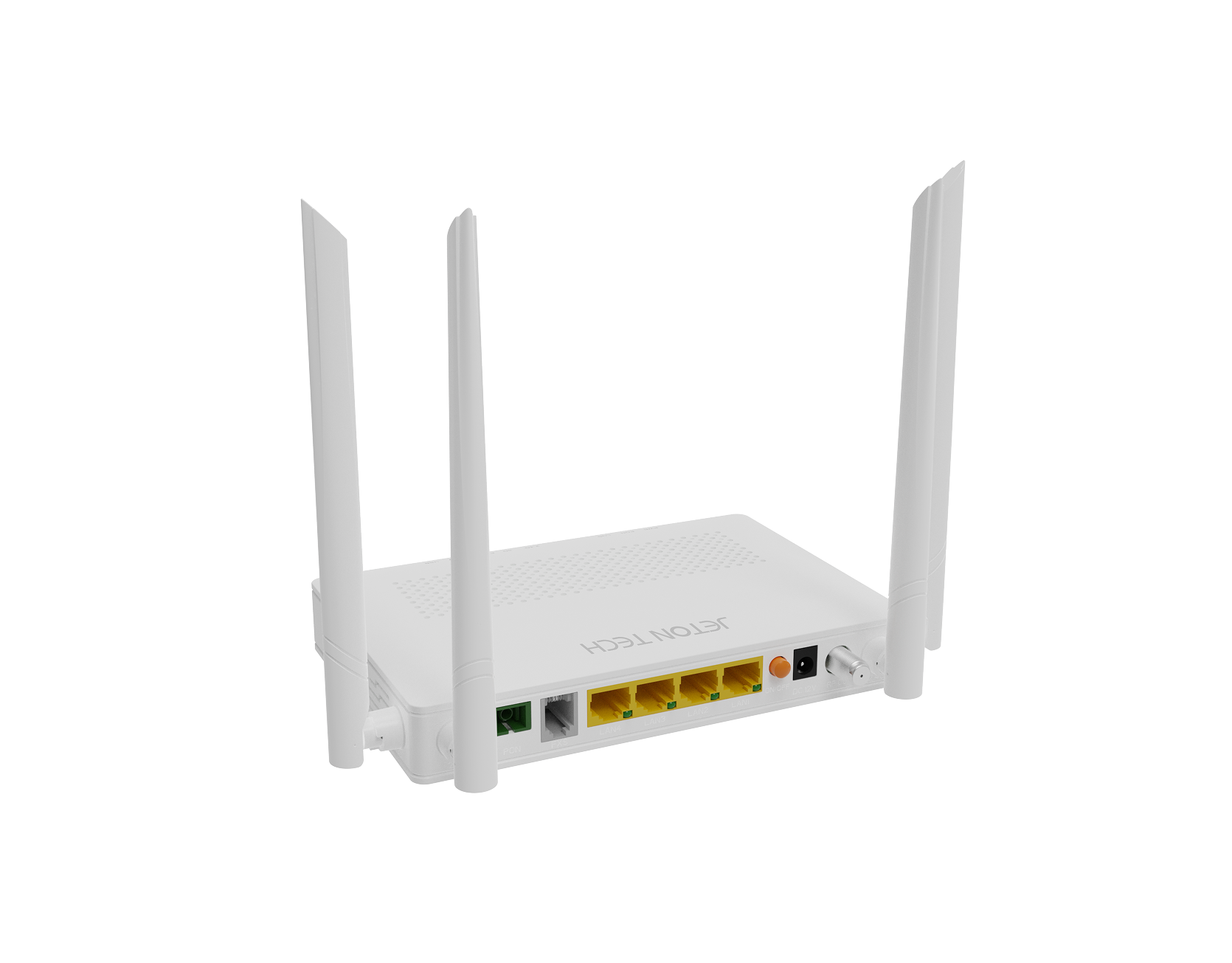

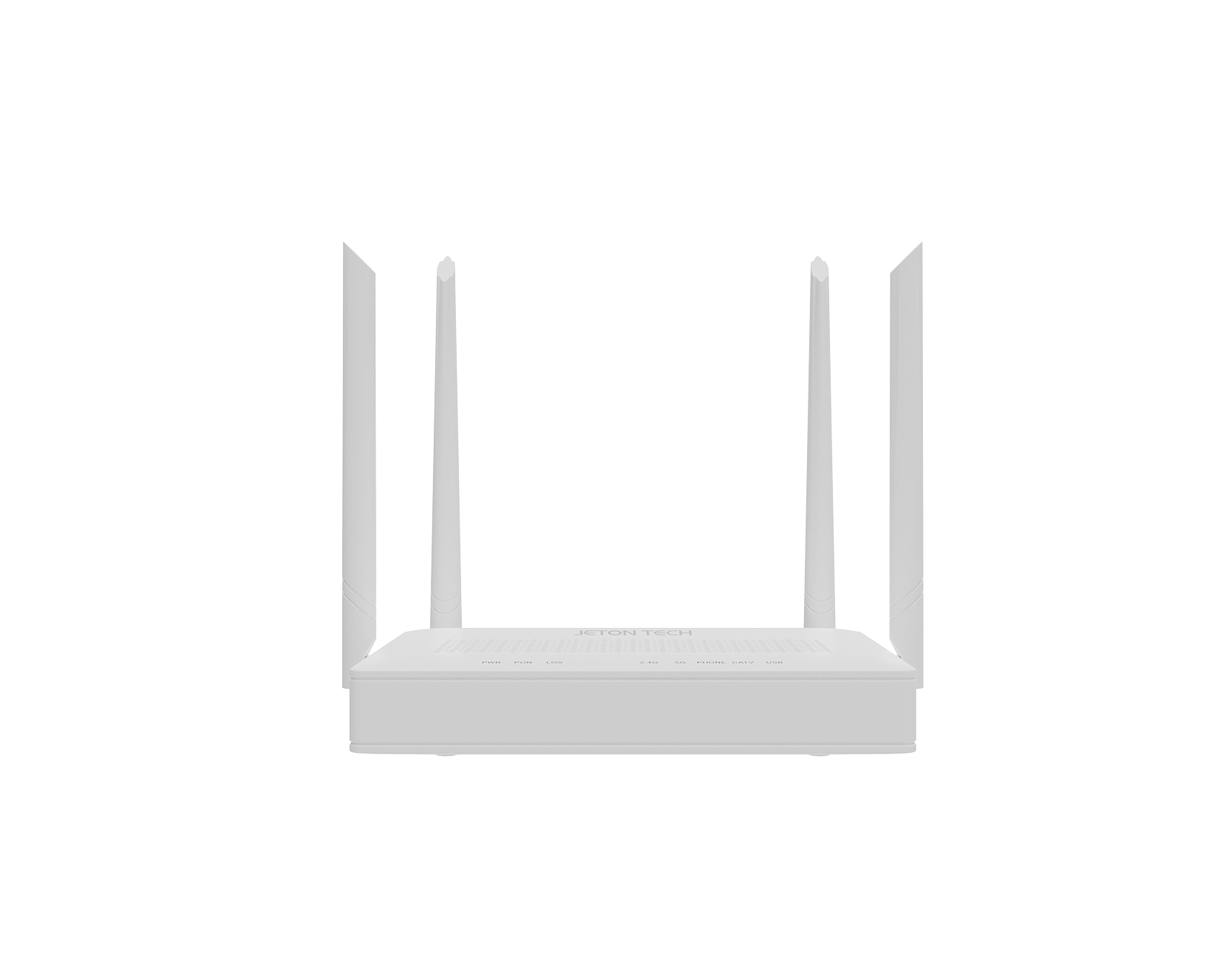

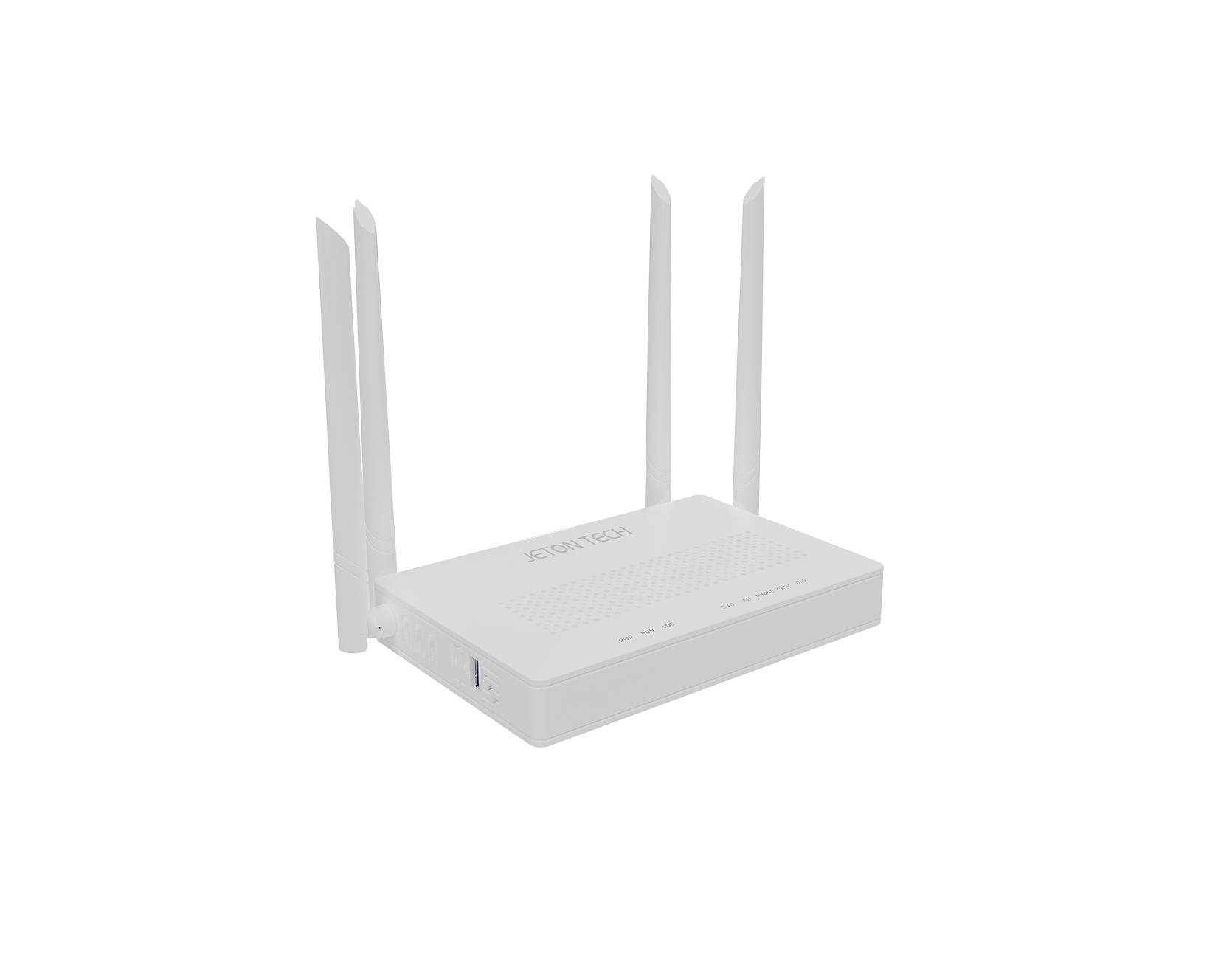

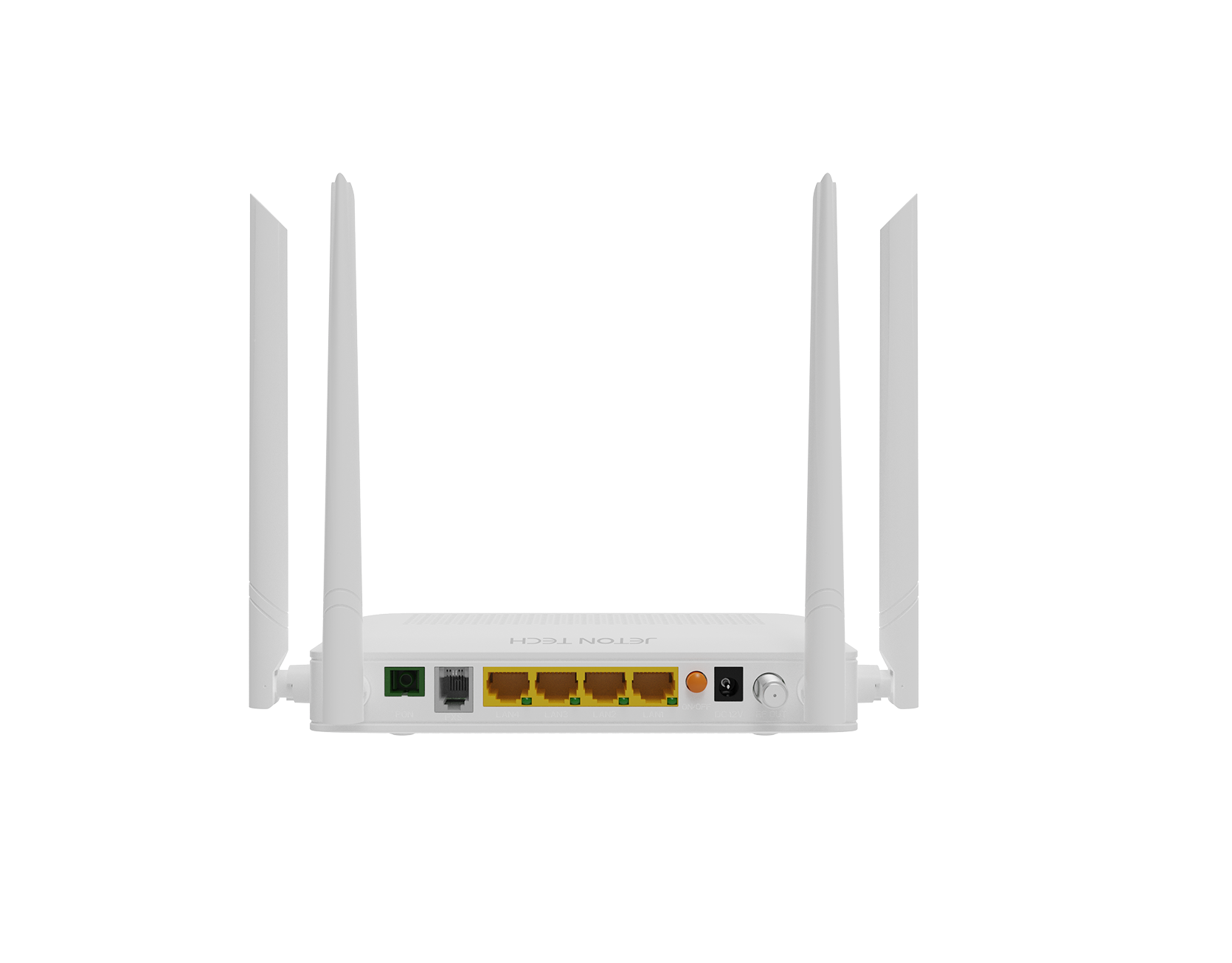

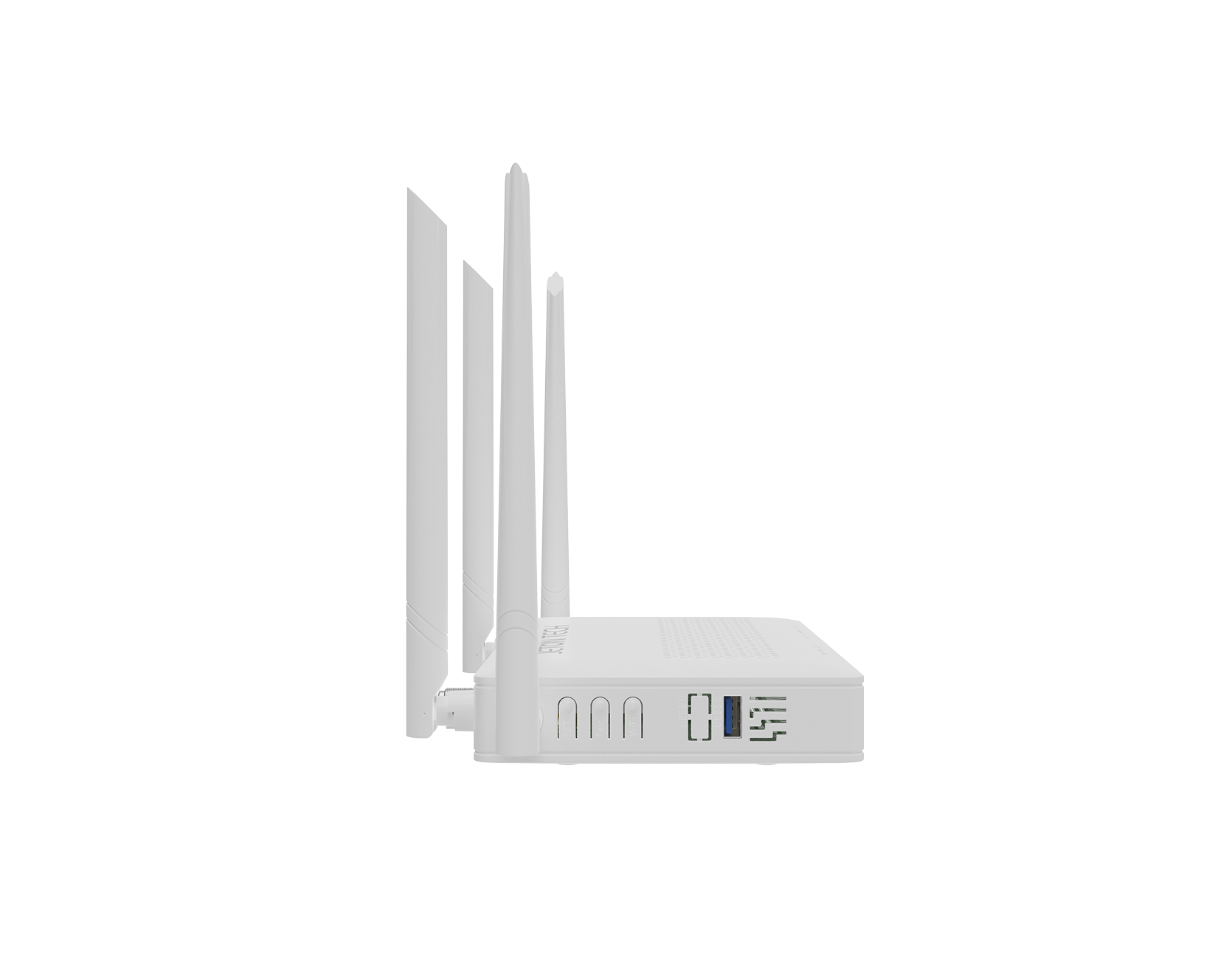

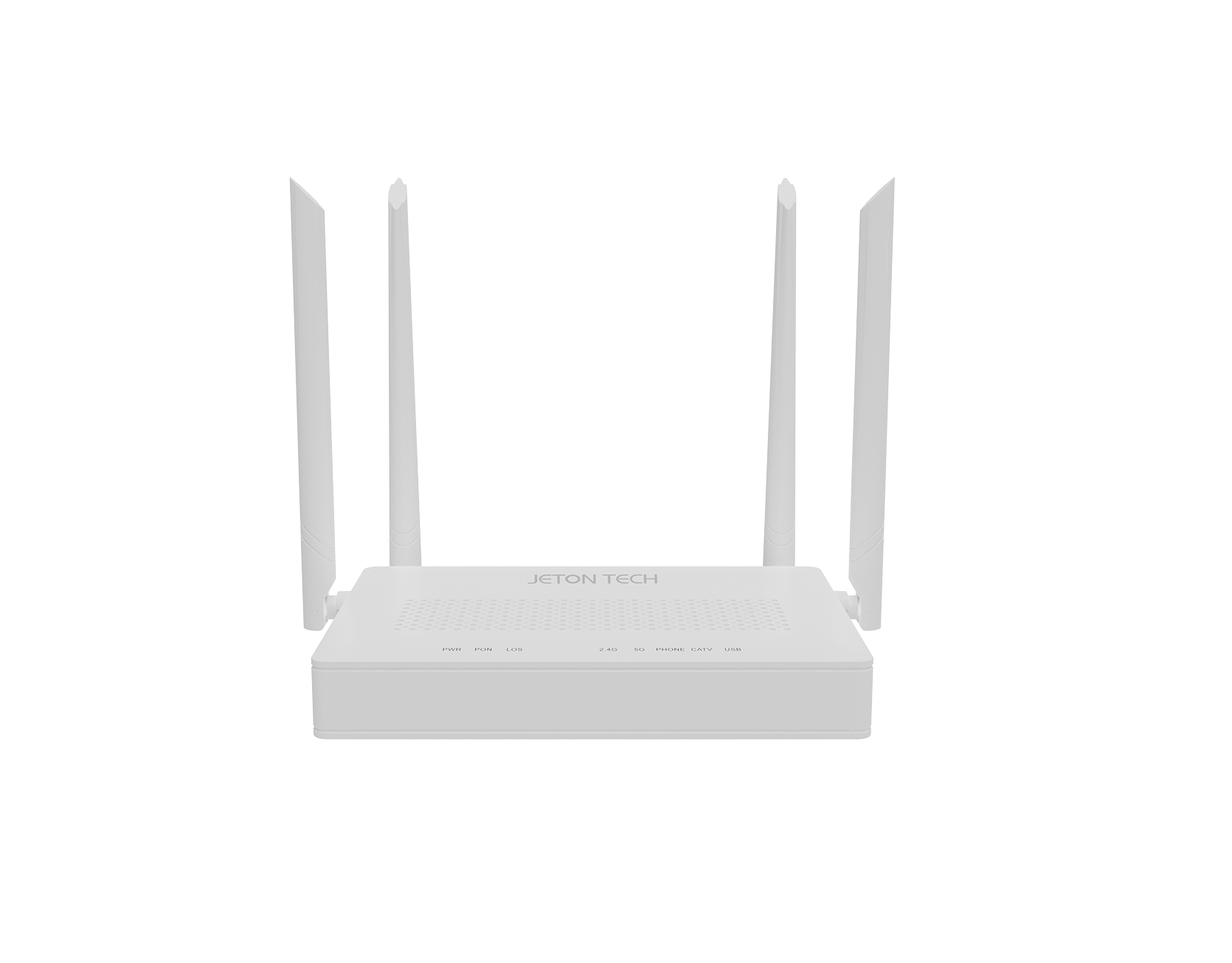

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

JP1200 T
JP1200

JP1200G-T

AC1200 Wi-Fi 5 XPON ONT

Product introduction

1*XPON+ 4*GE+ Wi-Fi 5 (AC1200) + USB 3.0 + POTS+ CATV

  • High Performance Solution: Supporting XPON dual-mode technology (EPON and GPON); Complies with international standards such as IEEE802.3ah and ITU-T G.984.
  • Dual Band Wi-Fi 5: Wi-Fi up to 1167 Mbps; 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
  • Four Gigabit LAN Ports: Each port is ten times faster than Fast Ethernet, enough to connect all your favorite devices.
  • EasyMesh Compatible: By connecting to EasyMesh compatible features, you can flexibly create a mesh network covering the entire house.
  • Triple-play  Services: Supports VoIP calls, smart CATV, and high-speed USB 3.0 at the same time.
  • Management Functions: WEB/TELNET/OAM/OMCI/TR069.
  • Product icon (29)
    High Performance Solution
  • Product icon (24)
    Dual Band Up to 1167 Mbps
  • Product icon (32)
    4× Gigabit LAN Ports
  • Product icon (35)
    EasyMesh
  • Product icon (15)
    Triple-play Services

Product datasheet

  • Description

    Model
    • JP1200G-T
    Product Name
    • AC1200 Wi-Fi 5 Three-in-one XPON ONT
    Product Description
    • 1*XPON+ 4*GE+ Wi Fi 5 (AC1200)+ USB 3.0 + POTS+ CATV
    Accessories
    • AC-DC power adaptor: DC12V/1.5A

  • Hardware Parameter

    Dimension
    • 178mm×120mm×30mm(L×W×H)
    Net weight
    • 420g
    Operating condition
    • Operating temp: -10 ~ +55°C
    • Operating humidity: 5 ~ 95% (non-condensed)
    Storing condition
    • Storing temp: -40 ~ +70°C
    • Storing humidity: 5 ~ 95% (non-condensed)
    Power adapter
    • DC 12V,1.5A, external AC-DC power adaptor
    Power supply
    • ≤12W
    Interface
    • 1*XPON+ 4*GE+ Wi Fi 5 (AC1200)+ USB 3.0 + 1*POTS+ CATV
    Indicators
    • PWR、LOS、PON、 LAN1～4、2.4G、5.0G、USB、PHONE

  • Interface Parameter

    PON Interface
    • XPON port (EPON PX20+ and GPON Class B+)
    • SC single mode, SC/UPC connector
    • TX optical power: 0～+4dBm
    • RX sensitivity: -27dBm
    • Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    • Transmission distance: 20KM
    • Wavelength: TX 1310nm, RX1490nm
    Wi–Fi interface
    • Compliant with IEEE802.11b/g/n/ac
    • WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID
    • 5GHz up to 867 Mbps, 2.4GHz up to 300 Mbps
    • TX power: 5GHz ＜20 dBm; 2.4GHz ＜20 dBm
    • RX power: 2.4GHz: HT40-MCS7 -72dBm; 5GHz:VHT80 MCS9 <-62dBm
    User Interface
    • 4×GE, Auto-negotiation, RJ45 ports
    • 1 POTS RJ11 Connector
    • 1*USB 3.0
    CATV interface
    • Optical receiving wavelength: 1550±10nm
    • Optical input range: +2～-18dBm
    • Optical reflection loss: ≥40dB
    • RF frequency range: 47～1000MHz
    • RF output impedance: 75Ω
    • RF output level and AGC range:

    ≥81±2dBuv@+1～-10dBm

    ≥79±2dBuv@ 0～-11dBm

    ≥77±2dBuv@-1～-12dBm

    ≥75±2dBuv@-2～-13dBm

    ≥73±2dBuv@-3～-14dBm

    ≥71±2dBuv@-4～-15dBm



    • MER: ≥32dB(-14dBm optical input)

  • Function Data

    O&M
    • OAM/OMCI, Telnet, WEB, TR069
    Connect Mode
    • Support bridge, router & bridge/router mixed mode
    QoS
    • Support 4 queues
    • Support SP, WRR, 802.1P and DSCP
    Data Service Functions
    • Full speed non-blocking switching
    • 2K MAC address table
    • 8 full range VLAN ID
    • Support VLAN tag, untag, transparent, trunk, translation mode
    • ntegrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
    • Support auto polarity detection of Ethernet ports (AUTO MDIX)
    • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
    Wireless
    • Integrated IEEE 802.11b/g/n/ac
    • Authentication: WEP/WPA-PSK(TKIP)/WPA2-PSK(AES)
    • Modulation type: DSSS, CCK and OFDM
    • Encoding scheme:BPSK,QPSK,16QAM and 64QAM,256QAM
    • Support Easymesh function
    VoIP
    • SIP and IMS SIP
    • G.711a/G.711u/G.722/G.729 Codec
    • Echo cancellation,VAD/CNG,DTMF Relay
    • T.30/T.38 FAX
    • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
    • Line testing according to GR-909
    L3
    •  IPv4, IPv6 and IPv4/IPv6 dual stack
    • DHCP/PPPOE/Static
    • Static route, DHCP Server
    • NAT/DMZ/DDNS/Virtual Server
    Security
    • Support Firewall
    • Support Mac filter Based on MAC or URL
    • Support ACL
