AX3000

Jeton AX3000 Core

Product introduction

Lightning Edition AX3000

New Generation Dual Band Wi-Fi 6: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Support All Protocols: AmneziaWG 3.1/3.0, AmneziaWG 2.0, WireGuard, OpenVPN, L2TP, IPsec, and PPTP. Configuration is completed via the web interface in minutes, eliminating the complexities of OpenWRT.
Dual-Core Ultra CPU: Combined with 256MB RAM, delivers ultra-fast network performance and quick response.
Connect Numerous Devices: Powered by OFDMA and BSS Coloring, delivers up to 4× greater network efficiency.
Extra High-Power Amplifier: Extra 2× High-Power FEM amplifier for Stronger Signal and Maximized Coverage.
EasyMesh Compatible: Flexible creation of Mesh network for whole-home coverage by connecting to EasyMesh compatible router.
WPA3 Wi-Fi Security: Stay protected with WPA3, the latest Wi-Fi security standard.

Wi-Fi Up to 3000 Mbps
AmneziaWG 3.1/3.0, WireGuard & OpenVPN
Stronger Signal Maximized Coverage
Dual-core Ultra CPU
Connect Numerous Devices

Product datasheet

WIRELESS
Standards and Protocols
Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds
Dual Band AX3000

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi Range
4× Fixed High-Performance Antennas

?

Multiple antennas form signal enhancement array to cover larger area

Beamforming

?

Focus wireless signal strength to clients to extend Wi-Fi range

Built-in FEM and Extra 2× High Power FEM

?

Increase transmission power and enhance signal coverage
Wi-Fi Capacity
2×2 MU-MIMO

?

Communicate with multiple MU-MIMO clients simultaneously

4× Streams

?

Connect your devices to more bandwidth

Airtime Fairness

?

Improve network efficiency by limiting overuse

DFS

?

Access an extra band to reduce congestion

LDPC

?

Improve the fault tolerance and reliability of data transmission
Wi-Fi Enhanced Capacity
160MHz

?

Expand bandwidth to 160MHz, providing a larger data transmission channel

OFDMA

?

Communicate with multiple Wi-Fi 6 clients simultaneously

BSS Coloring

?

Reduce co-channel interference and improve transmission stability

Longer Symbol

?

Improve connection stability over long distances or in complex environments
Working Modes
Router Mode

Access Point Mode (Slave Router in Mesh Mode)
SECURITY
Wi-Fi Encryption
WPA3

WPA2/WPA3

WPA2

WPA/WPA2
Network Security
HomeGuard Security

SPI Firewall

Intrusion Prevention

DDoS Protection

Malicious Site Blocking

Access Control

IP & MAC Binding

Real-Time IoT Protection

Network Scanning

Application Layer Gateway

Smart Diagnostics
Guest Network
1× 5 GHz Guest Network

1× 2.4 GHz Guest Network
VPN Client
AmneziaWG 2.0/1.5/1.0

WireGuard

OpenVPN

IPsec

L2TP

PPTP
VPN Server
AmneziaWG 2.0/1.5/1.0

WireGuard

OpenVPN

IPsec
HARDWARE
Chips
Ultra Dual Core
DDR/RAM
256M
Flash/ROM
128M

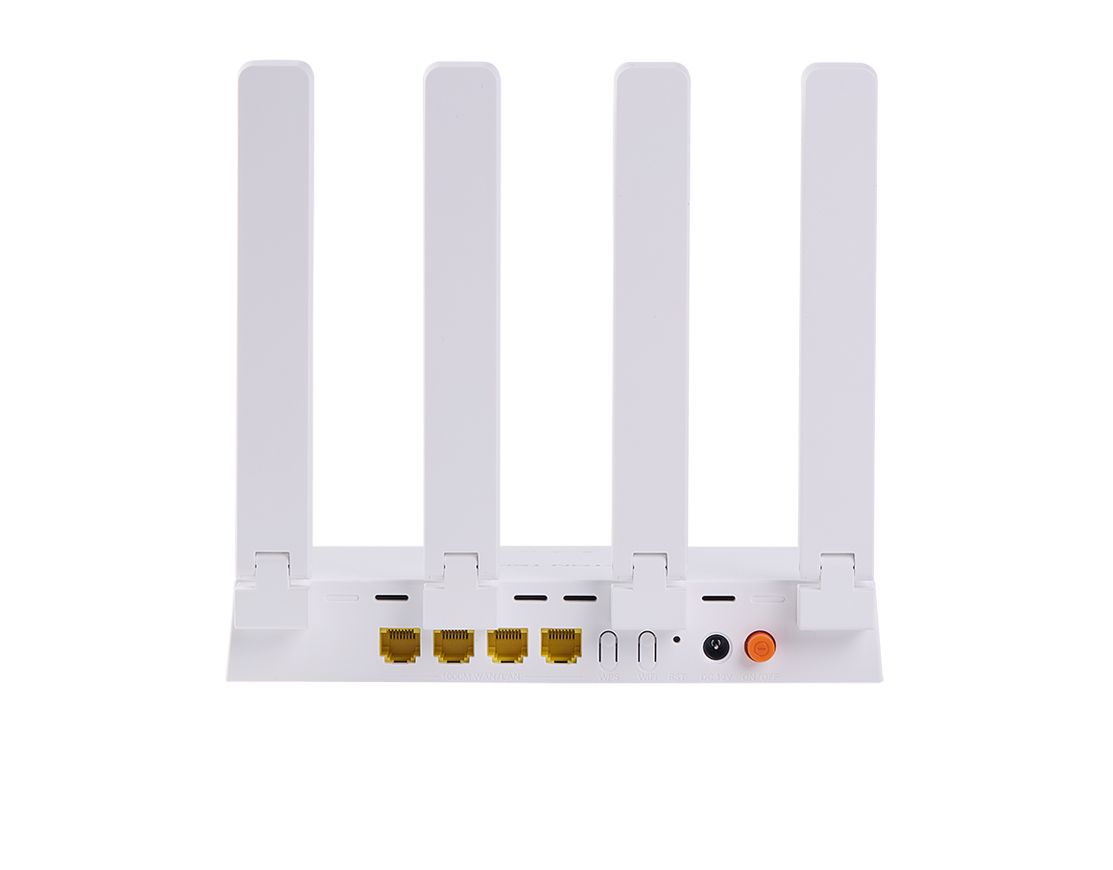

Ethernet Ports
4× Gigabit Adaptive WAN / LAN Ports
Buttons
WPS, Wi-Fi On/Off, Reset, Power On/Off

DCin
Power
12V/ 1A
SOFTWARE
Easy Mesy
OneMesh Supported

?

Support up to 10 JETON TECH mesh routers through WPS/APP/wired connection
Quality of Service

Intelligent Acceleration by Device
IPTV
IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN
Parental Controls
Custom Profiles

Access time control

Start/End Time

Week time

URL Filter
TWT power saving
Smarter Energy Saving with Target Wake Time
Signal Strength Control
Extra Mode

Standard Mode

Sleeping Mode
Protocols
IPv4

IPv6
WAN Types
Dynamic IP

Static IP

PPPoE
NAT Forwarding
Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP
DHCP
Address Reservation

DHCP Client List

Server
DDNS
Supported
Cloud Service
Auto Firmware Upgrade

Local cloud management in Russia
Management Features
Cloud Remote Control and Local Control

JetNet App

Web Page
TEST DATA
Wi-Fi Transmission Power
< 20 dBm, < 100 mW
Wi-Fi Reception Sensitivity
2.4 GHz

?

11ac VHT20_MCS0: -96 dBm
11ac VHT20_MCS8: -73 dB
11ac VHT40_MCS0: -93 dBm
11ac VHT40_MCS9: -68 dB
11ax HE20_MCS0: -96 dBm
11ax HE20_MCS11: -66 dBm
11ax HE40_MCS0: -93 dBm
11ax HE40_MCS11: -63 dBm

5 GHz

?

11ac VHT20_MCS0: -95 dBm
11ac VHT20_MCS8: -72 dBm
11ac VHT40_MCS0: -93 dBm
11ac VHT40_MCS9: -67 dBm
11ac VHT80_MCS0: –89 dBm
11ac VHT80_MCS9: –64 dBm
11ac VHT160_MCS0: –87 dBm
11ac VHT160_MCS9: –61 dBm
11ax HE20_MCS0: –96 dBm
11ax HE20_MCS11: –66 dBm
11ax HE40_MCS0: –93 dBm
11ax HE40_MCS11: –63 dBm
11ax HE80_MCS0: –91 dBm
11ax HE80_MCS11: –61 dBm
11ax HE160_MCS0: –87 dBm
11ax HE160_MCS11: –58 dBm
OTHER
Certifications

EAC, RoHS

Languages

Russian, English, Chinese

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Environment

Working Temperature: -30~+60°C

Working Humidity:5~95%(non-condensing)

Storing Temperature: -40~+85°C

Storing Humidity:5~ 95% (non-condensing)

Dimensions (W×D×H)

199.91×156.8×43.52 mm
Package Content
Wi-Fi Router Jeton AX3000 Core

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

High-Speed Wi-Fi Performance

Enjoy ultra-fast dual-band speeds — 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
With 160 MHz bandwidth and 1024-QAM, performance on 5 GHz is 2× faster than Wi-Fi 6 AX1500 and 3× faster than Wi-Fi 5 AC1200.

Wi-Fi 5 AC1200 / Wi-Fi 6 AX1500 / Wi-Fi 6 AX3000Core

Support All Protocols

Support AmneziaWG 3.1/3.0, AmneziaWG 2.0, WireGuard, OpenVPN, L2TP, IPsec, and PPTP.
Configuration is completed via the web interface in minutes, eliminating the complexities of OpenWRT.

Dual-Core Ultra CPU

The dual-core Ultra CPU, combined with 256MB RAM, delivers blazing-fast network performance and rapid response times.
Even under multi-device and multi-tasking conditions, it ensures ultra-high stability and ultra-low latency.

Extra High-Power Amplifier for Stronger Signal and Maximized Coverage

4× high-performance antennas, and beam-forming technology combine to provide strong signal
Extra 2× High-Power FEM amplifier extend coverage up to 230m

Connect Numerous Devices with Ultra-low Latency

Powered by OFDMA, MU-MIMO, and BSS Coloring technologies, the AX3000 core delivers up to 4× greater network efficiency.
Enjoy up to 75% lower latency, even with dozens of connected devi-ces—perfect for high-density smart homes or multitasking househ-olds.
