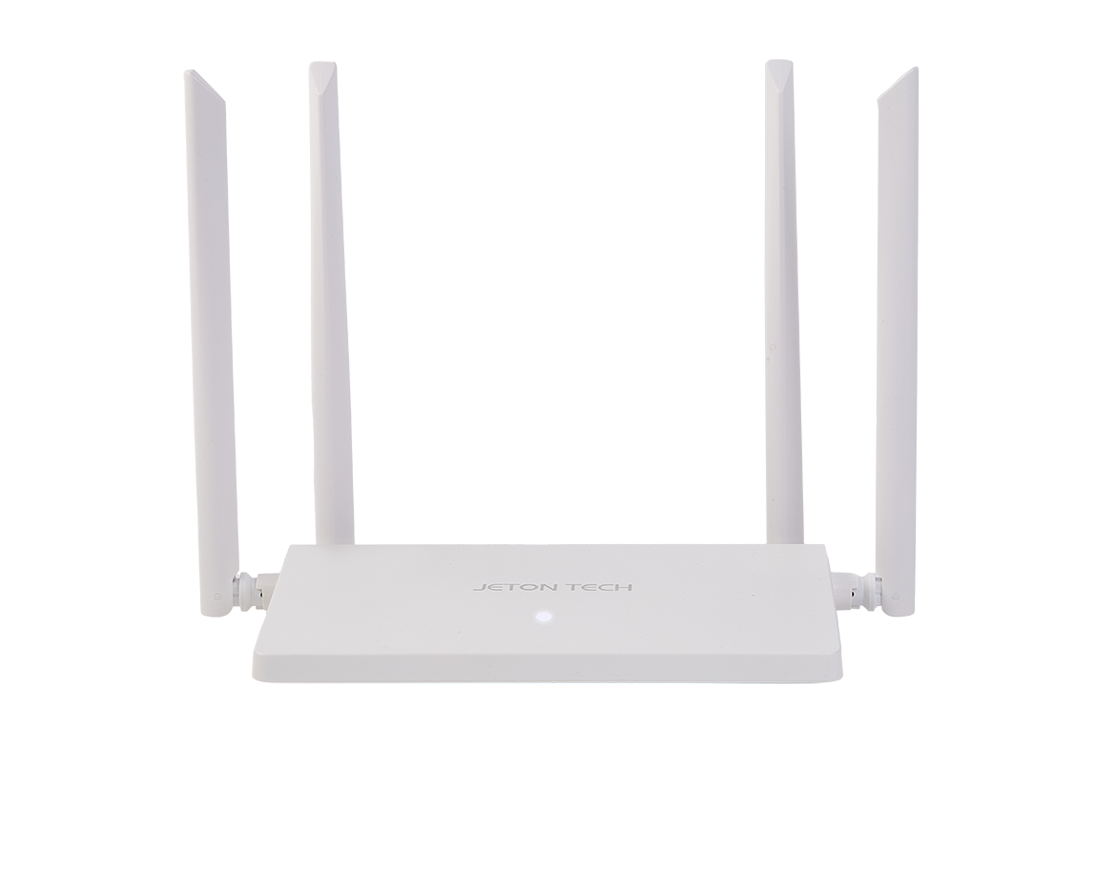

Ax3000 7
Amnezia

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

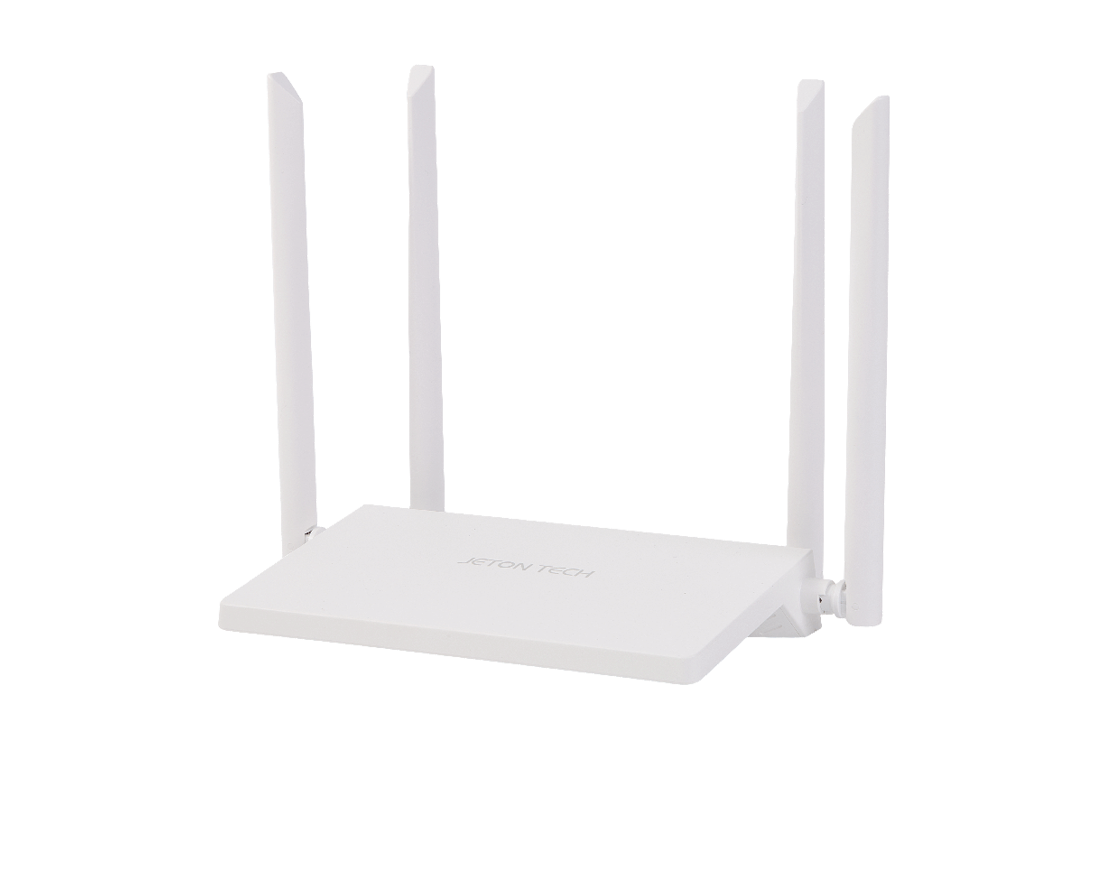

Ax3000 air 2
AX3000

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

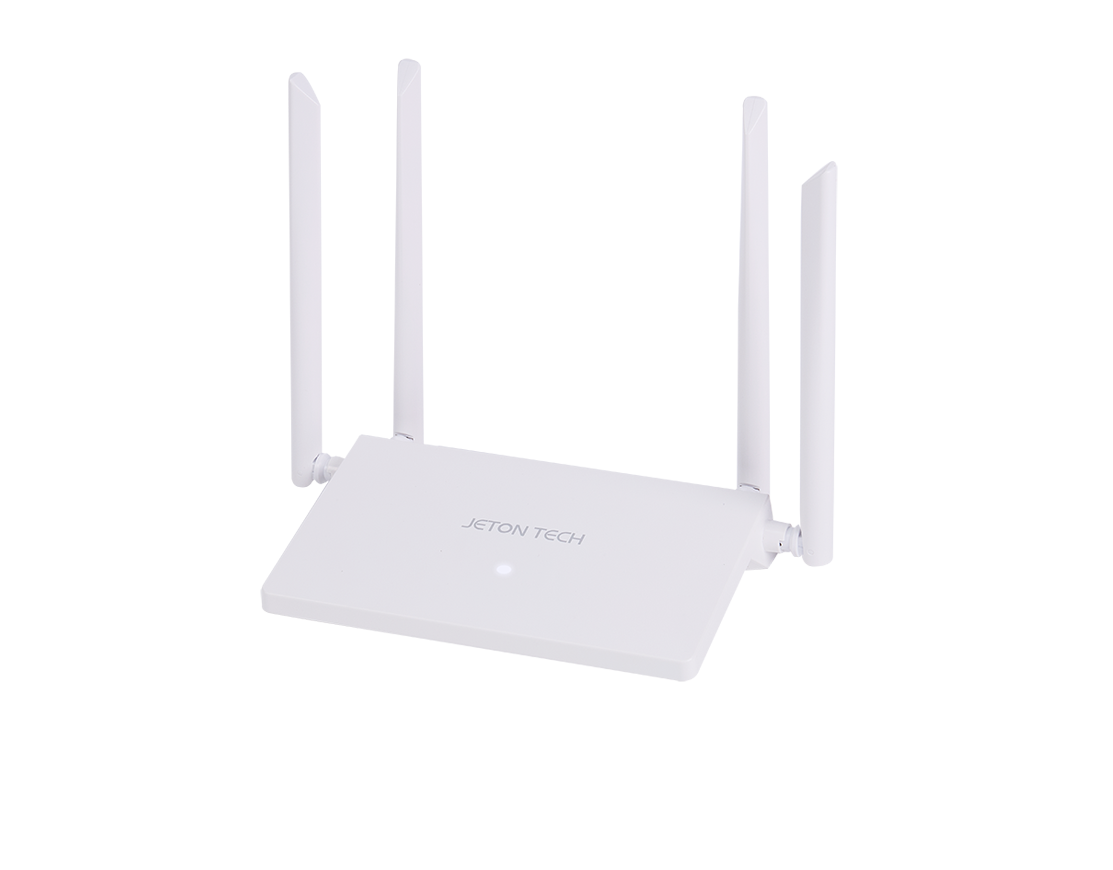

Ax3000 8
Amnezia

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

Ax3000 9
AX3000

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

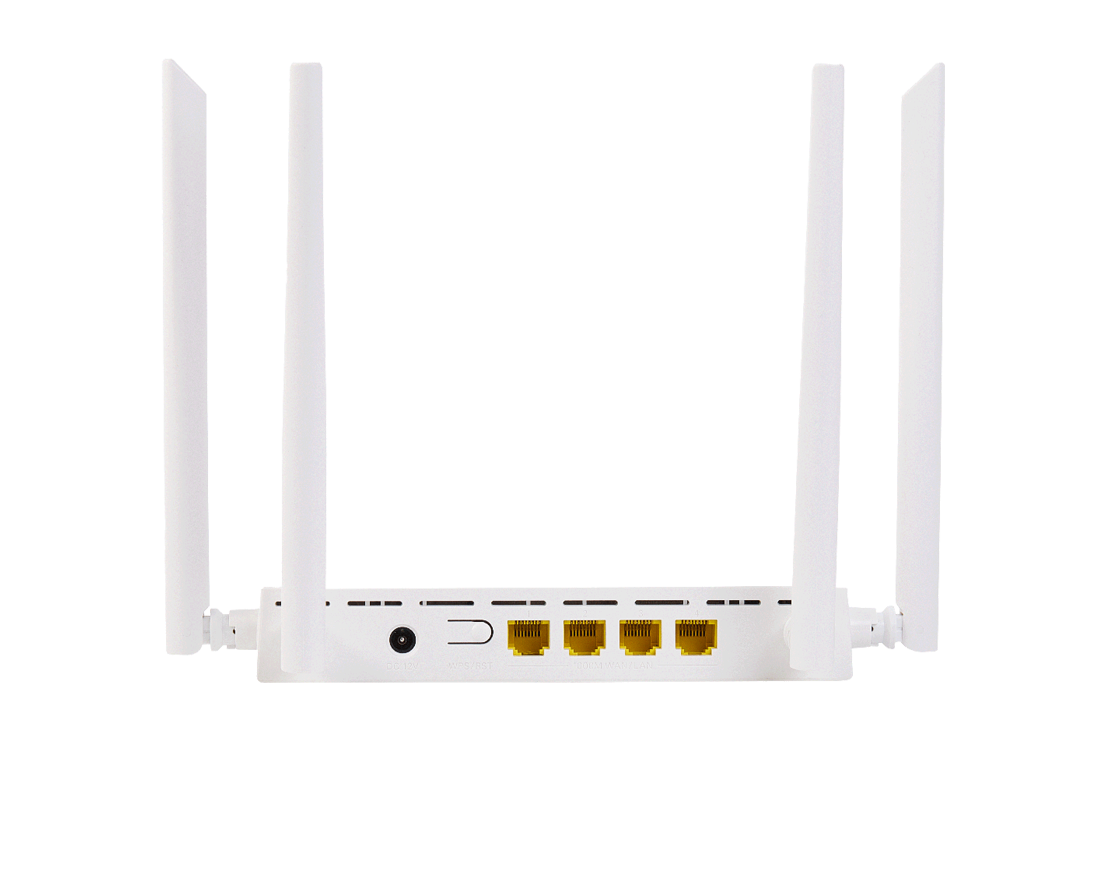

Ax3000 air 4
Amnezia

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

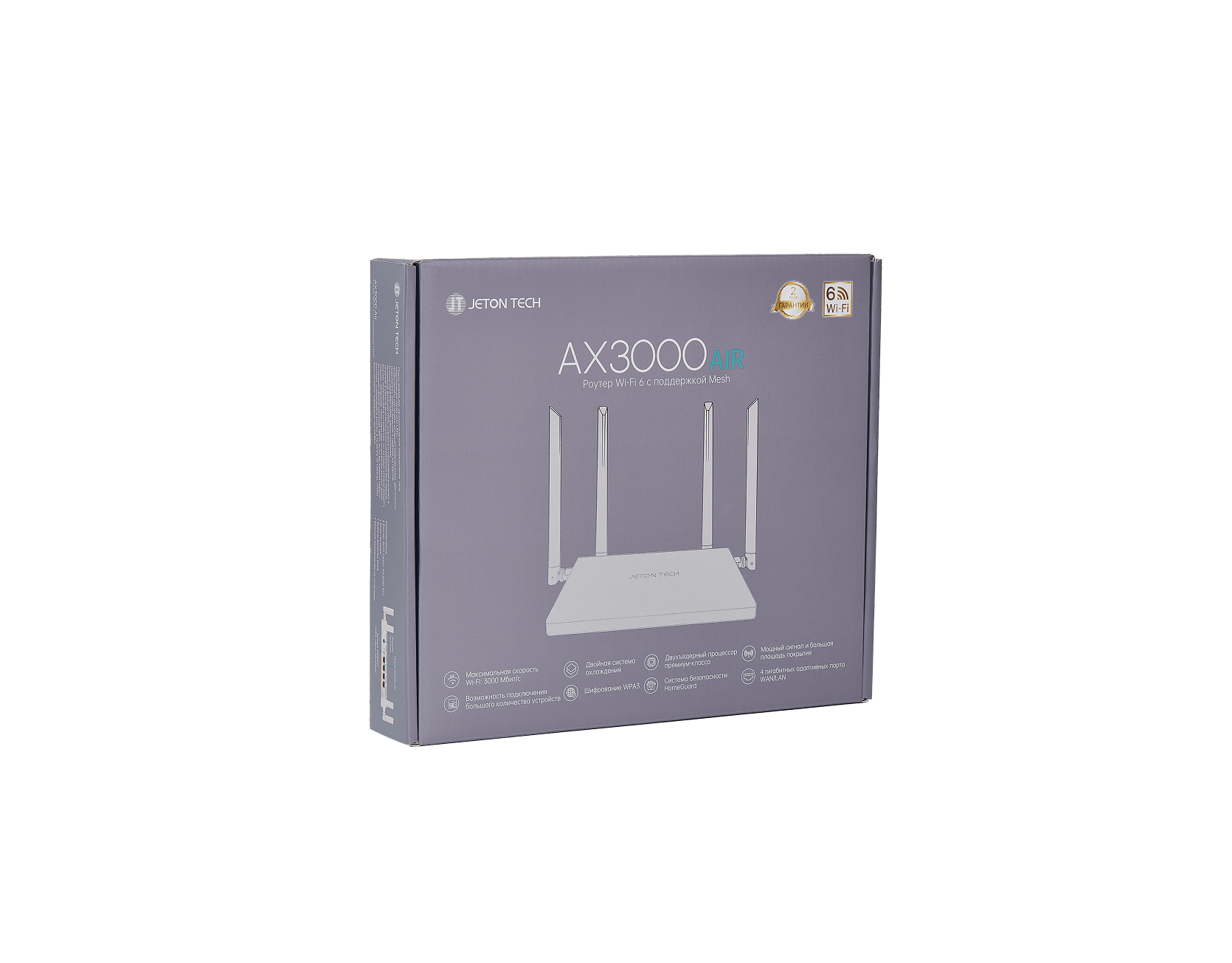

AX3000 Air bz1
AX3000

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

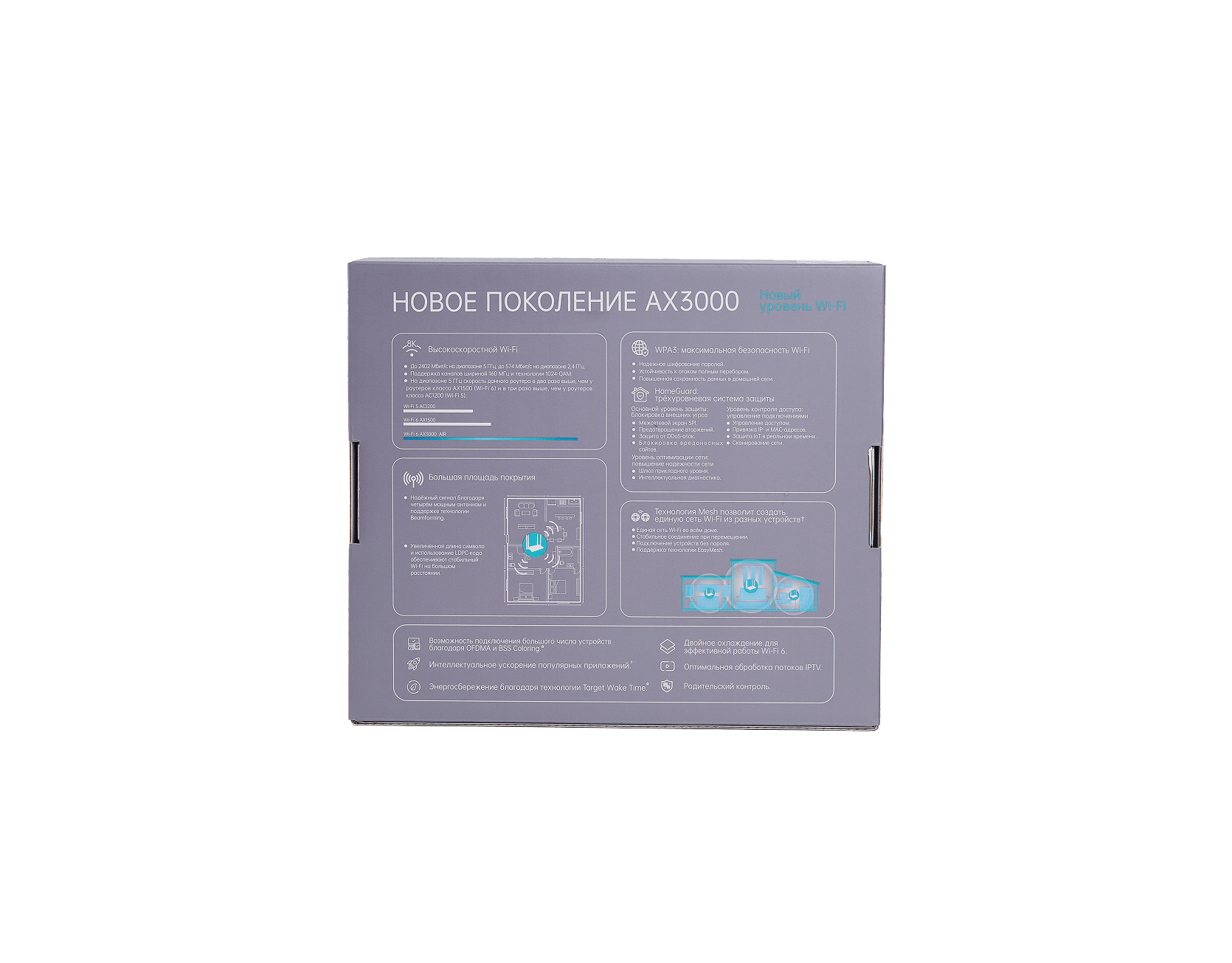

AX3000 Air bz2
Amnezia

AX3000 Air

Dual Band Gigabit Wi-Fi 6 Mesh Router

Product introduction

New Generation AX3000

  • New Generation Dual Band Wi-Fi 6: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • Support All Protocols: AmneziaWG 2.0, AmneziaWG 1.5/1.0, WireGuard, OpenVPN, L2TP, IPsec, and PPTP. Configuration is completed via the web interface in minutes, eliminating the complexities of OpenWRT.
  • Connect Numerous Devices: Powered by OFDMA and BSS Coloring, delivers up to 4× greater network efficiency.
  • Enhanced Anti-interference Tech: 4× high-performance antennas  and beam-forming technology combine to provide stronger signal and wider coverage.
  • 4× Gigabit Adaptive WAN/LAN Ports: No need to distinguish between WAN and LAN—simply plug in the network cable to any port and start configuring the Internet.
  • EasyMesh Compatible: Flexible creation of Mesh network for whole-home coverage by connecting to EasyMesh compatible router.
  • WPA3 Wi-Fi Security:  Stay protected with WPA3, the latest Wi-Fi security standard.
  • Product icon (2)
    Wi-Fi Up to 3000 Mbps
  • Product icon (12)
    AmneziaWG, WireGuard & OpenVPN
  • Product icon (3)
    Stronger Signal Wider Coverage
  • Dual-Core Premium CPU
  • Product icon (15)
    Connect Numerous Devices

Product datasheet

  • WIRELESS

    Standards and Protocols

    Wi-Fi 6



    • IEEE 802.11ax/ac/n/a 5 GHz
    • IEEE 802.11ax/n/b/g 2.4 GHz
    Wi-Fi Speeds

    Dual Band AX3000



    • 5 GHz: 2402 Mbps (802.11ax, HE160)
    • 2.4 GHz: 574 Mbps (802.11ax)
    Wi-Fi Range

    • 4× Fixed High-Performance Antennas

      ?

      Multiple antennas form signal enhancement array to cover larger area

    • Beamforming

      ?

      Focus wireless signal strength to clients to extend Wi-Fi range

    • Built-in High Power FEM

      ?

      Increase transmission power and enhance signal coverage
    Wi-Fi Capacity

    • 2×2 MU-MIMO

      ?

      Communicate with multiple MU-MIMO clients simultaneously

    • 4× Streams

      ?

      Connect your devices to more bandwidth

    • Airtime Fairness

      ?

      Improve network efficiency by limiting overuse

    • DFS

      ?

      Access an extra band to reduce congestion

    • LDPC

      ?

      Improve the fault tolerance and reliability of data transmission
    Wi-Fi Enhanced Capacity

    • 160MHz

      ?

      Expand bandwidth to 160MHz, providing a larger data transmission channel

    • OFDMA

      ?

      Communicate with multiple Wi-Fi 6 clients simultaneously

    • BSS Coloring

      ?

      Reduce co-channel interference and improve transmission stability

    • Longer Symbol

      ?

      Improve connection stability over long distances or in complex environments
    Working Modes
    • Router Mode
    • Access Point Mode (Slave Router in Mesh Mode)

  • SECURITY

    Wi-Fi Encryption
    • WPA3
    • WPA2/WPA3
    • WPA2
    • WPA/WPA2
    Network Security

    HomeGuard Security



    • SPI Firewall
    • Intrusion Prevention
    • DDoS Protection
    • Malicious Site Blocking
    • Access Control
    • IP & MAC Binding
    • Real-Time IoT Protection
    • Network Scanning
    • Application Layer Gateway
    • Smart Diagnostics
    Guest Network
    • 1× 5 GHz Guest Network
    • 1× 2.4 GHz Guest Network
    VPN Client
    • AmneziaWG 2.0/1.5/1.0
    • WireGuard
    • OpenVPN
    • IPsec
    • L2TP
    • PPTP
    VPN Server
    • AmneziaWG 2.0/1.5/1.0
    • WireGuard
    • OpenVPN
    • IPsec

  • HARDWARE

    Chips
    • Premium Dual Core
    DDR/RAM
    • 128M
    Flash/ROM
    • 128M→ 64M (New Version)
    Ethernet Ports
    • 4× Gigabit Adaptive WAN / LAN Ports
    Buttons
    • WPS/Reset
    • DCin
    Power
    • 12V/ 1A

  • SOFTWARE

    Easy Mesy

    • OneMesh Supported

      ?

      Support up to 10 JETON TECH mesh routers through WPS/APP/wired connection
    Quality of Service

    Intelligent Acceleration by Device

    IPTV
    • IGMP Proxy
    • IGMP Snooping
    • Bridge
    • Tag VLAN
    Parental Controls
    • Custom Profiles
    • Access time control
    • Start/End Time
    • Week time
    • URL Filter
    TWT power saving
    • Smarter Energy Saving with Target Wake Time
    Signal Strength Control
    • Extra Mode
    • Standard Mode
    • Sleeping Mode
    Protocols
    • IPv4
    • IPv6
    WAN Types
    • Dynamic IP
    • Static IP
    • PPPoE
    NAT Forwarding
    • Virtual Servers
    • Port Forwarding
    • Port Triggering
    • DMZ
    • UPnP
    DHCP
    • Address Reservation
    • DHCP Client List
    • Server
    DDNS
    • Supported
    Cloud Service
    • Auto Firmware Upgrade
    • Local cloud management in Russia
    Management Features

    Cloud Remote Control and Local Control



    • JetNet App
    • Web Page

  • TEST DATA

    Wi-Fi Transmission Power
    • < 20 dBm, < 100 mW
    Wi-Fi Reception Sensitivity

    • 2.4 GHz

      ?

      11ac VHT20_MCS0: -96 dBm

      11ac VHT20_MCS8: -73 dB

      11ac VHT40_MCS0: -93 dBm

      11ac VHT40_MCS9: -68 dB

      11ax HE20_MCS0: -96 dBm

      11ax HE20_MCS11: -66 dBm

      11ax HE40_MCS0: -93 dBm

      11ax HE40_MCS11: -63 dBm

    • 5 GHz

      ?

      11ac VHT20_MCS0: -95 dBm

      11ac VHT20_MCS8: -72 dBm

      11ac VHT40_MCS0: -93 dBm

      11ac VHT40_MCS9: -67 dBm

      11ac VHT80_MCS0: –89 dBm

      11ac VHT80_MCS9: –64 dBm

      11ac VHT160_MCS0: –87 dBm

      11ac VHT160_MCS9: –61 dBm

      11ax HE20_MCS0: –96 dBm

      11ax HE20_MCS11: –66 dBm

      11ax HE40_MCS0: –93 dBm

      11ax HE40_MCS11: –63 dBm

      11ax HE80_MCS0: –91 dBm

      11ax HE80_MCS11: –61 dBm

      11ax HE160_MCS0: –87 dBm

      11ax HE160_MCS11: –58 dBm

  • OTHER

    Certifications
    • EAC, RoHS
    Languages
    • Russian, English, Chinese
    System Requirements

    Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

    Cable or DSL Modem (if needed)

    Subscription with an internet service provider (for internet access)

    Environment

    Working Temperature: -30~+60°C

    Working Humidity:5~95%(non-condensing)

    Storing Temperature: -40~+85°C

    Storing Humidity:5~ 95% (non-condensing)

    Dimensions (W×D×H)

    179.9 × 104.1 × 30.8 mm

    Package Content
    • Wi-Fi Router Jeton AX3000 Air
    • Power Adapter
    • RJ45 Ethernet Cable
    • Quick Installation Guide

Highlights

Highlight x1

High-Speed Wi-Fi Performance

Enjoy ultra-fast dual-band speeds — 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
With 160 MHz bandwidth and 1024-QAM, performance on 5 GHz is 2× faster than Wi-Fi 6 AX1500 and 3× faster than Wi-Fi 5 AC1200.

Wi-Fi 5 AC1200 / Wi-Fi 6 AX1500 / Wi-Fi 6 AX3000Air
Highlight x5

Connect Numerous Devices with Ultra-low Latency

Powered by OFDMA, MU-MIMO, and BSS Coloring technologies, the AX3000 core delivers up to 4× greater network efficiency.
Enjoy up to 75% lower latency, even with dozens of connected devi- ces—perfect for high-density smart homes or multitasking househ-olds.

Highlight x6

Support All Protocols

Support AmneziaWG 2.0, AmneziaWG 1.5/1.0, WireGuard, OpenVPN, L2TP, IPsec, and PPTP.
Configuration is completed via the web interface in minutes, eliminating the complexities of OpenWRT.

Highlight x3

Enhanced Anti-interference Tech for Stronger Signal &Wider Coverage

Equipped with 4 high-performance antennas and beamforming technology, the router delivers powerful signal coverage of up to 200 meters.
Longer OFDM symbols and LDPC error correction further enhance signal stability and resistance to interference, ensuring reliable connectivity even in complex environments.
