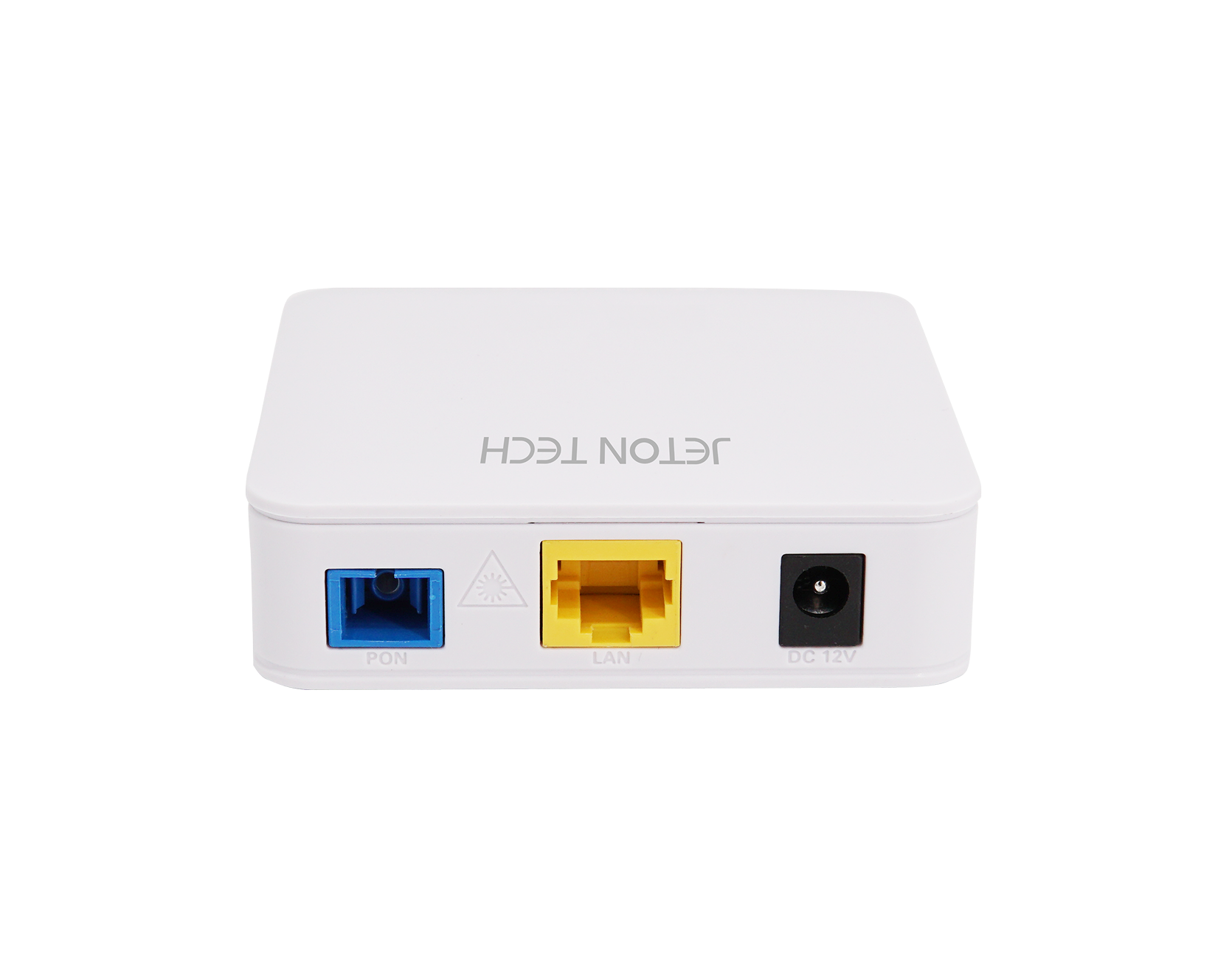

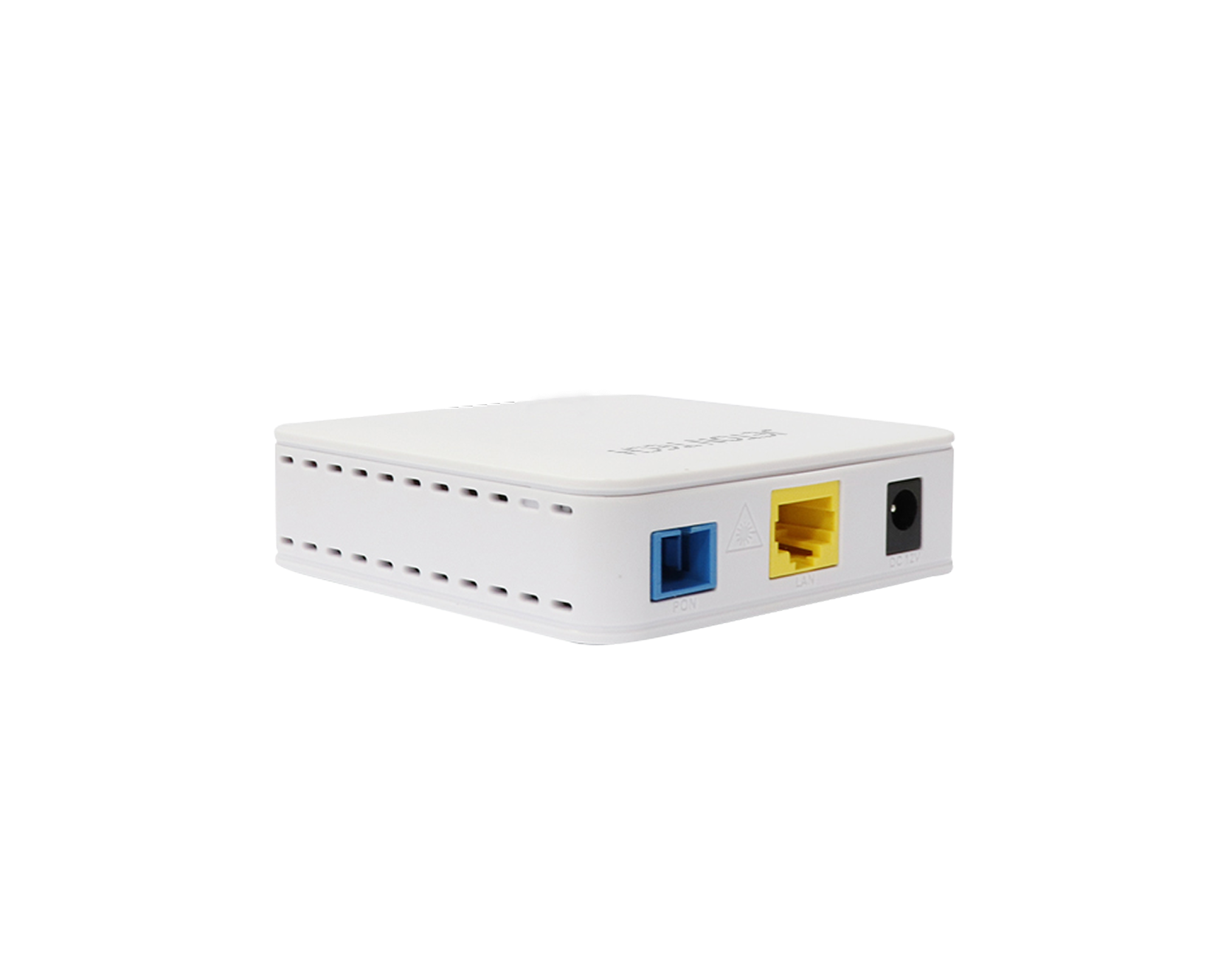

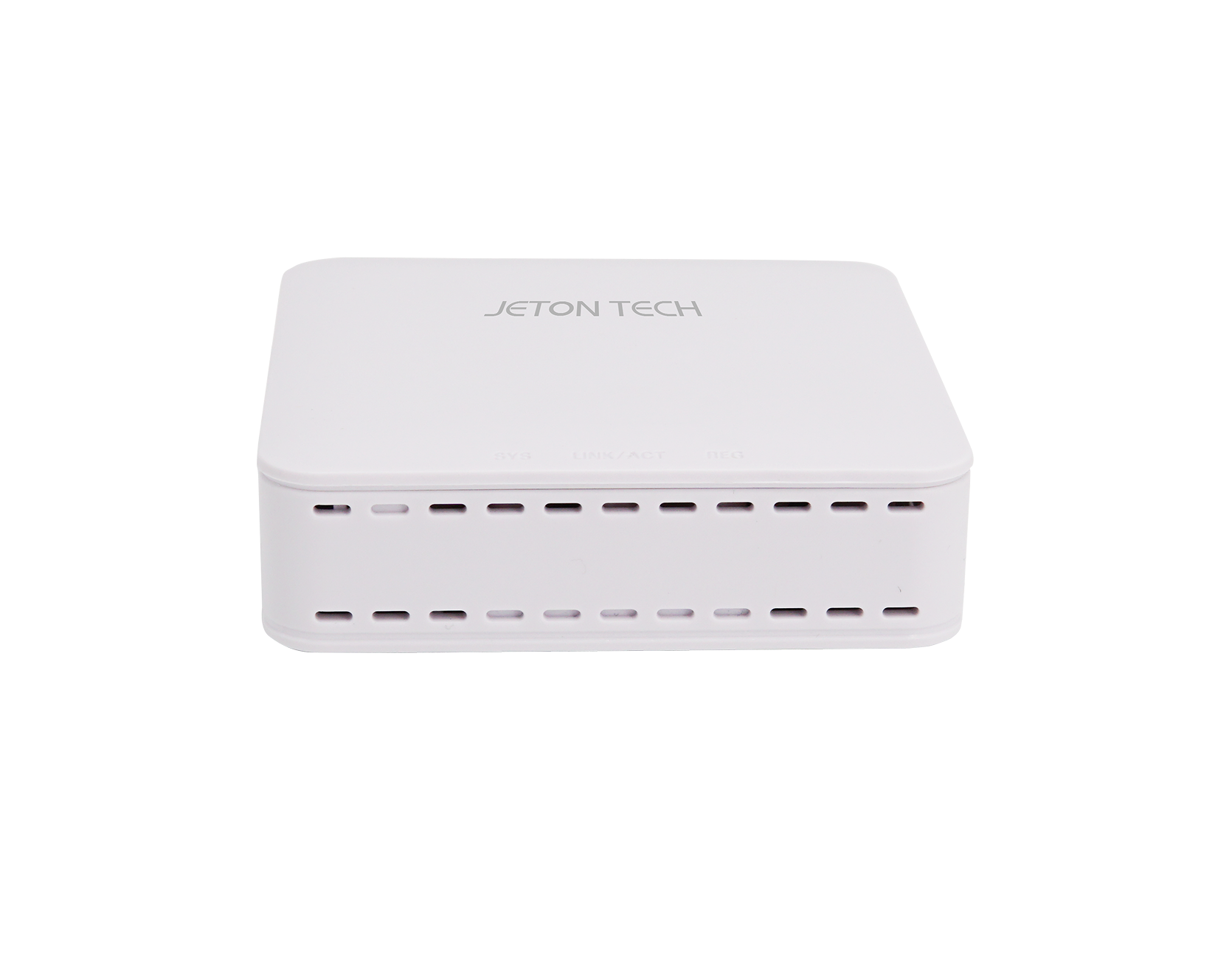

1-Port Gigabit XPON ONT

JP1X1G
JP1X1G

JP1X1G

1-Port Gigabit XPON ONT

JP1X1G
JP1X1G

JP1X1G

1-Port Gigabit XPON ONT

Product introduction

1*XPON+ 1*GE

  • XPON Dual Mode: Automatically Access to GPON/EPON. Downlink speeds up to 2.488 Gbps, uplink up to 1.244 Gbps.
  • Bridge Mode & Router Mode: Supports HGU/SFU feature for flexible network access.
  • Make Network More Secure: Firewall built-in chipset; Anti-DDOS; Filter based IP/MAC/White List/Black List etc.
  • Wide-Working-Temperature Designed: Working stably from -10℃ to 55℃, and the lowest working temperature tested in the lab is -25℃.
  • Ease of use: Quick and easy to install.
  • Management: Support WEB/TELNET/CLI/TR069.
  • Product icon (12)
    XPON Dual Mode
  • Product icon (32)
    Gigabit Lan Port
  • Product icon (13)
    Powerful Firewall
  • Product icon (11)
    Wide Working Temp -10℃～+55℃
  • Product icon (7)

Product datasheet

  • Description

    Model
    • JP1X1G
    Product Name
    • 1-Port Gigabit XPON ONT
    Product Description
    • 1*XPON+ 1*GE
    Accessories
    • AC-DC power adaptor: DC12V/0.5A

  • Hardware Parameter

    Dimension
    • 82mm×82mm×25mm(L×W×H)
    Net Weight
    • 85g
    Operating Condition
    •  Operating Temp: -10 ~ +55°C
    •  Operating Humidity: 5 ~ 95%(non-condensed)
    Storing Condition
    •  Storing temp: -40 ~ +70°C
    •  Storing humidity: 5 ~ 95%  (non-condensed)
    Power Adapter
    • DC 12V, 0.5A, external AC-DC power adaptor
    Power Supply
    • ≤4W
    Interface
    • 1*XPON+ 1*GE
    Indicators
    • SYS, LINK/ACT, REG

  • Interface parameter

    PON Interface
    •  1XPON port(EPON PX20+ and GPON Class B+)
    •  SC single mode, SC/UPC connector
    •  TX optical power: 0～+4dBm
    •  RX sensitivity: -27dBm
    •  Overload optical power: -3dBm(EPON) or -8dBm(GPON)
    •  Transmission distance: 20KM
    •  Wavelength: TX 1310nm, RX1490nm
    LAN Interface
    • 1*GE, Auto-negotiation RJ45 connectors

  • Function Data

    XPON Mode
    • Dual mode,Auto-access to EPON/GPON OLT
    Uplink Mode
    • Bridging and Routing Mode
    Abnormal Protection
    • Detecting Rogue ONU, Hardware Dying Gasp
    Firewall
    • DDOS, Filtering Based on ACL/MAC/URL

  • Product Feature

    Basic
    •  Support MPCP discover®ister
    •  Support authentication Mac/Loid/Mac+Loid
    •  Support Triple Churning
    •  Support DBA bandwidth
    •  Support auto-detecting, auto-configuration, and auto firmware upgrade
    •  Support SN/Psw/Loid/Loid+Psw authentication
    Alarm
    •  Support Dying Gasp
    •  Support Port Loop Detect
    •  Support Eth Port Los
    LAN
    •  Support Port rate limiting
    •  Support Loop detection
    •  Support Flow control
    •  Support Storm control
    VLAN
    •  Support VLAN tag mode
    •  Support VLAN transparent mode
    •  Support VLAN trunk mode(max 8 vlans)
    •  Support VLAN 1:1 translation mode(≤8 vlans)
    •  Auto VLAN detection
    Multicast
    •  Support IGMP v1/v2/Snooping
    •  Max Multicast vlan 8
    •  Max Multicast Group 64
    QOS
    •  Support 4 queues
    •  Support SP and WRR
    •  Support 802.1P
    L3
    •  Support IPv4
    •  Support DHCP/PPPOE/Static IP
    •  Support Static route
    •  Support NAT
    Management
    •  Support CTC OAM 2.0 and 2.1
    •  Support ITUT984.x OMCI
    •  Support WEB
    •  Support TELNET
    •  Support TR069
    •  Support CLI
