Outdoor 8-Port GPON Optical Line Terminal With EDFA

J1600G1WEO B
J1600

J1600G1WEO-B

Outdoor 8-Port GPON Optical Line Terminal With EDFA

Product introduction

8*GPON, 2*GE(SFP)+ 2*10GE(SFP+)+ 8*22EDFA

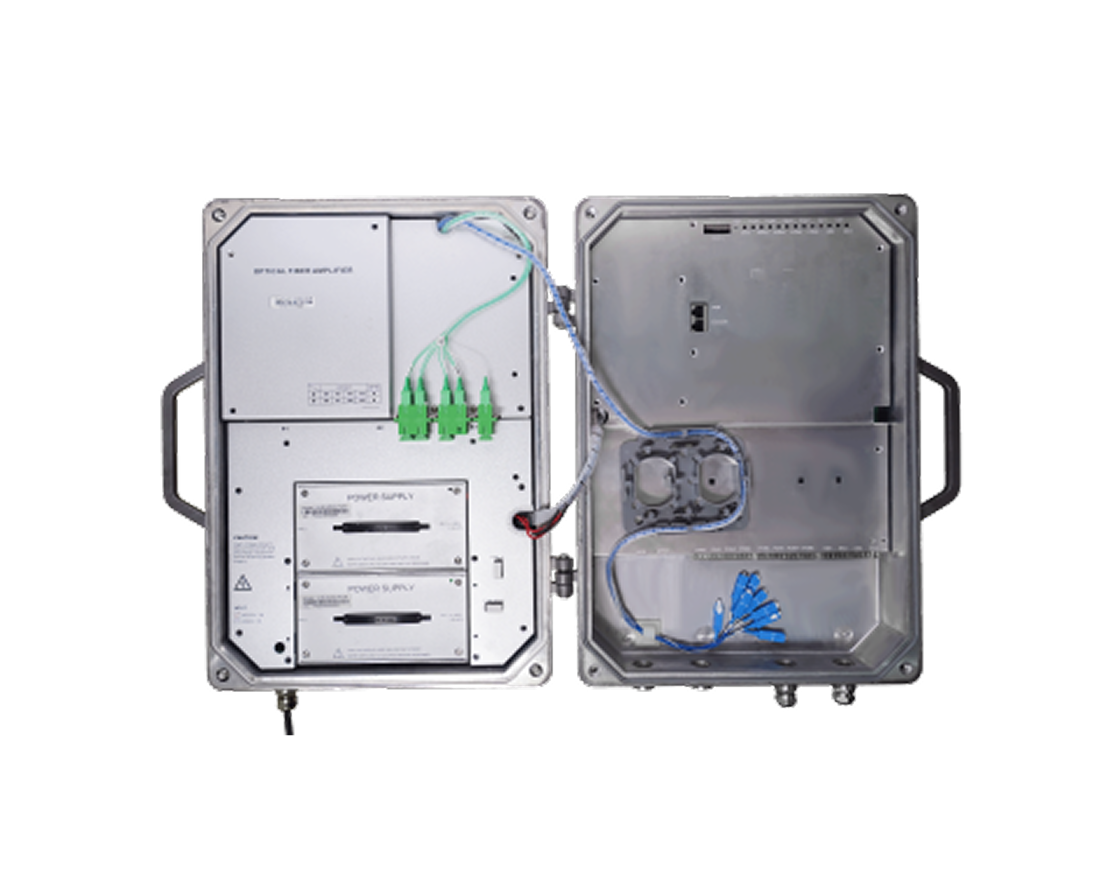

  • Modular Design: Integrates optical amplifier EDFA module(option), GPON OLT module, and optical splitter.
  • 8-Ports GPON: Meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc.

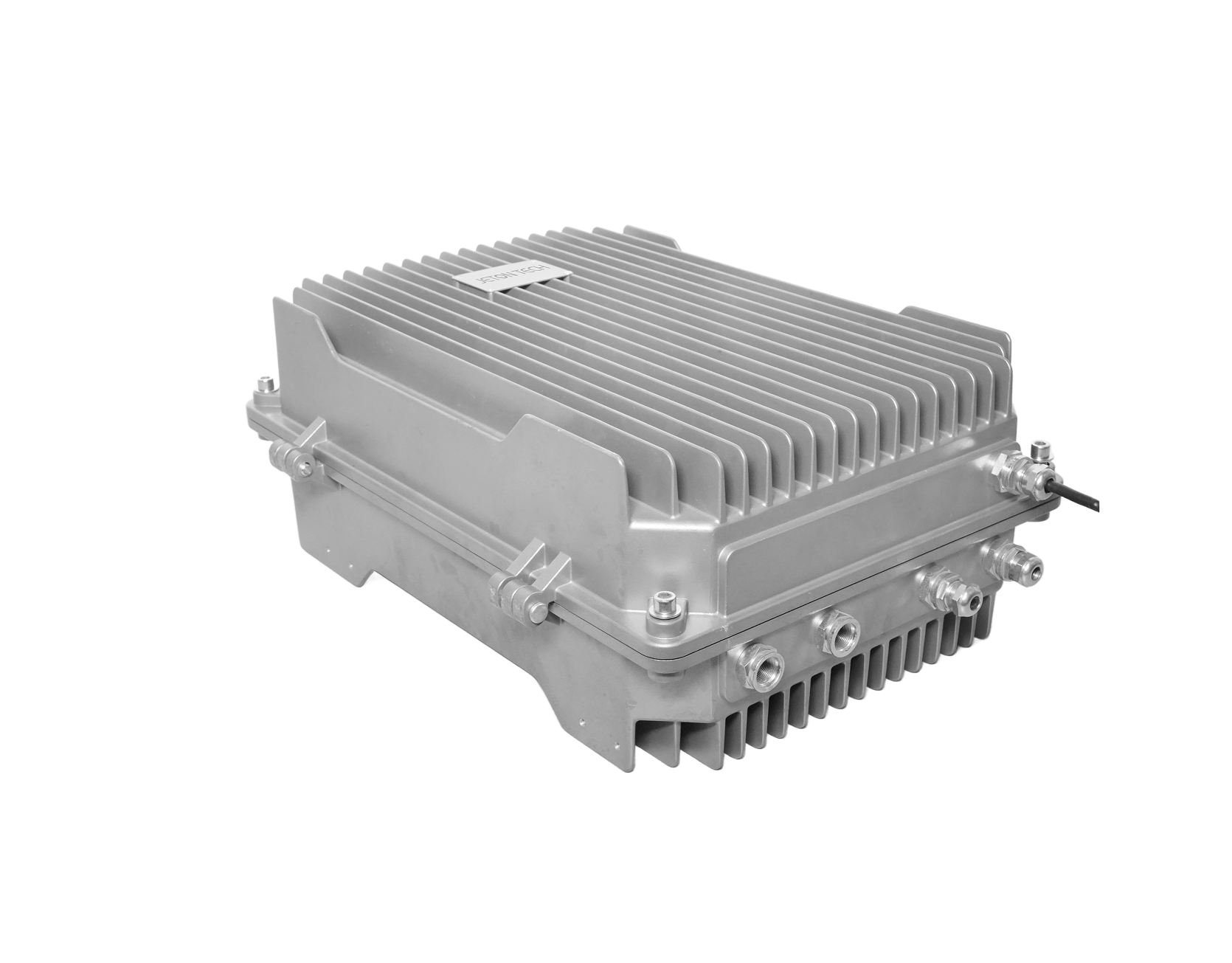

  • Naturally Cooled Aluminum Housing: Designed with aluminum housing, which has good heat dissipation and shielding effect. The level of dustproof and water proof reaches lP65. Working temperature range is -40°C to 70°C.
  • High-Speed Uplink Ports: 2 x 10Gbps SFP+ ports provide high-speed uplink connection.
  • Operator-Class Security Protection: Support dynamic routing protocol RIP&OSPF, ensure the safe operation of network.
  • L3 Router + L2 OLT: Provides Layer 3 dynamic routing protocols of RIP/OSPF, automatic routing switch for uplink to protect data transmission.
  • Dual Power Redundancy: Equipped with dual independent power supplies, providing 1+1 protection.
  • Product icon (3)
    8-Ports OLT + EDFA+ Splitter
  • Product icon (4)
    Natural Cooling
  • Product icon (13)
    Operator-Class Security
  • Product icon (9)
    L3 Router + L2 OLT
  • Product icon (10)
    Dula Power Redundancy

Product datasheet

  • Description

    Model
    • J1600G1WEO-B
    Product Name
    • Outdoor 8-Port GPON OLT With EDFA
    Product Description
    • 8*GPON, 2*GE(SFP)+ 2*10GE(SFP+)+ 8*22EDFA
    Power Configuration
    • 2*AC power
    Accessories
    • GPON SFP C++ module; GPON SFP C+++ module; 1G SFP module; 10G SFP+ module

  • CHASSIS

    Type
    • Metal Shell Box(Outdoor Mounted)

  • Uplink Port

    QTY
    • 4
    SFP(GE)
    • 2
    SFP+(10GE)
    • 2

  • GPON Port

    QTY
    • 8
    Physical Interface
    • SFP Slots
    Max splitting ratio
    • 1:128

  • PON Port Specification

    Transmission Distance
    • 20KM
    GPON port speed
    • Upstream 1.244Gbps, Downstream 2.488Gbps
    Wavelength
    • TX 1490nm, RX 1310nm
    Connector
    • SC/UPC
    Fiber Type
    • 9/125μm SMF
    Supported PON module level
    • Class B+, C, C+, C++, C+++

  • EDFA Optical Amplifier Module

    Working wavelength
    • 1535nm－1565nm
    Input optical power
    • -3dBm－+10dBm(ACC Mode) / -6dBm－+10dBm(APC Mode)
    Output optical power
    • 13 dBm -22dBm
    Output optical power stability
    • ≤±0.25dB
    Noise figure
    • ≤5.0dB(@Input optical power is +3dBm)
    Input /output reflection loss
    • ≥45dB
    Input/output pump light leakage
    • ≤-30dBm
    C/CTB
    • ≥63dB
    C/CSO
    • ≥62dB
    C/N
    • ≥50dB
    NOTE
    • EDFA input optical power is 3dBm,and the optical link composed of optical
      transmitter and receiver is tested.

  • Basic Info

    Management Ports
    • 1*10/100/1000BASE-T out-band port, 1*CONSOLE port
    Backplane Bandwidth (Gbps)
    • 104
    Port Forwarding Rate(Mpps)
    • 65.472
    Power Supply
    • Working Voltage Range : 100~240V AC, Rated Voltage: 110V AC/220V AC;
      Support 24V DC Intput; Dual Power Module Supply.
    Management Mode
    • WEB/SNMP/Telnet/CLI/SSHv2

  • FEATURES

    Management Function
    • SNMP,Telnet,CLI,WEB,SSH v2;
    •  Fan Group Control
    •  Port Status monitoring and configurationmanagement
    •  Online ONTconfiguration and management
    •  User management
    •  Alarm management
    Layer2 Switch
    • 32K Mac address
    •  Support 4096 VLANs
    •  Support port VLAN
    •  Support VLAN tag/Un-tag, VLANtransparent transmission
    •  Support VLAN translation and QinQ
    •  Support storm control based on port
    •  Support port isolation
    •  Support port rate limitation
    •  Support 802.1D and 802.1W
    •  Support static LACP,Dynamic LACP
    •  QoS based on port, VID, TOS and MACaddress
    •  Access control list
    •  IEEE802.x flowcontrol
    •  Port stability statistic and monitoring
    Multicast
    • IGMP snooping
    • 1024 IP Multicast Groups
    DHCP
    • DHCP server,DHCP relay,DHCP snooping
    • DHCP option82
    Layer 3 Route
    • ARP proxy
    •  2048 hardware Host Routes,2048 hardwareSubnet Routes
    •  Support Radius,Tacacs+
    •  Support IP source guard,RIP/OSPF/BGP
    •  1024 hardware Host Routes
    •  512 hardware Subnet Routes
    IPv6
    • Support NDP;
    •  Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
    •  Support ACL based on source IPv6 address,destination IPv6 address, L4 port, protocoltype, etc;
    •  Support MLD v1/v2 snooping(MulticastListener Discovery snooping)
    GPON Function
    •  Tcont DBA
    •  Gemport traffic
    •  In compliant with ITU-T984.x standard
    •  Up to 20KM transmission Distance
    •  Support VLAN division and userseparation to avoid broadcast storm
    •  Support power-off alarm function, easyfor link problem detection
    •  Support broadcasting storm resistancefunction
    •  Support port isolation between differentports
    •  Support ACL and SNMP to configuredata packet filter flexibly
    •  Specialized design for systembreakdown prevention to maintainstable system
    •  Support RSTP,IGMP Proxy

  • OTHERS

    Dimension
    • 450mm*384mm*180mm(L*W*H)
    Weight
    • Net weight of single power: 16.1 kg
    • Gross weight of single power: 18.3kg
    WaterProofLevel
    • IP65
    Working Temperature
    • -40°C ~+70°C
    Storage Temperature
    • -40~+85°C
    Relative Humidity
    • 5~95% (non-condensing)
    Power Consumption
    • 45W
