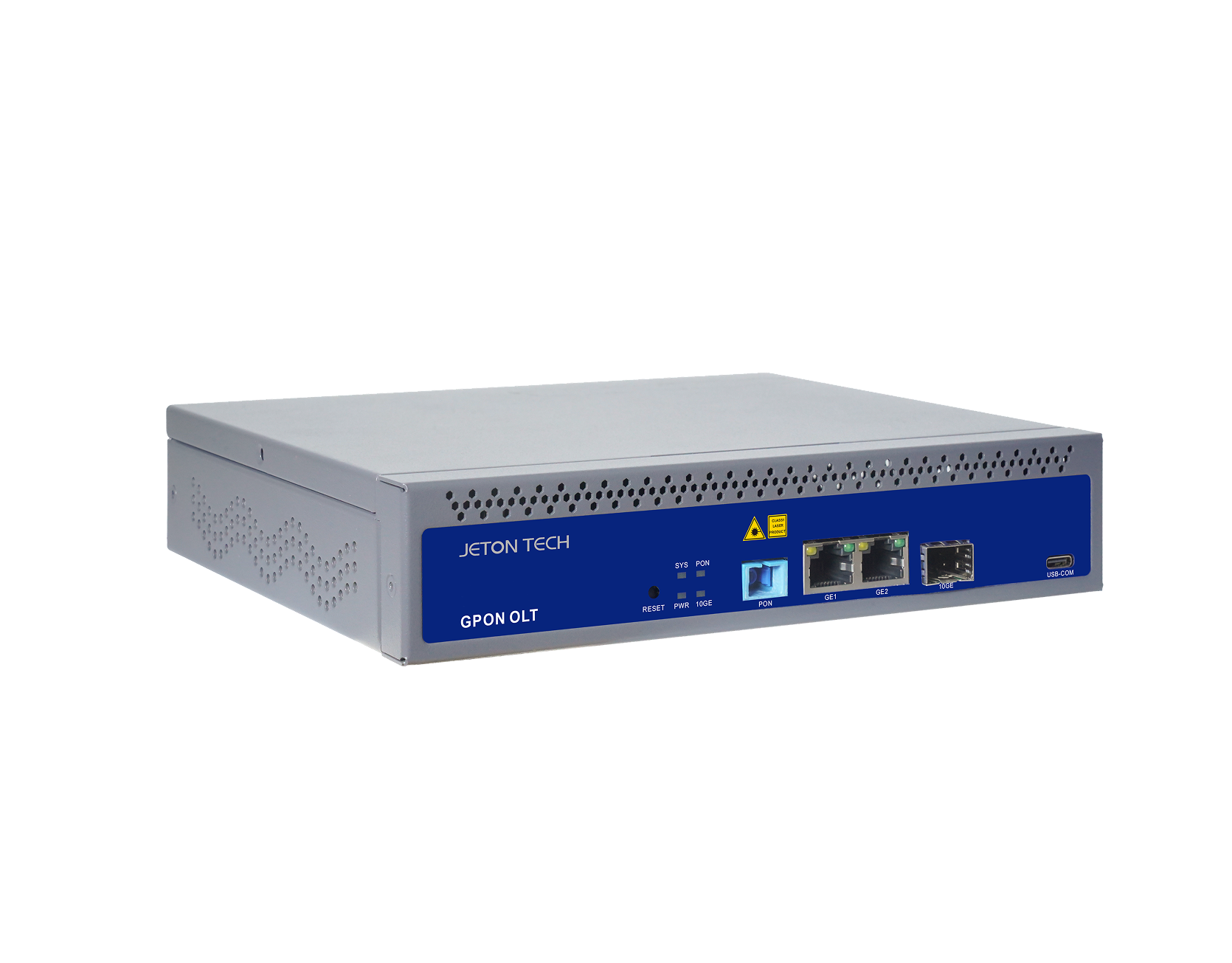

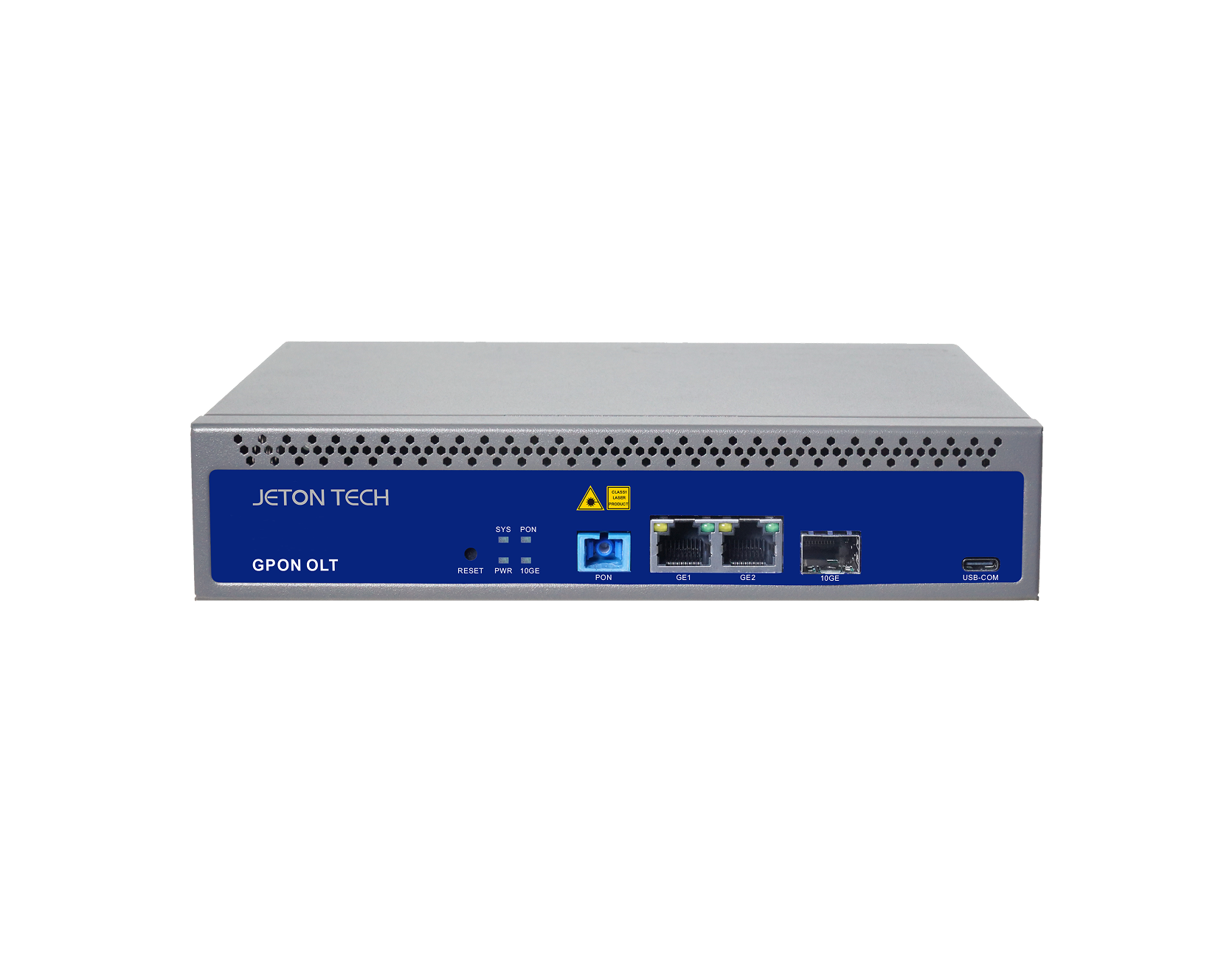

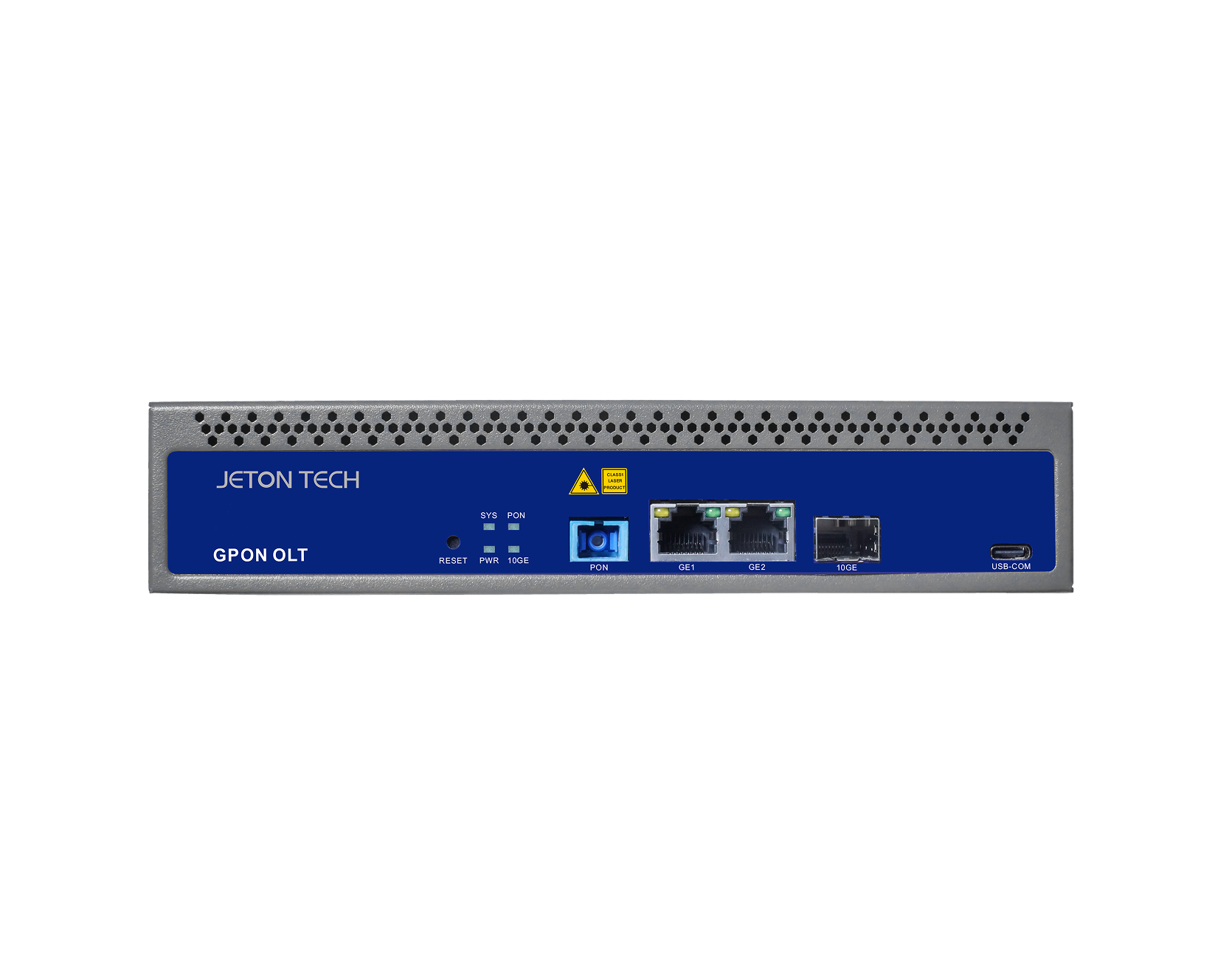

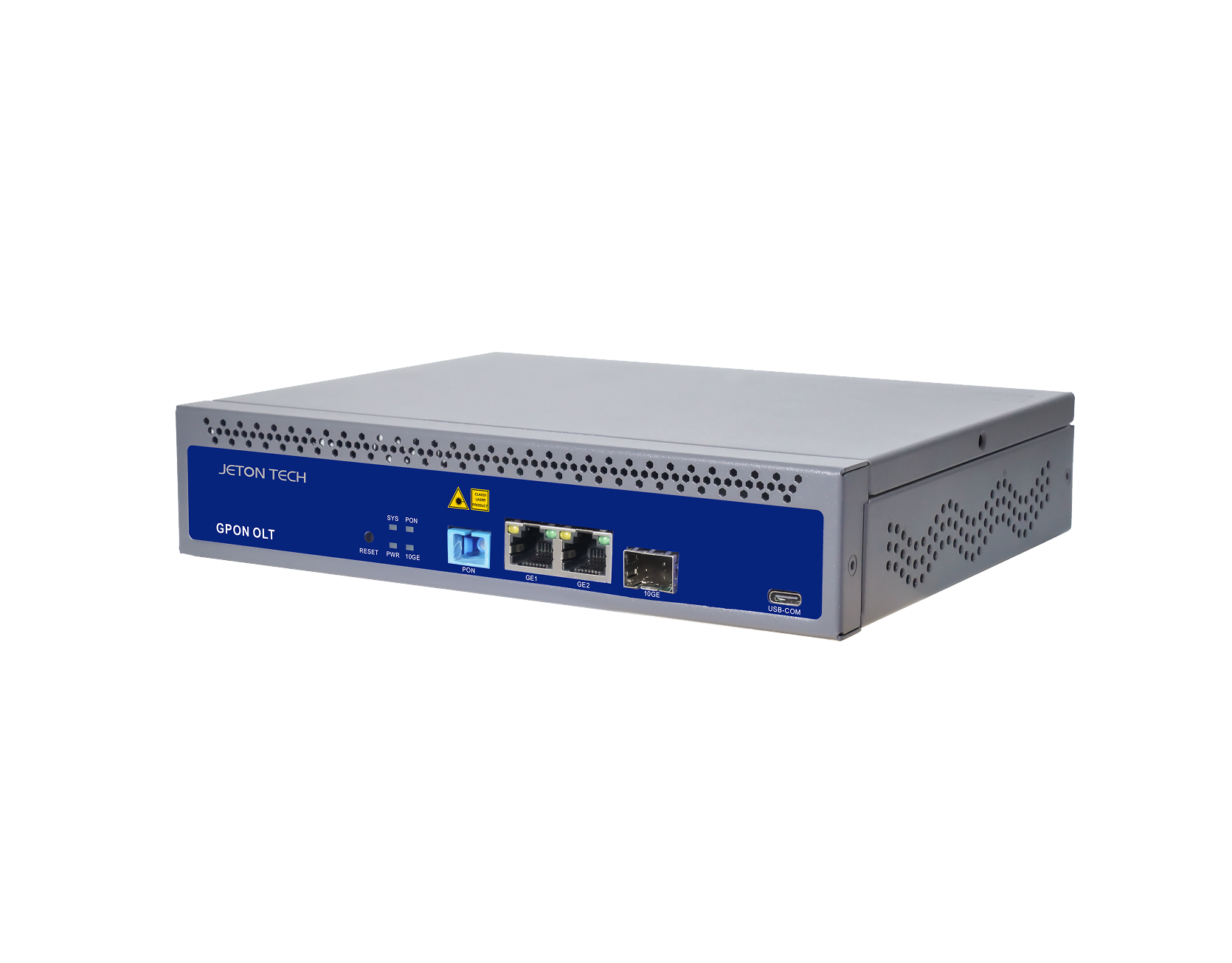

J1600
J1600GS-F
1-Ports Layer 3 GPON Optical Line Terminal
J1600
J1600GS-F
1-Ports Layer 3 GPON Optical Line Terminal
J1600
J1600GS-F
1-Ports Layer 3 GPON Optical Line Terminal
J1600
J1600GS-F
1-Ports Layer 3 GPON Optical Line Terminal
Product introduction
1*GPON, 2*RJ45+ 1*SFP/SFP+
- 1-Ports GPON: Widely used in various application scenarios such as FTTH, SOHO, and small business offices.
- Three-in-one Desigh: Integrated OLT, Gateway and AC Function
- High-Speed Uplink Ports: 1 x SFP/10Gbps SFP+ ports provide high-speed uplink connection.
- Operator-Class Security Protection: Support dynamic routing protocol RIP&OSPF, ensure the safe operation of network.
- High Scalability: Supports a splitting ratio of 1:128.
- L3 Router + L2 OLT: Provides Layer 3 dynamic routing protocols of RIP/OSPF, automatic routing switch for uplink to protect data transmission.
- Dual Power Supply: Dual hot-swappable power supplies (Default AC, DC, or hybrid) provide greater reliability.
-
Three-in-on Desigh -
10Gbps SFP+ Uplink
-
Operator-Class Security
-
L3 Router + L2 OLT
-
Dula Power Supply
Product datasheet
-
Description
Model- J1600GS-F
Product Name- 1-Ports Layer 3 GPON OLT
Product Description- 1*GPON, 2*RJ45+ 1*SFP/SFP+
Power Configuration- 1*DC; 1*AC(Default); 1*AC+1*DC
Accessories- 1G SFP module; 10G SFP+ module
-
CHASSIS
Rack- 1U
-
UPLINK PORT
QTY- 3
RJ45(GE)- 2
SFP(GE)/SFP+(10GE)- 1
-
GPON PORT
QTY- 1
Fiber Type- 9/125μm SM
Connector- SC/UPC, Class C++/Class C+++(default)
- Class C++：TX>6.5dBm, Sen: -32dBm
- Class C+++：TX>7.5dBm, Sen: -33dBm
GPON port speed- Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength- TX 1490nm, RX 1310nm
Max splitting ratio- 1:128
Transmission Distance- 20KM
-
FEATURES
Management Ports- 1*USB-COM(Type-C) port
Backplane Bandwidth (Gbps)- 16
Port Forwarding Rate(Mpps)- 23.808
Management Mode- WEB/Telnet/CLI/SNMP
Management Function- Telnet,CLI,WEB,SNMP;
- Port Status monitoring and configuration management
- Online ONTconfiguration and management
- User management
- Alarm management
Layer2 Switch- 1K Mac address
- Support 4096 VLANs
- Support port VLAN
- Support VLAN tag/Un-tag, VLAN transparent transmission
- Support VLAN translation、QinQ and P2P
- Support storm control based on port
- Support port isolation
- Support port rate limitation
- Support 802.1D and 802.1W
- Access control list
- IEEE802.x flowcontrol
- Port stability statistic and monitoring
Multicast- IGMP snooping
- 256 IP Multicast Groups
DHCP- Support DHCP server,DHCP relay,DHCP snooping
- Support DHCP option82
- Support DHCPv6 server,DHCPv6 relay
Layer 3 Route- Support dynamic/static ARP
- Support WAN (DHCP/PPPOE/Statics)
- Support static routing, NAT, DMZ
- Support QoS based on DSCP, MAC, IP, L4 port, protocol, etc.
- Support ACL based on source MAC address, source IP address, source L4 port, destination IP address, destination L4 port, protocol type, etc.
IPv6- Support IPv6 Ping, IPv6 Telnet, IPv6 routing
- Support ACL based on source MAC address, source IPv6 address, source L4 port, destination IPv6 address, destination L4 port, protocol type, etc
- Support IPv6 SLAAC
- Support MLD v1/v2 snooping (Multicast Listener Discovery snooping)
GPON Function- Tcont DBA
- Gemport traffic
- In compliant with ITU-T984.x standard
- Up to 20KM transmission Distance
- Support data encryption, multi-cast, port VLAN, separation, etc
- Support ONT auto-discovery/link detection/remote upgrade of software
- Support VLAN division and user separation to avoid broadcast storm
- Support power-off alarm function, easy for link problem detection
- Support broadcasting storm resistance function
-
OTHERS
Dimension- 210mm*173mm*43.6mm(L*W*H)
Weight- Net weight of single power: 1.07kg
Working Temperature- -20°C~+60°C
Storage Temperature- -40~+70°C
Relative Humidity- 5~95% (non-condensing)
-
POWER SUPPLY
AC- Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
DC- DC 12V/2A
-
LIGHTNING PROTECTION LEVEL
Power supply- 4KV
Device Interface- 1KV
