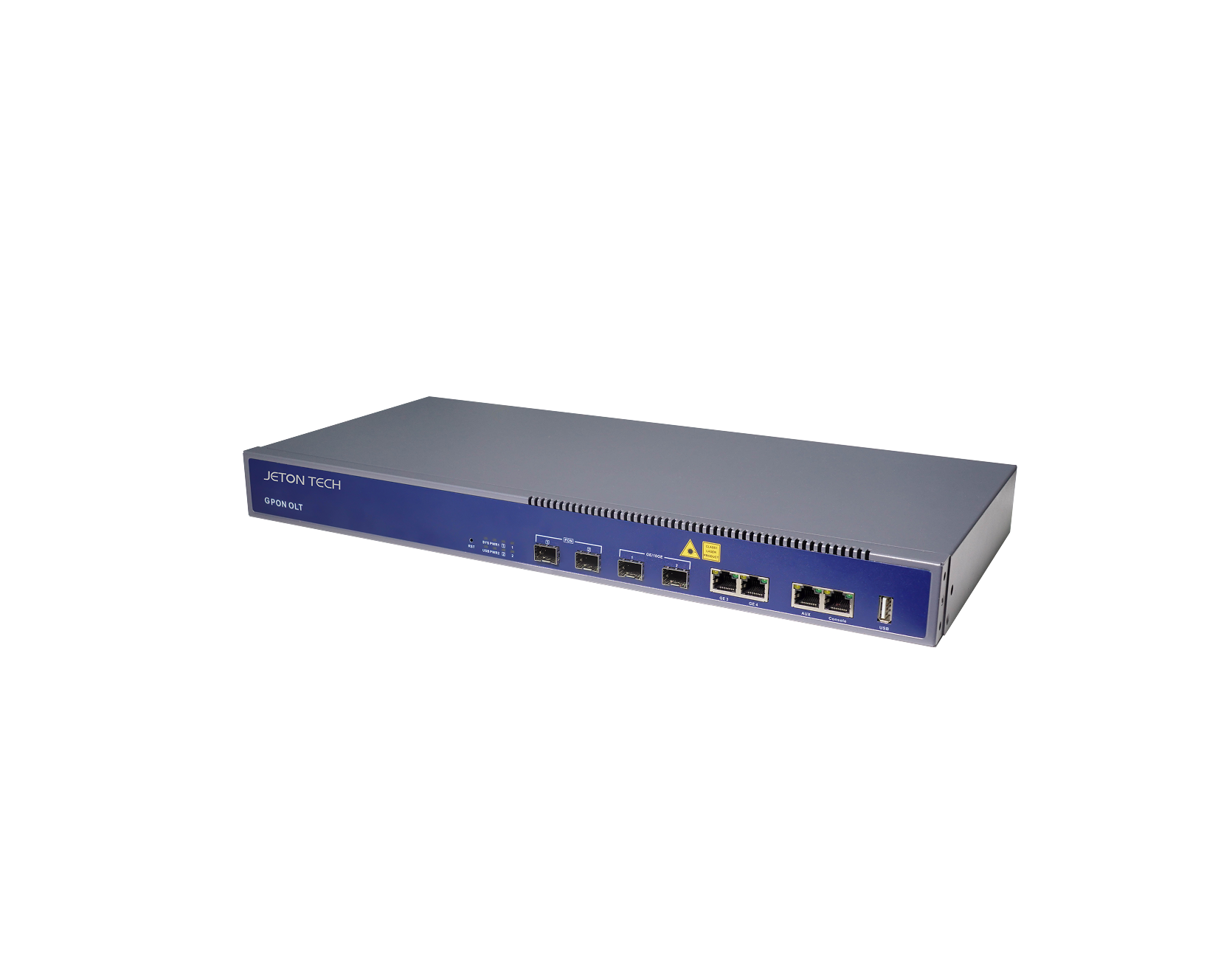

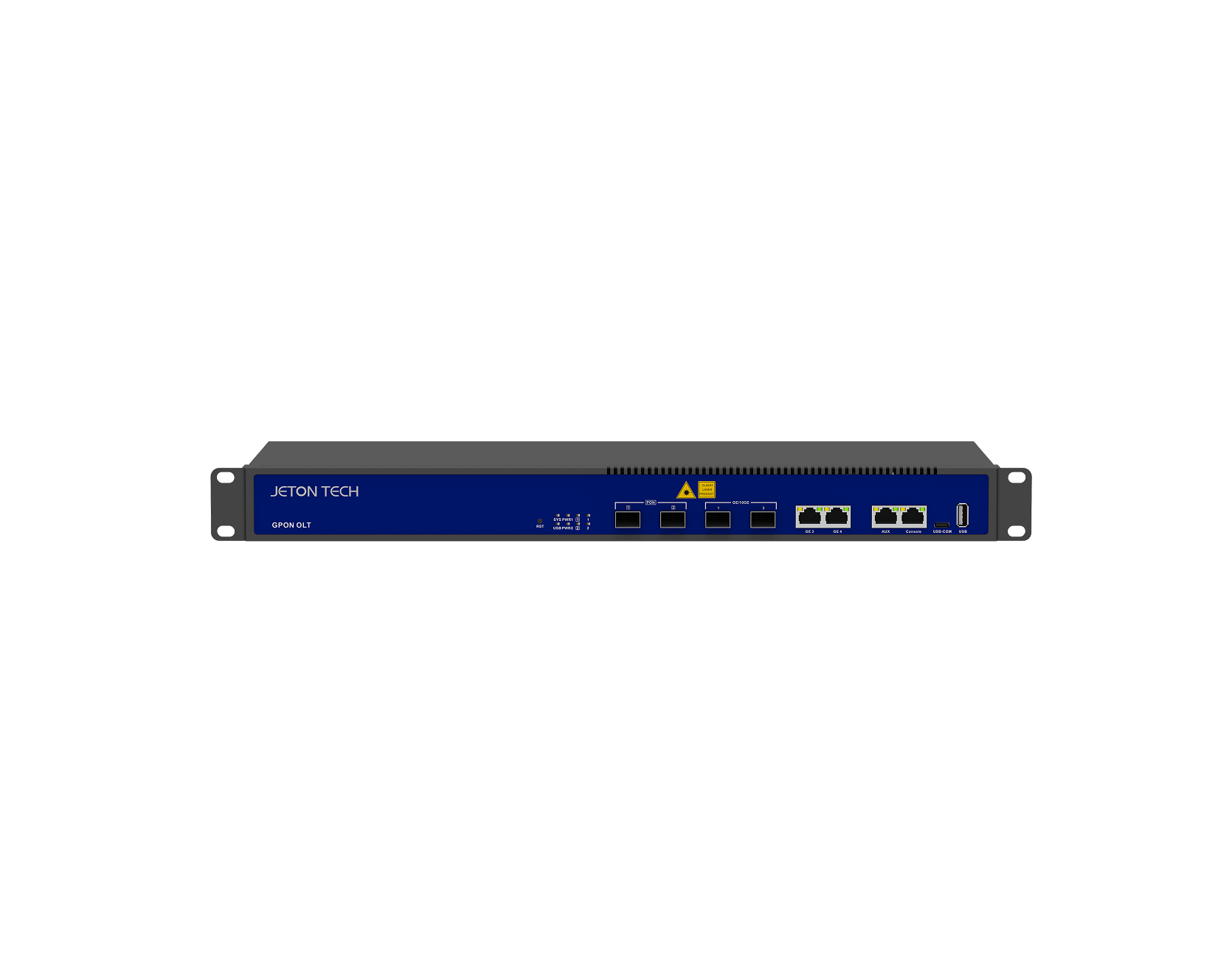

2-Ports Layer 3 GPON Optical Line Terminal

J1600GT
J1600GT

J1600GT

2-Ports Layer 3 GPON Optical Line Terminal

J1600GT
J1600GT

J1600GT

2-Ports Layer 3 GPON Optical Line Terminal

Product introduction

2*GPON, 2*GE(RJ45)+ 2*GE(SFP)/10GE(SFP+)

  • 2-Ports GPON: Meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc.
  • High-Speed Uplink Ports: 2 x SFP/10Gbps SFP+ ports provide high-speed uplink connection.
  • Operator-Class Security Protection: Support dynamic routing protocol RIP&OSPF, ensure the safe operation of network.
  • High Scalability: Supports a splitting ratio of 1:128.
  • L3 Router + L2 OLT: Provides Layer 3 dynamic routing protocols of RIP/OSPF, automatic routing switch for uplink to protect data transmission.
  • Dual Power Supply: Dual hot-swappable power supplies (AC, DC, or hybrid) provide greater reliability.
  • Product icon (32)
    2-Ports GPON
  • Product icon (8)
    10Gbps SFP+ Uplink
  • Product icon (13)
    Operator-Class Security
  • Product icon (9)
    L3 Router + L2 OLT
  • Product icon (10)
    Dula Power Supply

Product datasheet

  • Description

    Model
    • J1600GT
    Product Name
    • 2-Ports Layer 3 GPON OLT
    Product Description
    • 2*GPON, 2*GE(RJ45)+ 2*GE(SFP)/10GE(SFP+)
    Power Configuration
    • 1*AC power; 1*DC power; 2*AC power; 2*DC power; 1*AC power + 1* DC power
    Accessories
    • Class C++ module; Class C+++module; Class C++++module; 1G SFP / 10G SFP+ module

  • CHASSIS

    Rack
    • 1U 19Inch Standard Box

  • UPLINK PORT

    QTY
    • 4
    RJ45(GE)
    • 2
    SFP(GE) / SFP+(10GE)
    • GPON PORT2

  • GPON PORT

    QTY
    • 2
    Physical Interface
    • SFP Slots
    Supported PON module level
    • Class C++/Class C+++/Class C++++
    Max splitting ratio
    • 1:128

  • PON PORT

    Transmission Distance
    • 20KM
    PON port speed
    • Upstream 1.244Gbps, Downstream 2.488Gbps
    Wavelength
    • TX 1490nm, RX 1310nm
    Connector
    • SC/UPC
    Fiber Type
    • 9/125μm SMF
    TX Power
    • +4.5~+10dBm
    Rx Sensitivity
    • ≤ -30dBm
    Saturation Optical Power
    • -12dBm

  • FEATURES

    Management Ports
    • 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB-COM, 1*USB2.0
    Backplane Bandwidth (Gbps)
    • 208
    Port Forwarding Rate(Mpps)
    • 40.176
    Management Mode
    • WEB , Telnet , CLI
    Management Function
    •   Telnet,CLI,WEB;
    •   Fan Group Control
    •   Port Status monitoring and configurationmanagement
    •   Online ONTconfiguration and management
    •   User management
    •   Alarm management
    Layer2 Switch
    •   16K Mac address
    •   Support 4096 VLANs
    •   Support port VLAN
    •   Support VLAN tag/Un-tag, VLANtransparent transmission
    •   Support VLAN translation and QinQ
    •   Support storm control based on port
    •   Support port isolation
    •   Support port rate limitation
    •   Support 802.1D and 802.1W
    •   Support static LACP,Dynamic LACP
    •   QoS based on port, VID, TOS and MACaddress
    •   Access control list
    •   IEEE802.x flowcontrol
    •   Port stability statistic and monitoring
    Multicast
    • IGMP snooping
    • 1K L2 Multicast Groups;
    • 1K L3 Multicast Groups;
    DHCP
    • DHCP server,DHCP relay,DHCP snooping
    • DHCP option82
    Layer 3 Route
    • ARP proxy
    • 16K hardware Host Routes,1024hardwareSubnet Routes
    • Support static route;
    IPv6
    •   Support NDP;
    •   Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
    •   Support ACL based on source IPv6 address,destination IPv6 address, L4 port, protocoltype, etc;
    •   Support MLD v1/v2 snooping(MulticastListener Discovery snooping)
    GPON Function
    •   Tcont DBA
    •   Gemport traffic
    •   In compliant with ITU-T G.984
    •   Up to 20KM transmission Distance
    •   Support data encryption, multi-cast, portVLAN, separation, RSTP, etc
    •   Support ONT auto-discovery/linkdetection/remote upgrade of software
    •   Support VLAN division and user separationto avoid broadcast storm
    •   Support power-off alarm function, easy forlink problem detection
    •   Support broadcasting storm resistancefunction
    •   Support port isolation between differentports
    •   Support ACL to configure data packet filterflexibly
    •   Specialized design for system breakdownprevention to maintain stable system

  • OTHERS

    Dimension
    • 442mm*200mm*43.6mm(L*W*H)
    Weight
    • Net weight of single power: 2.485kg
    Working Temperature
    • -20°C ~+60°C
    Storage Temperature
    • -40~+70°C
    Relative Humidity
    • 5~95% (non-condensing)
    Power Consumption
    • 35W

  • POWER SUPPLY

    AC
    • Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
    DC
    • Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V
