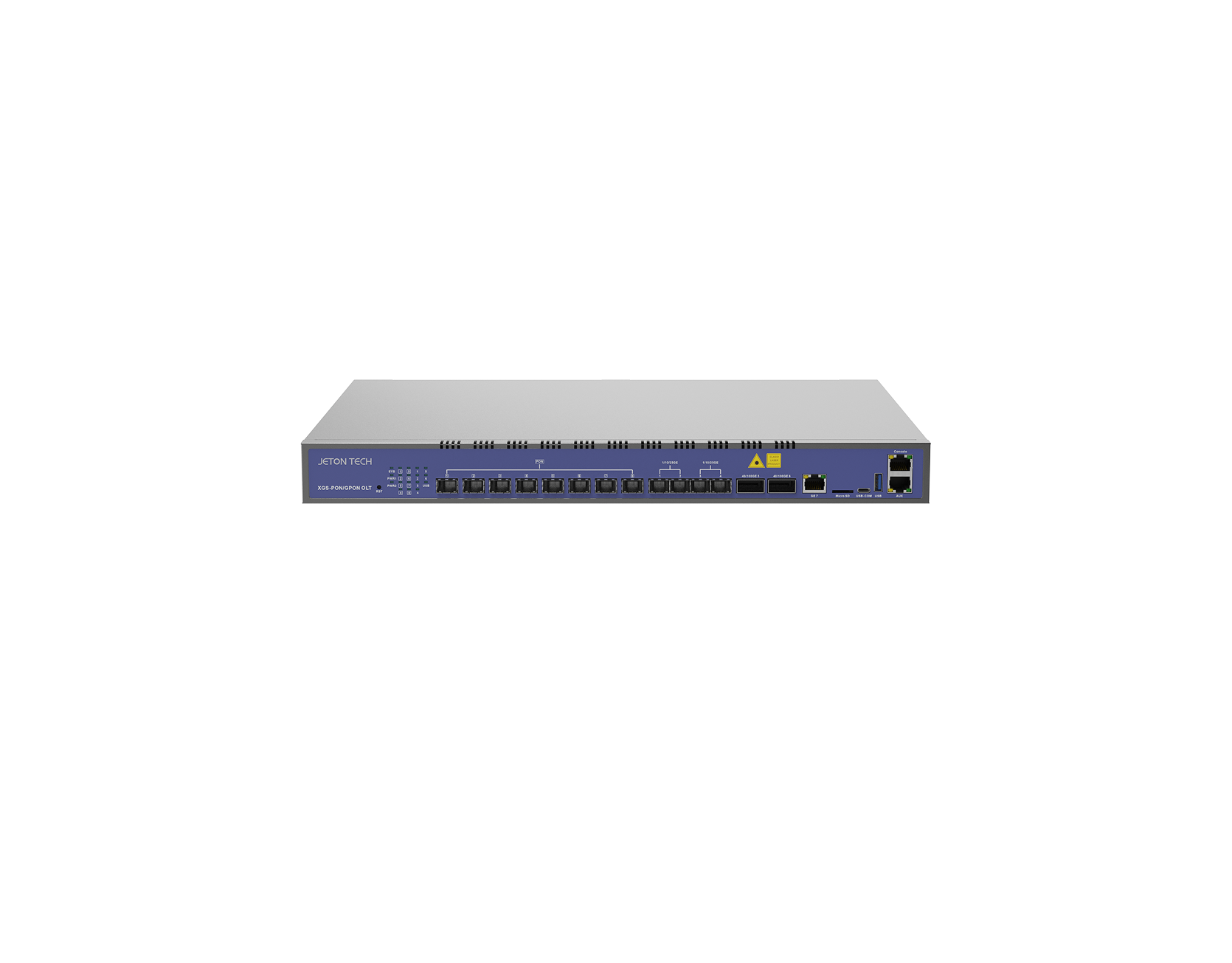

8-Ports XG(S) ＆ GPON Combo Optical Line Terminal
J3600G1
J3600G1-C
8-Ports XG(S) ＆ GPON Combo Optical Line Terminal
J3600G1
J3600G1-C
8-Ports XG(S) ＆ GPON Combo Optical Line Terminal
J3600G1
J3600G1-C
8-Ports XG(S) ＆ GPON Combo Optical Line Terminal
J3600G1
J3600G1-C
8-Ports XG(S) ＆ GPON Combo Optical Line Terminal
Product introduction
8*XG(S)-PON/GPON, 1*GE(RJ45)+ 4*25GE(SFP28)+ 2*100GE(QSFP28)
- 8-Ports Combo PON: Supports XGS-PON/XG-PON/GPON triple mode for Flexible Networking. All ports Simultaneously support XGS-PON/XG-PON/GPON mode, ensuring a hassle-free upgrade to a 10 Gbps network.
- Super-Speed Uplink Ports: 4 x 25Gbps SFP28 ports and 2 x 100Gbps QSFP28 ports provide super-speed uplink connection.
- Operator-Class Security Protection: Support dynamic routing protocol RIP&OSPF, ensure the safe operation of network.
- High Scalability: Supports a splitting ratio of 1:256 for XGS-PON and 1:128 for GPON.
- L3 Router + L2 OLT: Provides Layer 3 dynamic routing protocols of RIP/OSPF, automatic routing switch for uplink to protect data transmission.
- Dual Power Supply: Dual hot-swappable power supplies (AC, DC) provide greater reliability.
-
XGS-PON/XG-PON/GPON Triple Mode -
100G QSFP28 Uplink
-
Operator-Class Security
-
L3 Router + L2 OLT
-
Dula Power Supply
Product datasheet
-
Description
Model- J3600G1-C
Product Name- 8-Ports XG(S) ＆ GPON Combo OLT
Product Description- 8*XG(S)-PON/GPON, 1*GE(RJ45)+ 4*25GE(SFP28)+ 2*100GE(QSFP28)
Power Configuration- 1*AC power; 2*AC power; 2*DC power; 2* DC power
Accessories- N2_C+ module; Class C++++ module(Single GPON mode); 100GE QSFP28 module; 25GE SFP28 module
-
CHASSIS
Rack- 1U 19Inch Standard Box
-
Uplink Port
QTY- 8
RJ45(GE)- 4
SFP(GE)/SFP+(10GE)- 4
-
XG(S)-PON/GPON Port
QTY- 8
Physical Interface- SFP+ Slots
Connector Type- XG(S)-PON&GPON Combo mode: N2_C+
- Single GPON mode: Class B+/C/C+/C++/C+++/C++++
Max splitting ratio- 1:128
-
XG(S)-PON&GPON Combo Port Specification
Transmission Distance- 20KM
XG(S)-PON Port Speed- GPON:Upstream1.244Gbps,Downstream 2.488Gbps
- XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps
- XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps
Wavelength- GPON:Upstream 1310nm, Downstream 1490nm
- XG(S)-PON:Upstream: 1270nm Downstream: 1577nm
Supported PON ports- PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default )
-
GPON Port Specification
Transmission Distance- 20KM
GPON port speed- Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength- Upstream: 1310nm, Downstream: 1490nm
Supported PON ports- PON 1~8 (Each PON port can be manually hot-switch to GPON mode)
-
Lightning Protection
Power Lightning Protection- 6KV
Interface Lightning Protection- 4KV
-
Basic Info
Management Ports- 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port
Backplane Bandwidth (Gbps)- 1960
Port Forwarding Rate(Mpps)- 566.928
Power Supply:AC- Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
Number of Fans- 4
Management Mode- CLI(Console/Telnet/SSH)/WEB/SNMP
-
FEATURES
Management Function- SNMP,Telnet,CLI,WEB,SSH v2;
- Fan Group Control
- Port Status monitoring and configurationmanagement
- Online ONTconfiguration and management
- User management
- Alarm management
Layer2 Switch- 32K Mac address
- Support 4096 VLANs
- Support port VLAN
- Support VLAN tag/Un-tag, VLANtransparent transmission
- Support VLAN translation and QinQ
- Support storm control based on port
- Support port isolation
- Support port rate limitation
- Support 802.1D and 802.1W
- Support static LACP,Dynamic LACP
- QoS based on port, VID, TOS and MACaddress
- Access control list
- IEEE802.x flowcontrol
- Port stability statistic and monitoring
Multicast- IGMP snooping
- 2048 IP Multicast Groups;
DHCP- DHCP server,DHCP relay,DHCP snooping
- DHCP option82
Layer 3 Route- ARP proxy
- 4096 hardware Host Routes,512
- hardwareSubnet Routes
- Support Radius,Tacacs+
- Support IP source guard
- Support static route ,dynamic route
- RIPv1/v2,RIPng and OSPF v2/v3
IPv6- Support NDP;
- Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
- Support ACL based on source IPv6 address,destination IPv6 address, L4 port, protocoltype, etc;
- Support MLD v1/v2 snooping
PON Function- T-cont DBA
- x-GEM traffic
- In compliant withITU-T G.9807(XGS- PON) ,ITU-T G.987(XG-PON) and ITU-T 984.x
- Up to 20KM transmission Distance
- Support data encryption, multi-cast, portVLAN, separation, RSTP, etc
- Support ONT auto-discovery/linkdetection/remote upgrade of software
- Support VLAN division and userseparation to avoid broadcast storm
- Support power-off alarm function, easyfor link problem detection
- Support broadcasting storm resistancefunction
- Support port isolation between differentports
- Support ACL and SNMP to configuredata packet filter flexibly
- Specialized design for systembreakdown prevention to maintainstable system
- Support RSTP,IGMP Proxy
-
OTHERS
Dimension- 442mm*330mm*43.6mm(L*W*H)
Weight- Net weight of single power: 4.80kg
Working Temperature- -20°C ~+60°C
Working Humidity- 5~95% (non-condensing)
Storage Temperature- -40~+70°C
Storage Humidity- 5~95% (non-condensing)
Power Consumption- 150W
