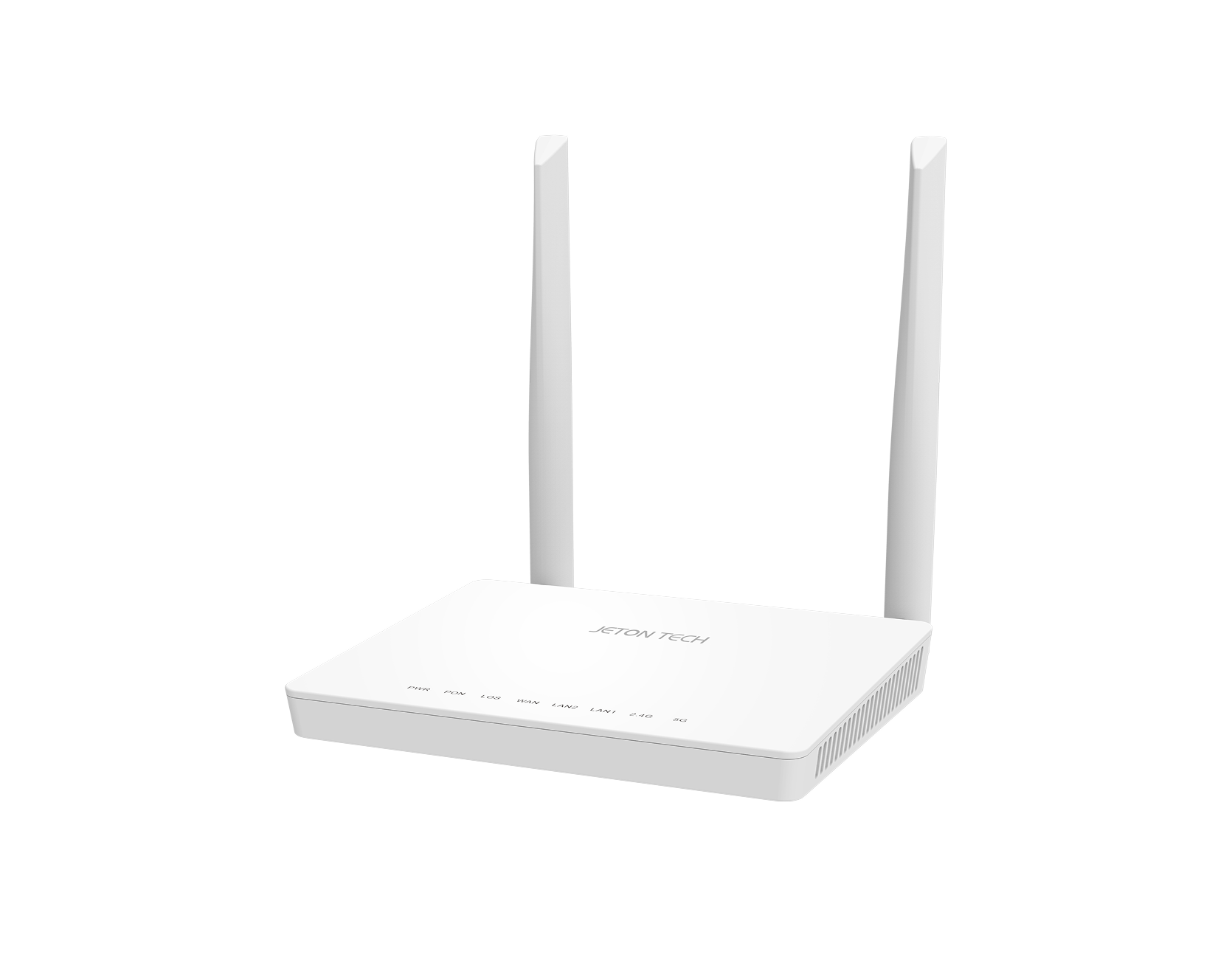

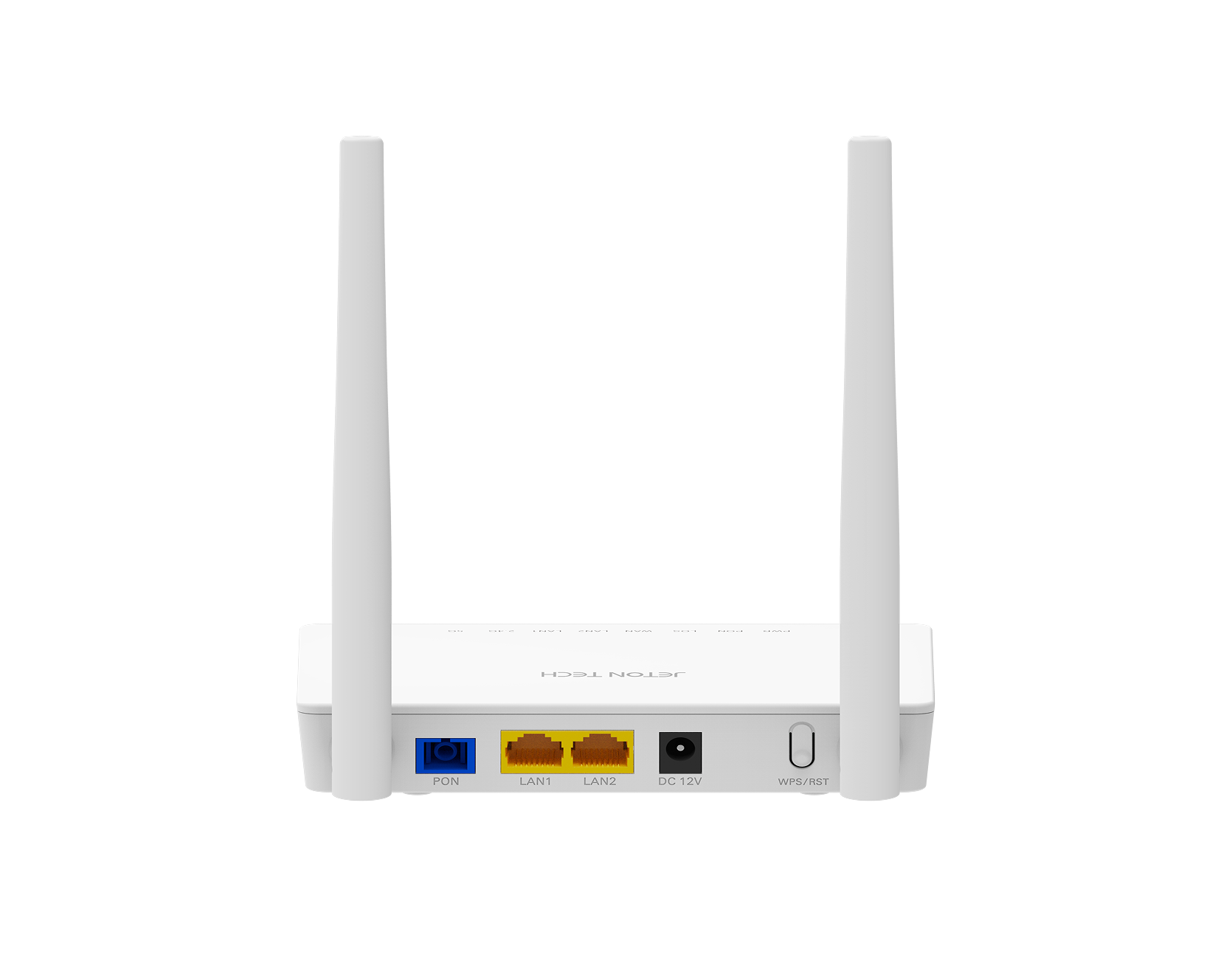

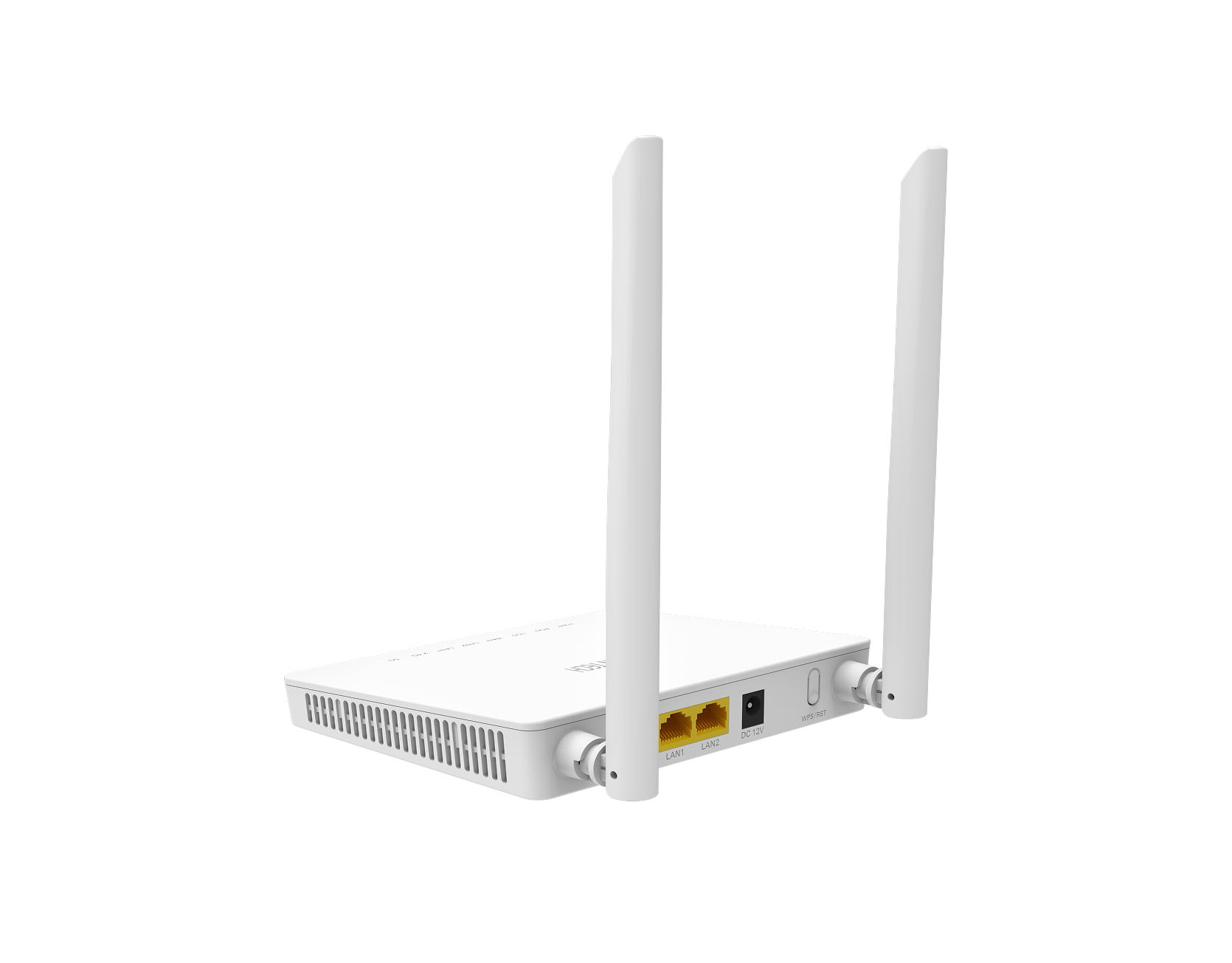

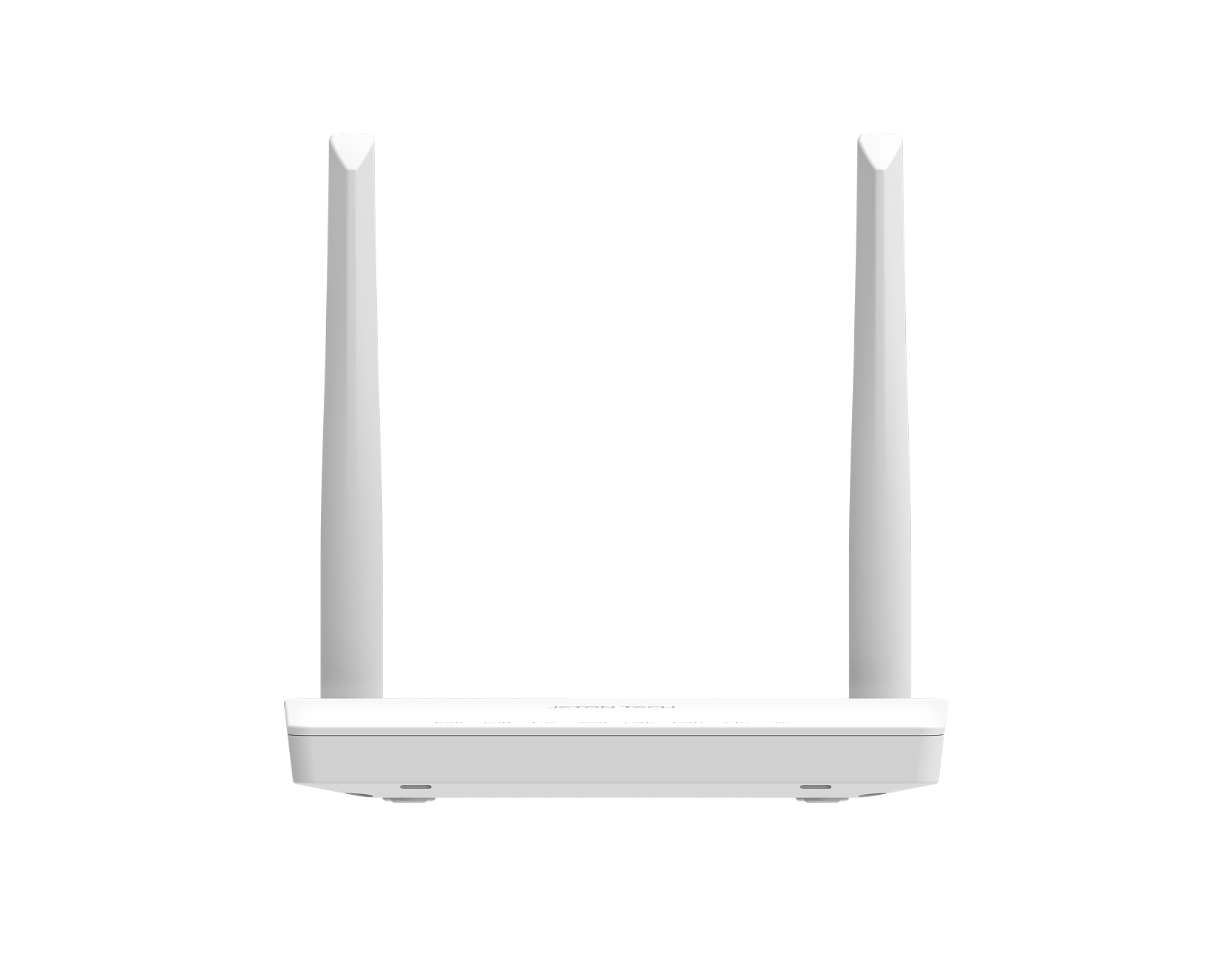

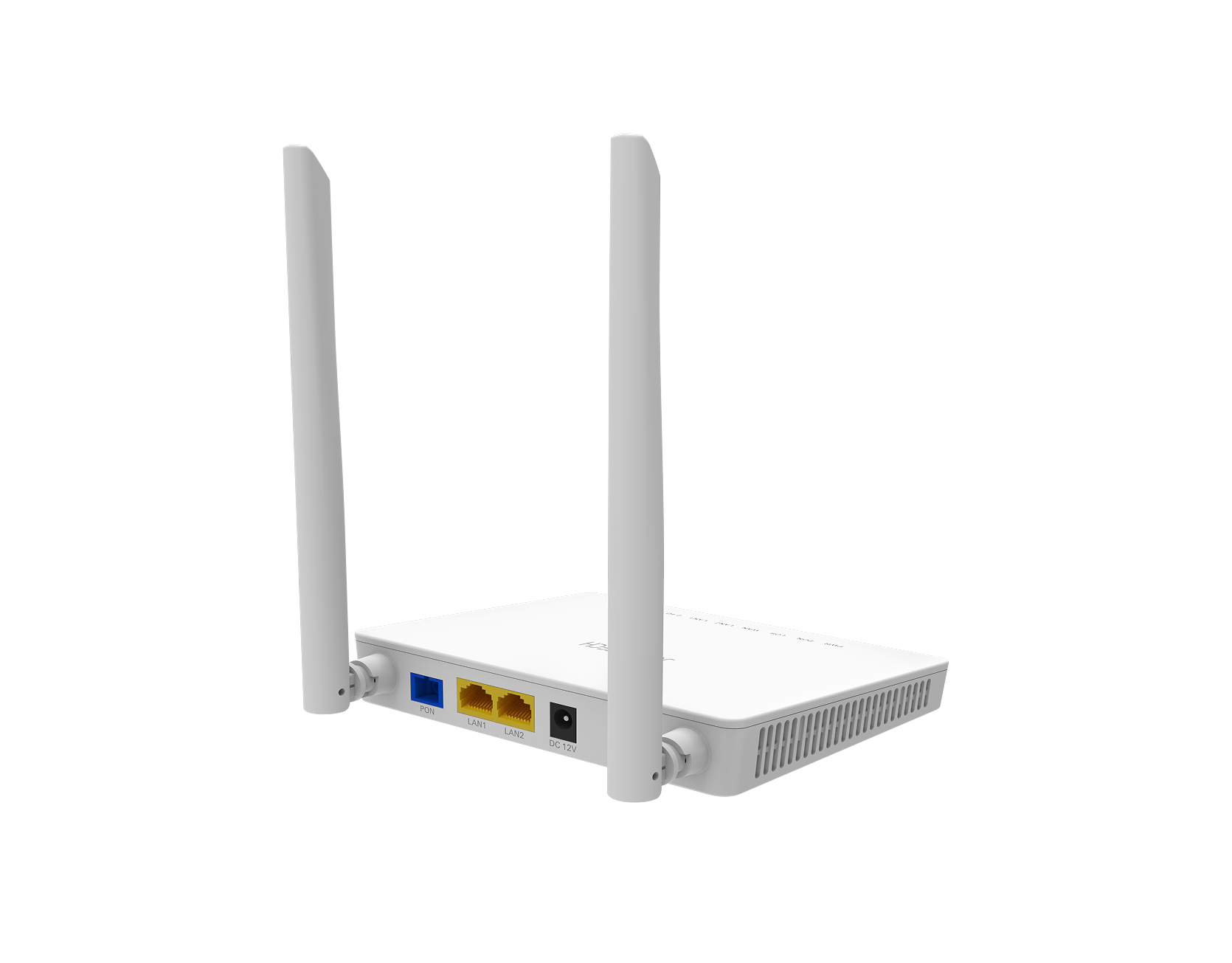

JP1200 A
JP1200G

JP1200G-A

AC1200 Wi-Fi 5 XPON ONT

JP1200 A
JP1200G

JP1200G-A

AC1200 Wi-Fi 5 XPON ONT

JP1200 A
JP1200G

JP1200G-A

AC1200 Wi-Fi 5 XPON ONT

JP1200 A
JP1200G

JP1200G-A

AC1200 Wi-Fi 5 XPON ONT

JP1200 A
JP1200G

JP1200G-A

AC1200 Wi-Fi 5 XPON ONT

Product introduction

1*XPON+ 2*GE+ WiFi 5 (AC1200)

  • High Performance Solution: Supporting XPON dual-mode technology (EPON and GPON); Complies with international standards such as IEEE802.3ah and ITU-T G.984.
  • Dual Band Wi-Fi 5: Wi-Fi up to 1167 Mbps; 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
  • Two Gigabit LAN Ports: Each port is ten times faster than Fast Ethernet, enough to connect all your favorite devices.
  • Highly Integrated Design: 2.4G and 5G antennas share the same antenna housing; It can be placed on a desktop or wall-mounted.
  • EasyMesh Compatible: By connecting to EasyMesh compatible features, you can flexibly create a mesh network covering the entire house.
  • Management Functions: WEB/TELNET/OAM/OMCI/TR069.
  • Product icon (29)
    High Performance Solution
  • Product icon (24)
    Dual Band Up to 1167 Mbps
  • Product icon (32)
    2× Gigabit LAN Ports
  • Product icon (35)
    EasyMesh
  • Product icon (1)
    Highly Integrated

Product datasheet

  • Description

    Model
    • JP1200G-A
    Product Name
    • AC1200 Wi-Fi 5 XPON ONT
    Product Description
    • 1*XPON+ 2*GE+ Wi-Fi 5 AC1200
    Accessories
    • AC-DC power adaptor: DC12V/1A

  • Hardware Parameter

    Dimension
    • 139.3mm×136.7mm×30mm(L×W×H)
    Net weight
    • 195g
    Operating condition
    •  Operating temp: -10 ~ +55°C
    •  Operating humidity: 5 ~ 95% (non-condensed)
    Storing condition
    •  Storing temp: -40 ~ +70°C
    •  Storing humidity: 5 ~ 95% (non-condensed)
    Power adapter
    • DC 12V,1A, external AC-DC power adaptor
    Power supply
    • ≤12W
    Interface
    • 1*XPON+ 2*GE+ Wi-Fi 5
    Indicators
    • PWR, PON, LOS, WAN, LAN2, LAN1, 2.4G, 5G

  • Interface Parameter

    PON Interface
    •  1XPON port (EPON PX20+ and GPON Class B+)
    •  SC single mode, SC/UPC connector
    •  TX optical power: 0～+4dBm
    •  RX sensitivity: -27dBm
    •  Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    •  Transmission distance: 20KM
    •  Wavelength: TX 1310nm, RX1490nm
    Wi–Fi interface
    •  Compliant with IEEE 802.11b/g/n/ac Wi-Fi 5
    •  Wi-Fi: Dual Band, 5GHz & 2.4GHz, rate up to 1167 Mbps,Multiple SSID
    •  5GHz up to 867 Mbps, 2.4GHz up to 300 Mbps
    •  TX power: 5GHz ＜20 dBm; 2.4GHz ＜20 dBm
    User Interface
    • 2×GE, Auto-negotiation, RJ45 ports

  • Function Data

    O&M
    • OAM/OMCI, Telnet, WEB, TR069
    Connect Mode
    • Support bridge, router & bridge/router mixed mode
    QoS
    • Support 4 queues
    • Support SP, WRR, 802.1P and DSCP
    Data Service Functions
    •  Full speed non-blocking switching
    •  1K MAC address table
    •  8 full range VLAN ID
    •  Support VLAN tag, untag, transparent, trunk, translation mode
    •  Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
    •  Support auto polarity detection of Ethernet ports (AUTO MDIX)
    •  Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
    Wireless
    •  Integrated IEEE 802.11b/g/n/ac
    •  Authentication: WEP-64/WEP-128/ WPA/WPA2/WPA3
    •  Modulation type: DSSS, CCK and OFDM
    •  Encoding scheme: BPSK, QPSK,256QAM
    •  Support Wi-Fi Easymesh function
    L3
    •  IPv4, IPv6 and IPv4/IPv6 dual stack
    •  DHCP/PPPOE/Static
    •  Static route, DHCP Server
    •  NAT/DMZ/DDNS/Virtual Server
    Security
    •  Support Firewall
    •  Support Mac filter Based on MAC or URL
    •  Support ACL
