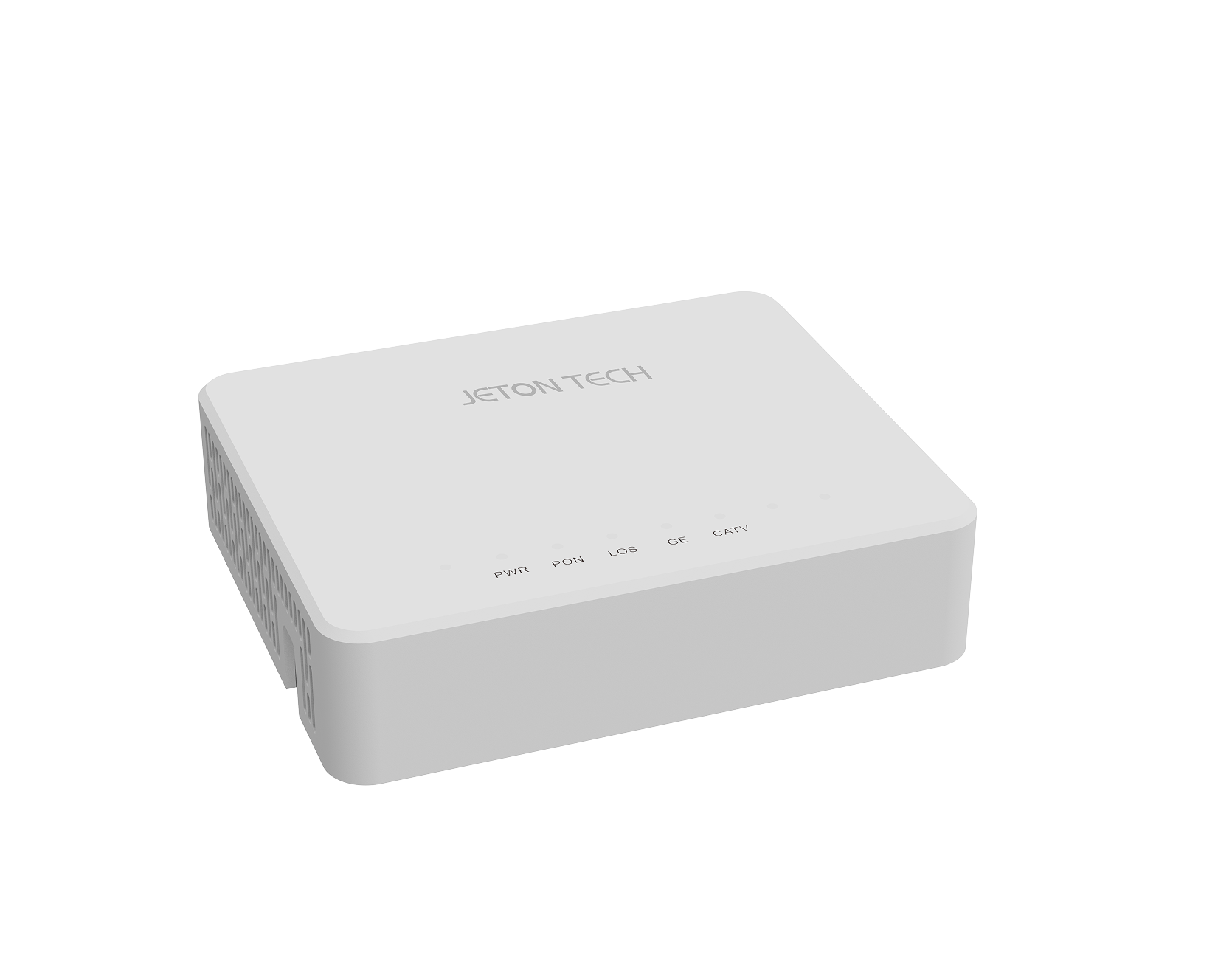

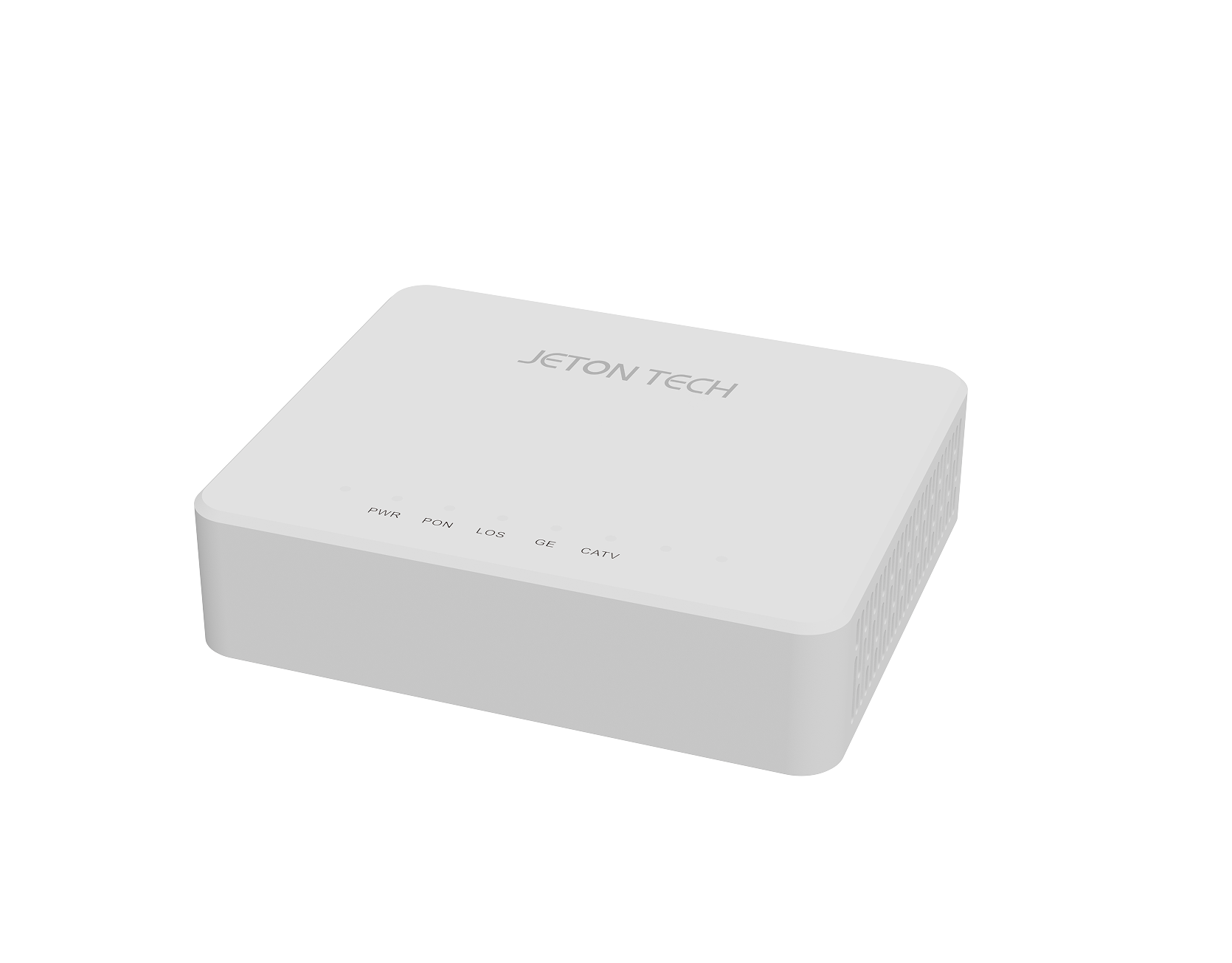

JP1X1G C
JP1X1G

JP1X1G-C

1-Port Gigabit CATV XPON ONT

JP1X1G C
JP1X1G

JP1X1G-C

1-Port Gigabit CATV XPON ONT

JP1X1G C
JP1X1G

JP1X1G-C

1-Port Gigabit CATV XPON ONT

JP1X1G C
JP1X1G

JP1X1G-C

1-Port Gigabit CATV XPON ONT

Product introduction

1*XPON+ 1*GE+ CATV

  • XPON Dual Mode: Automatically Access to GPON/EPON. Downlink speeds up to 2.488 Gbps, uplink up to 1.244 Gbps.
  • CATV with AGC: Achieve automatic adjustment of TV picture, say goodbye to snow and pixelation.
  • Bridge Mode & Router Mode: Supports HGU/SFU feature for flexible network access.
  • Make Network More Secure: Firewall built-in chipset; Anti-DDOS; Filter based IP/MAC/White List/Black List etc.
  • Wide-Working-Temperature Designed: Working stably from -10℃ to 55℃, and the lowest working temperature tested in the lab is -25℃.
  • Management: Support WEB/TELNET/CLI/TR069.
  • Product icon (12)
    XPON Dual Mode
  • Product icon (32)
    Gigabit Lan Port
  • Product icon (13)
    Powerful Firewall
  • Product icon (2)
    CATV with AGC
  • Product icon (11)
    Wide Working Temp -10℃～+55℃

Product datasheet

  • Description

    Model
    • JP1X1G-C
    Product Name
    • 1-Port Gigabit CATV XPON ONT
    Product Description
    • 1*XPON+ 1*GE+ CATV
    Accessories
    • AC-DC power adaptor: DC12V/0.5A

  • Hardware Parameter

    Dimension
    • 120mm×100mm×30mm(L×W×H)
    Net weight
    • 160g
    Operating condition
    •   Operating Temp: -10 ~ +55°C
    •   Operating Humidity: 5 ~ 95% (non-condensing)
    Storing condition
    •   Storing temp: -40 ~ +70°C
    •   Storing humidity: 5 ~ 95% (non-condensing)
    Power adapter
    • DC 12V/0.5A, external AC-DC power adaptor
    Power supply
    • ≤ 4.2W
    Interface
    • 1*XPON+ 1*GE + CATV
    Indicators
    • POWER, LOS, PON, LAN, CATV

  •  Interface Parameter

    PON interface
    •   1 XPON port (EPON PX20+ and GPON Class B+)
    •   SC single mode, SC/APC connector
    •   TX optical power: 0 ~ +4dBm
    •   RX sensitivity: -27dBm
    •   Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    •   Transmission distance: 20KM
    •   Wavelength: TX 1310nm, RX1490nm, CATV 1550nm
    LAN interface
    • 1*GE Auto-negotiation RJ45 ports
    CATV interface
    •  Optical receiving wavelength: 1550±10nm
    •  Optical input range: +2～-18dBm
    •  Optical reflection loss: ≥40dB
    •  RF frequency range: 47～1000MHz
    •  RF output impedance: 75Ω
    •  RF output level and AGC range:

      ≥81±2dBuv@+1～-10dBm

      ≥79±2dBuv@ 0～-11dBm

      ≥77±2dBuv@-1～-12dBm

      ≥75±2dBuv@-2～-13dBm

      ≥73±2dBuv@-3～-14dBm

      ≥71±2dBuv@-4～-15dBm



    •  MER: ≥32dB (-14dBm optical input)

  • Function Data

    PON Mode
    • XPON Dual Mode
    Uplink Mode
    • Bridging and Routing Mode
    • Well connect with OLTs of mainstream
    CATV
    • Support CATV Remote management
    Standard
    • Support CTC OAM 2.1 and 3.0
    • Support ITUT984.x OMCI
    Layer2
    •  802.1D & 802.1ad bridging
    •  802.1p CoS
    •  802.1Q VLAN
    Layer3
    •    IPv4
    •    DHCP Client/Server
    •  PPPoE, NAT, DMZ, DDNS
    Multicast
    • IGMP v2/v3, IGMP snooping
    Security and Firewall
    • Prevent Rogue ONU
    • DDOS, Filtering Based on ACL/MAC/URL
    Management
    •  Support CTC OAM 2.0 and 2.1
    •  Support ITUT984.x OMCI
    •  Support WEB
    •  Support TELNET
    •  Support TR069
    •  Support CLI

Contact support for any product issues.
