Product introduction

1*10G PON (XG-PON)+ 1*2.5GE

  • 10G PON & 2.5GE LAN Port: Downlink speeds up to 9.953 Gbps, uplink up to 2.488 Gbps. Providing home and business users with the ultimate 2.5G ultra-high speed internet connectivity experience.
  • Bridge Mode & Router Mode: Supports HGU/SFU feature for flexible network access.
  • Make Network More Secure: Firewall built-in chipset; Anti-DDOS; Filter based IP/MAC/White List/Black List etc.
  • Power Efficiency & Optimal Cooling: Low-power chipset and smart design for reduced heat and energy consumption.
  • Wide-Working-Temperature Designed: Working stably from -10℃ to 55℃, and the lowest working temperature tested in the lab is -25℃.
  • Management: Support WEB/TELNET/CLI/SSH/TR069.
  • Product icon (29)
    10G PON Chipset
  • Product icon (32)
    2.5G Ultra-High Speed
  • Product icon (13)
    Powerful Firewall
  • Product icon (5)
    Power Efficiency
  • Product icon (11)
    Wide Working Temp -10℃～+55℃

Product datasheet

  • Description

    Model
    • JP1XG1N
    Product Name
    • 1-Port 2.5GE XG-PON ONT
    Product Description
    • 1*10G PON(XG-PON)+ 1*2.5GE
    Accessories
    • AC-DC power adaptor: DC12V/1A

  • Hardware Parameter

    Dimension
    • 120mm×100mm×30mm(L×W×H)
    Net Weight
    • 125g
    Operating Condition
    •  Operating Temp: -10 ~ +55°C
    •  Operating Humidity: 5 ~ 95% (non-condensing)
    Storing Condition
    •  Storing temp: -40 ~ +70°C
    •  Storing humidity: 5 ~ 95% (non-condensing)
    Power Adapter
    • 12V/1A
    Power Supply
    • 12W

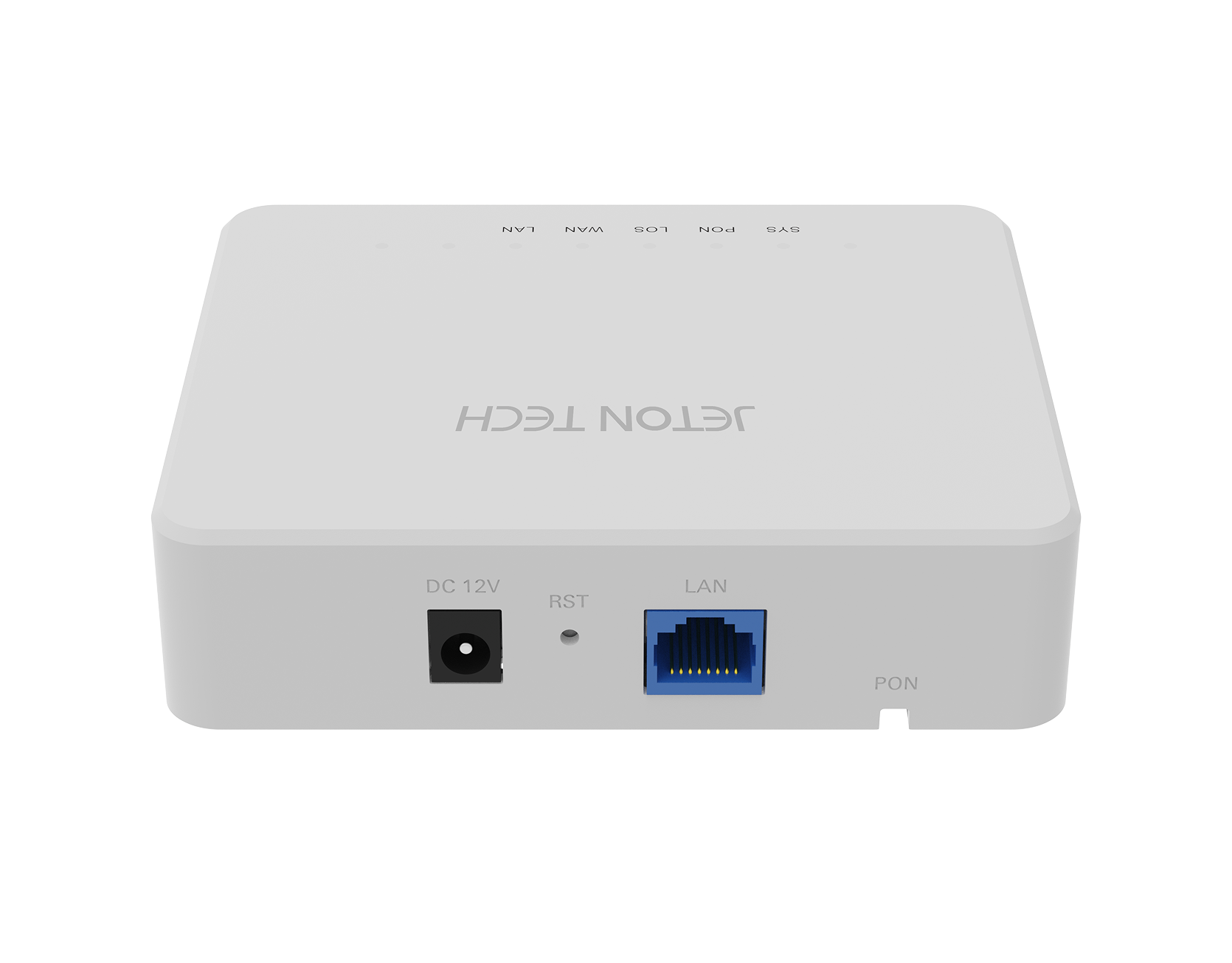

    Interface
    • 1*10G PON+ 2.5*GE

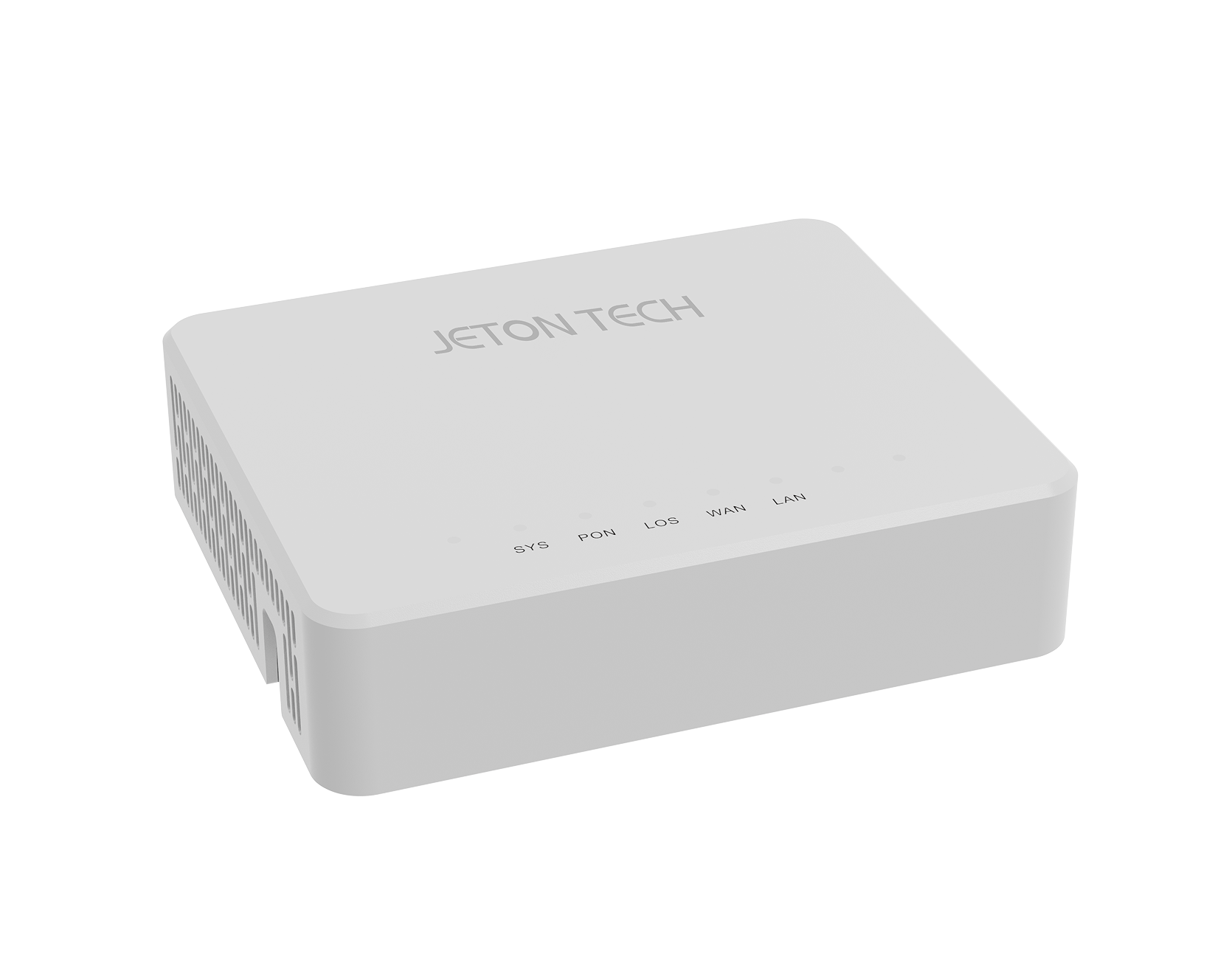

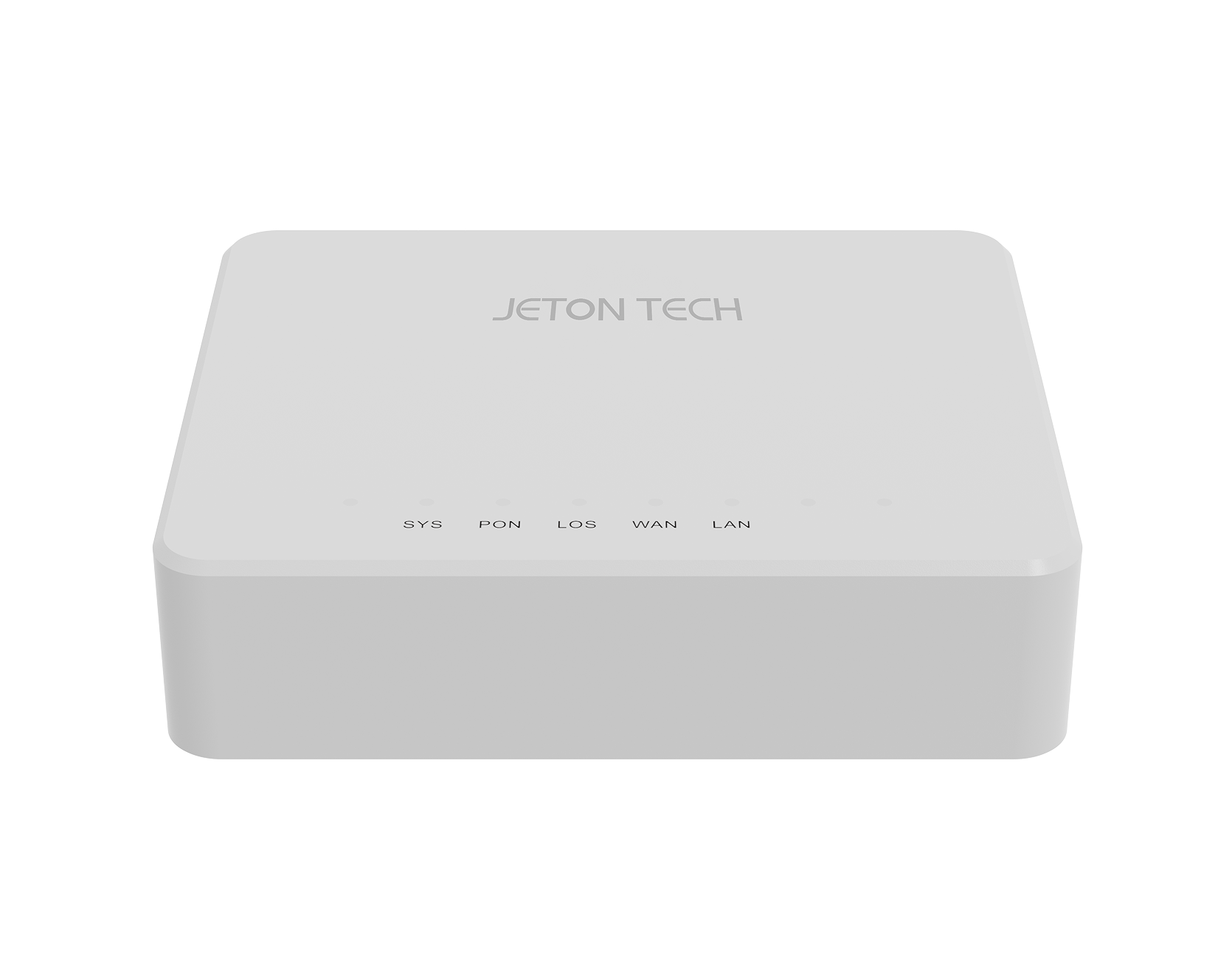

    Indicators
    • SYS, PON, LOS, WAN, LAN

  • Interface Parameter

    PON interface
    •  SC single mode, SC/UPC connector
    •  TX optical power: 4dBm(XG-PON)
    •  RX sensitivity: -28dBm
    •  Overload optical power: -8dBm
    •  Transmission distance: 20km
    •  Wavelength: XG(S)-PON: DS 1577nm/US 1270nm
    10G PON layer
    • ITU-T G.987(XG-PON)
    User interface
    • 1*2.5GbE, Auto-negotiation, RJ45 ports

  • Function Data

    Internet Connection
    • Support Bridge/Router mode
    Alarm
    •  Support Dying Gasp
    •  Support Port Loop Detect
    •  Support Eth Port Los
    LAN
    •  Support Port rate limiting
    •  Support Loop detection
    •  Support Flow control
    •  Support Storm control
    VLAN
    •  Support VLAN tag mode
    •  Support VLAN transparent mode
    •  Support VLAN trunk mode
    •  Support VLAN hybrid mode
    L2
    •  802.1p Cos,802.1Q VLAN

       IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

    L3
    •  IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

       IGMP v1/v2/v3, IGMP snooping

       MLD v1/v2 snooping

    Multicast
    •  IGMP v1/v2/v3, IGMP snooping
    •  MLD v1/v2 snooping
    QoS
    •  Support WRR、SP+WRR

       WEB/TELNET/SSH/TR069

       SupportITU-T G.987x OMCI

    O&M

     Support IP address and port filtering function

      Anti-DDOS, Filtering Based on ACL/MAC /URL

    Firewall
    •  Support IP address and port filtering function
    •   Anti-DDOS, Filtering Based on ACL/MAC /URL
