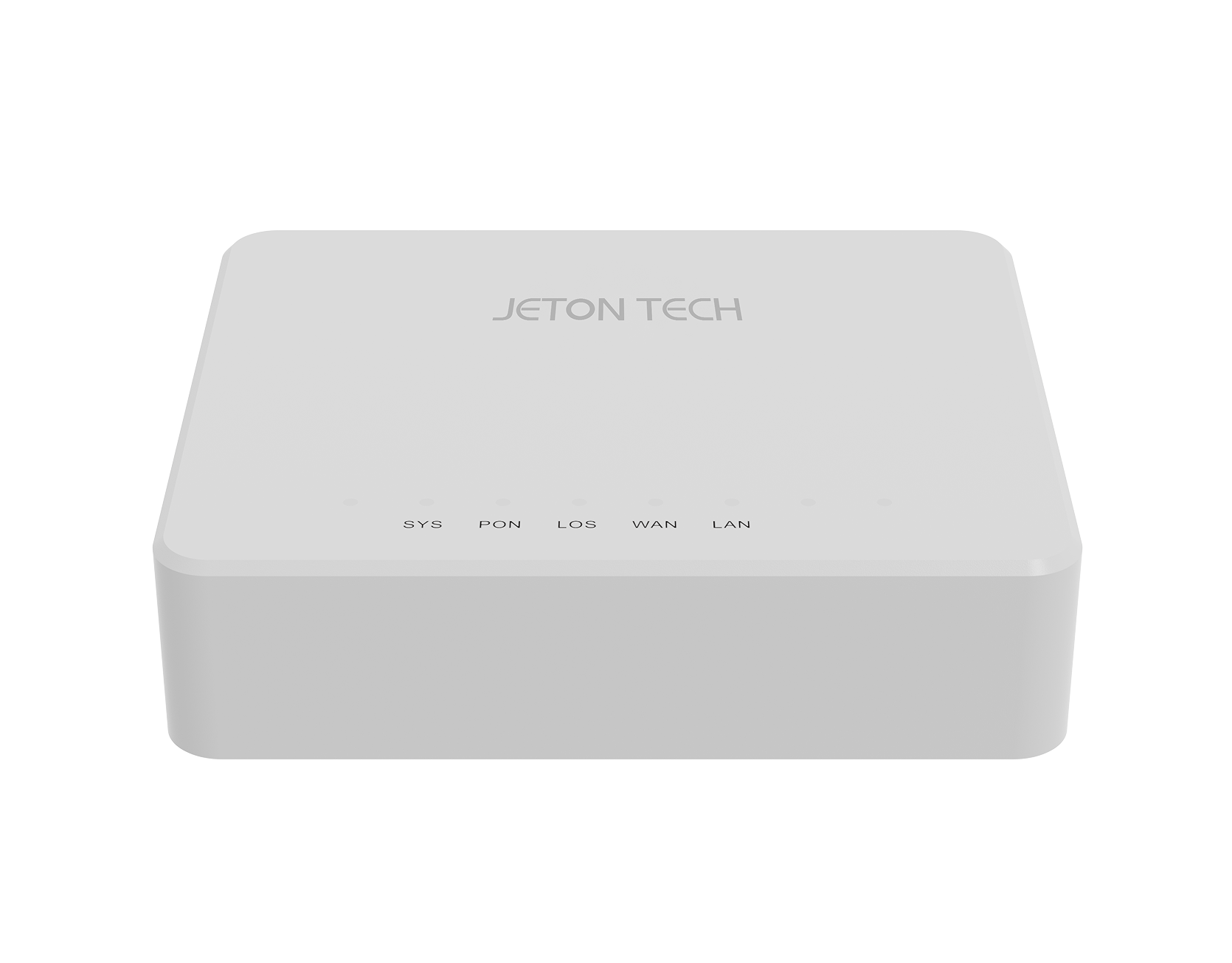

JP1XS1N
JP1XS1N
1-Port 2.5GE XGS-PON ONT
JP1XS1N
JP1XS1N
1-Port 2.5GE XGS-PON ONT
JP1XS1N
JP1XS1N
1-Port 2.5GE XGS-PON ONT
JP1XS1N
JP1XS1N
1-Port 2.5GE XGS-PON ONT
Product introduction
1*10G PON (XGS-PON)+ 1*2.5GE
- XGS-PON & 2.5GE LAN Port: Downlink speeds up to 9.953 Gbps, uplink up to 2.488 Gbps. Providing home and business users with the ultimate 2.5G ultra-high speed internet connectivity experience.
- Bridge Mode & Router Mode: Supports HGU/SFU feature for flexible network access.
- Make Network More Secure: Firewall built-in chipset; Anti-DDOS, Anti-Virus; Filter based IP/MAC/White List/Black List etc.
- Power Efficiency & Optimal Cooling: Low-power chipset and smart design for reduced heat and energy consumption.
- Wide-Working-Temperature Designed: Working stably from -10℃ to 55℃, and the lowest working temperature tested in the lab is -25℃.
- Management: Support WEB/TELNET/CLI/SSH/TR069.
-
10G PON Chipset -
2.5G Ultra-High Speed
-
Powerful Firewall
-
Power Efficiency
-
Wide Working Temp -10℃～+55℃
Product datasheet
-
Description
Model- JP1XS1N
Product Name- 1-Port 2.5GE XGS-PON ONT
Product Description- 1*10G PON(XGS-PON)+ 1*2.5GE
Accessories- AC-DC power adaptor: DC12V/1A
-
Hardware Parameter
Dimension- 120mm×100mm×30mm(L×W×H)
Net Weight- 125g
Operating Condition- Operating Temp: -10 ~ +55°C
- Operating Humidity: 5 ~ 95% (non-condensing)
Storing Condition- Storing temp: -40 ~ +70°C
- Storing humidity: 5 ~ 95% (non-condensing)
Power Adapter- 12V/1A
Power Supply- 12W
Interface- 1*10G PON+ 2.5*GE
Indicators SYS, PON, LOS, WAN, LAN- SYS, PON, LOS, WAN, LAN
-
Interface Parameter
PON interface- SC single mode, SC/UPC connector
- TX optical power: 6dBm(XGS-PON)
- RX sensitivity: -28dBm
- Overload optical power: -8dBm
- Transmission distance: 20km
- Wavelength: XG(S)-PON: DS 1577nm/US 1270nm
10G PON layer- ITU-T G.9807.1 (XGS-PON)
User interface- 1*2.5GbE, Auto-negotiation, RJ45 ports
-
Function Data
Internet Connection- Support Bridge/Router mode
Alarm- Support Dying Gasp
- Support Port Loop Detect
- Support Eth Port Los
LAN- Support Port rate limiting
- Support Loop detection
- Support Flow control
- Support Storm control
VLAN- Support VLAN tag mode
- Support VLAN transparent mode
- Support VLAN trunk mode
- Support VLAN hybrid mode
L2- 802.1p Cos,802.1Q VLAN
L3- IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
Multicast- IGMP v1/v2/v3, IGMP snooping
- MLD v1/v2 snooping
QoS- Support WRR、SP+WRR
O&M- WEB/TELNET/SSH/TR069
- Support ITU-T G.9807.1x OMCI
Firewall- Support IP address and port filtering function
- Anti-DDOS, Filtering Based on ACL/MAC /URL
