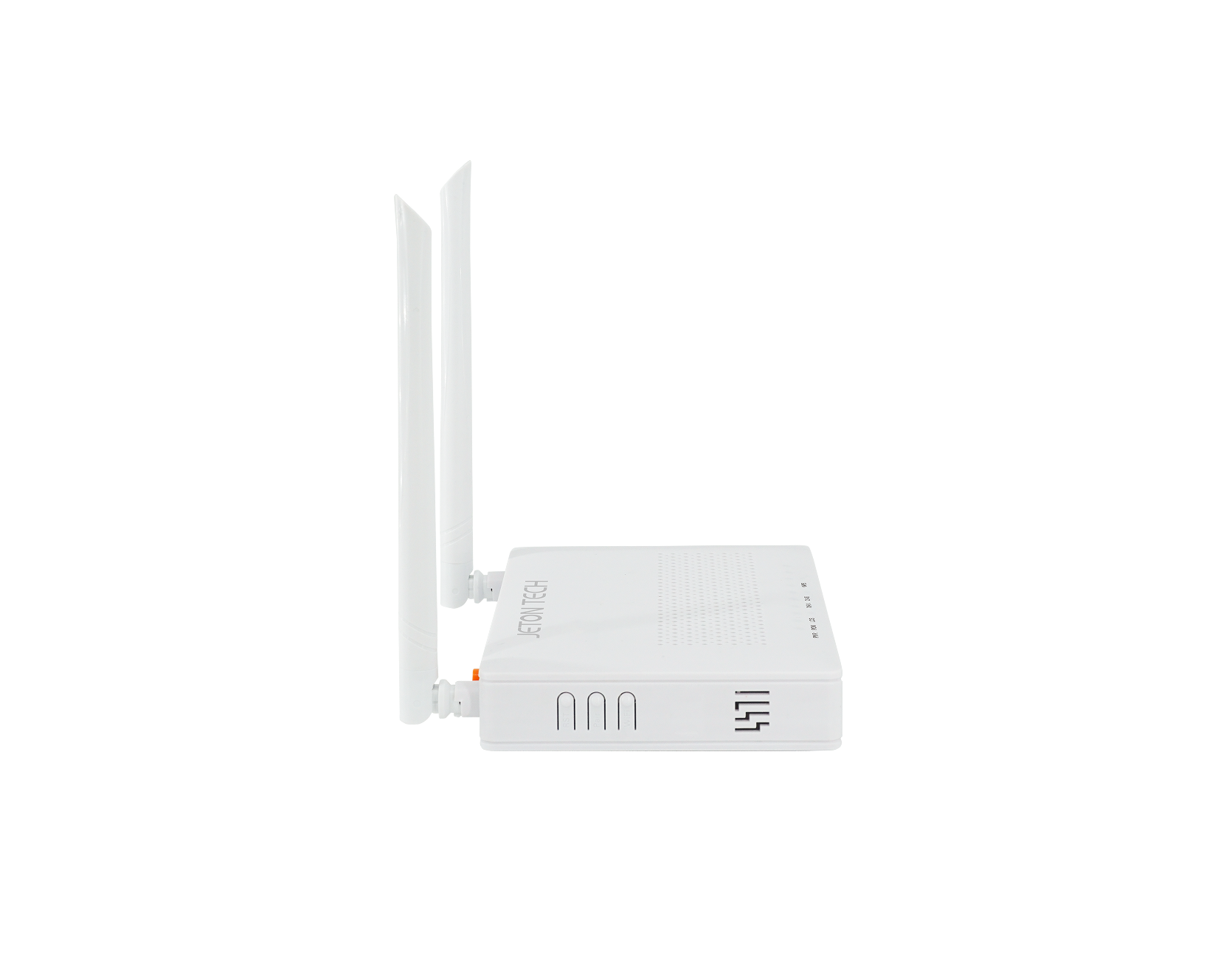

JP300G
JP300G

JP300G

1*XPON+ 4*GE+ WiFi 4 (N300)

JP300G
JP300G

JP300G

1*XPON+ 4*GE+ WiFi 4 (N300)

JP300G
JP300G

JP300G

1*XPON+ 4*GE+ WiFi 4 (N300)

JP300G
JP300G

JP300G

1*XPON+ 4*GE+ WiFi 4 (N300)

JP300G
JP300G

JP300G

1*XPON+ 4*GE+ WiFi 4 (N300)

Product introduction

1*XPON+ 4*GE+ WiFi 4 (N300)

  • High Performance Solution: Supporting XPON dual-mode technology (EPON and GPON); Complies with international standards such as IEEE802.3ah and ITU-T G.984.
  • Fast Speed Wi-Fi 4: Wi-Fi up to 300 Mbps on 2.4 GHz.
  • Four Gigabit LAN Ports: Each port is ten times faster than Fast Ethernet, enough to connect all your favorite devices.
  • Management Functions: WEB/TELNET/OAM/OMCI/TR069.
  • Product icon (29)
    High Performance Solution
  • Product icon (23)
    Wi-Fi Up to 300 Mbps
  • Product icon (32)
    4× Gigabit LAN Ports
  • Product icon (14)
    IPv6/IPv4 Dual Stack
  • Product icon (7)

Product datasheet

  • Description

    Model
    • JP300G
    Product Name
    • N300 Wi-Fi 4 XPON ONT
    Product Description
    • 1*XPON+ 4*GE+ WiFi 4 (N300)
    Accessories
    • AC-DC power adaptor: DC12V/1A

  • Hardware Parameter

    Dimension
    • 205mm×140mm×37m(L×W×H)
    Net weight

    340g

    Operating condition
    •  Operating temp: -10 ~ +55°C
    •  Operating humidity: 5 ~ 95% (non-condensed)
    Storing condition
    •  Storing temp: -40 ~ +70°C
    •  Storing humidity: 5 ~ 95% (non-condensed)
    Power adapter
    • DC 12V,1A, external AC-DC power adaptor
    Power supply
    • ≤12W
    Interface
    • 1*XPON+ 4*GE+ Wi-Fi 4
    Indicators
    • PWR, PON, LOS, WAN, FXS, ETH1~EH4, WPS, WIFI

  • Interface Parameter

    PON Interface
    • 1XPON port(EPON PX20+ & GPON Class B+)
    •  SC single mode, SC/UPC connector
    •  TX optical power: 0～+4dBm
    •  RX sensitivity: -27dBm
    •  Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    •  Transmission distance: 20KM
    •  Wavelength: TX 1310nm, RX1490nm
    Wi–Fi interface
    •  Compliant with IEEE802.11b/g/n
    •  Rate up to 300Mbps, 2T2R, 5dBi external antenna
    •  Support multiple SSID, 13 Channels
    •  TX power: 5GHz ＜20 dBm; 2.4GHz ＜20 dBm
    LAN Interface
    • 4*GE, Auto-negotiation,RJ45 ports

  • Function Data

    O&M
    •  WEB/TELNET/OAM/OMCI/TR069
    •  Support full management of HGU functions by Jeton OLT
    Connect Mode
    • Support Routing Mode
    XPON mode
    • XPON Dual Mode , Can access mainstream EPON/GPON OLTs
    Wireless
    • IEEE802.11b/g/n(TX power:17dBm/16dBm/15dBm)
    • WiFi Authentication : WEP/WPA-PSK(TKIP)/WPA2-PSK(AES)
    L2
    • 802.1D&802.1ad bridge, 802.1p Cos, 802.1QVLAN.
    L3
    •  IPv4/IPv6
    •  DHCP/PPPOE
    •  DHCP Client/Server
    •  NAT/DMZ/DDNS
    Security
    •  Support Firewall
    •  SupportFlow & Storm control
    •  Support Loop Detection
    •  Support Mac filter Based on ACL/MAC/URL
    •  Support DDOS
