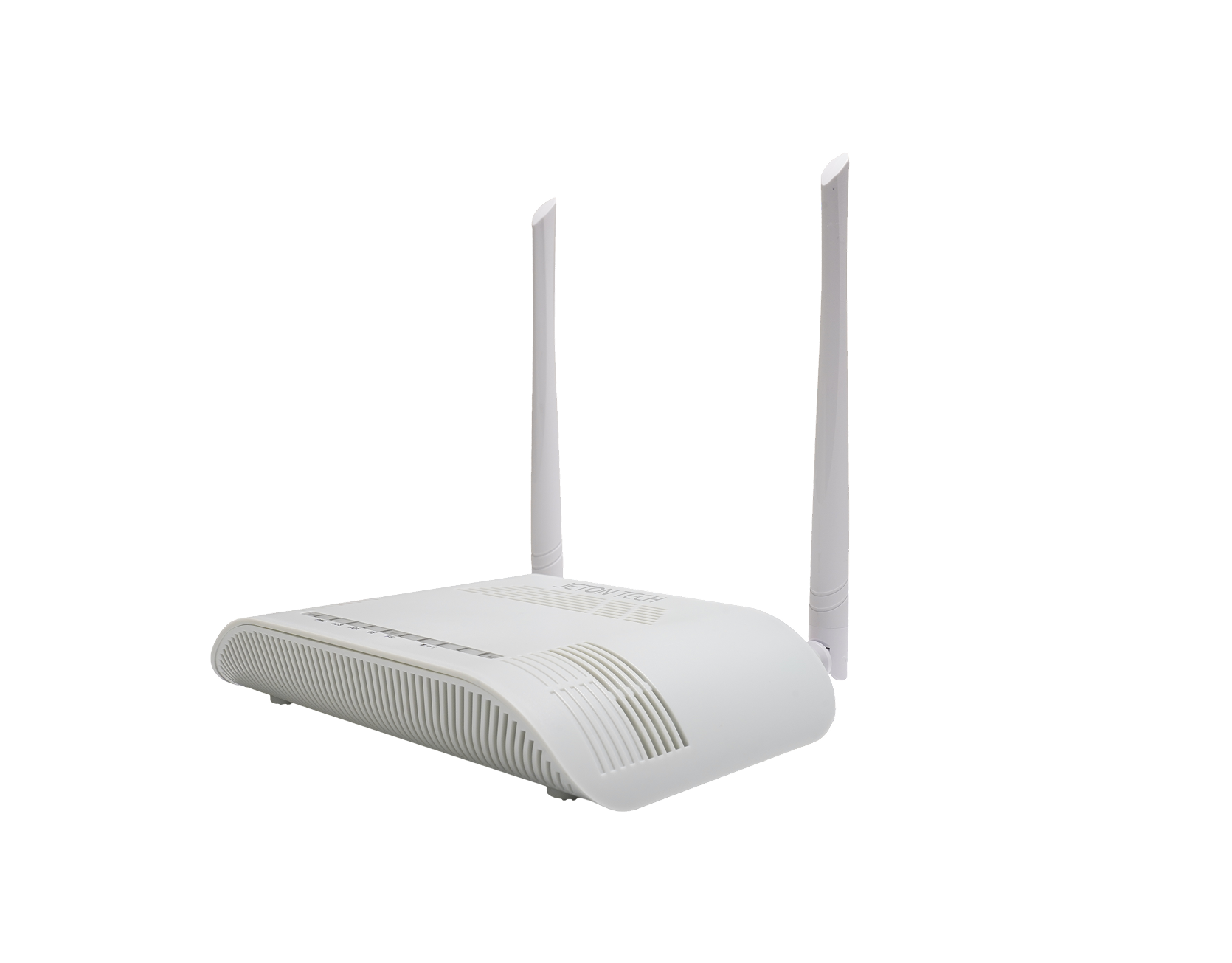

JP300G A
JP300G

JP300G-A

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300)

JP300G A
JP300G

JP300G-A

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300)

JP300G A
JP300G

JP300G-A

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300)

JP300G A
JP300G

JP300G-A

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300)

JP300G A
JP300G

JP300G-A

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300)

Product introduction

1*XPON+ 1*GE+ 1*FE WiFi 4 (N300) (N300)

  • High Performance Solution: Supporting XPON dual-mode technology (EPON and GPON); Complies with international standards such as IEEE802.3ah and ITU-T G.984.
  • Fast Speed Wi-Fi 4: Wi-Fi up to 300 Mbps on 2.4 GHz.
  • Two LAN Ports: Providing one 10/100/1000 Mbps LAN port and one 10/100 Mbps LAN port.
  • Management Functions: WEB/TELNET/OAM/OMCI/TR069.
  • Product icon (29)
    High Performance Solution
  • Product icon (23)
    Wi-Fi Up to 300 Mbps
  • Product icon (32)
    2× GE/FE LAN Ports
  • Product icon (14)
    IPv6/IPv4 Dual Stack
  • Product icon (7)

Product datasheet

  • Description

    Model
    • JP300G-A
    Product Name
    • Product Name
    Product Description
    • 1*XPON+ 1*GE+ 1*FE+ WiFi 4 (N300)
    Accessories
    • AC-DC power adaptor: DC12V/1A

  • Hardware Parameter

    Dimension
    • 185mm×120mm×34mm(L×W×H)
    Net weight
    • 240g
    Operating condition
    •  Operating temp: -10 ~ +55°C
    •  Operating humidity: 5 ~ 95% (non-condensed)
    Storing condition
    •  Storing temp: -40 ~ +70°C
    •  Storing humidity: 5 ~ 95% (non-condensed)
    Power adapter
    • DC 12V,1A, external AC-DC power adaptor
    Power supply
    • ≤7W
    Interface
    • 1*XPON+1GE+1FE+WiFi4
    Indicators
    • POWER、LOS、PON、GE、FE、WiFi

  • Interface Parameter

    PON Interface
    • 1XPON port(EPON PX20+ & GPON Class B+)
    •  SC single mode, SC/UPC connector
    •  TX optical power: 0～+4dBm
    •  RX sensitivity: -27dBm
    •  Overload optical power: -3dBm (EPON) or -8dBm (GPON)
    •  Transmission distance: 20KM
    •  Wavelength: TX 1310nm, RX1490nm
    Wi–Fi interface
    •  Compliant with IEEE802.11b/g/n
    •  Operating frequency: 2.400-2.4835GHz
    •  Support MIMO, rate up to 300Mbps,
    •  2T2R,2 external antenna 5dBi,
    •  Support multiple SSID, 13 Channels
    •  Modulation type: DSSS、CCK and OFDM
    •  Encoding scheme: BPSK、QPSK、16QAM and 64QAM
    •  TX power: 5GHz ＜20 dBm; 2.4GHz ＜20 dBm
    LAN Interface
    • 1*GE+1*FE,Auto-negotiation RJ45 ports

  • Function Data

    O&M
    • WEB/TELNET/OAM/OMCI/TR069
    Uplink Mode
    • Support Bridging and Routing Mode
    PON mode
    • XPON Dual Mode , Can access mainstream EPON/GPON OLTs
    Alarm
    •  Support Dying Gasp
    •  Support Port Loop Detect
    •  Support Eth Port Los
    Wireless
    •  IEEE802.11b/g/n
    •  Support Multiple SSID and SSID conceal
    •  WiFi Authentication : WEP/WPA-PSK(TKIP)/WPA2-PSK(AES)
    VLAN
    •  Support 4K VLAN
    •  Support VLAN tag, untag
    •  Support transparent
    •  Support trunk, translation mode
    •  Support translation mode
    Multicast
    • Support Max Multicast Group 64
    • Support IGMPv1/v2/v3/Proxy/Snooping
    • Support MLD v1/v2
    L3
    •  IPv4/IPv6 dual stack
    •  DHCP/PPPOE/Static IP, NAT
    •  DHCPv6 Server, IPv4/IPv6 Static route
    QoS
    • Support 4 queues
    • Support SP, WRR, 802.1P and DSCP
    Security
    •  Support Firewall
    •  Support Flow & Storm control
    •  Support Loop Detection
    •  Support filter Based on ACL/MAC/URL
    Management
    •  CTC OAM 2.1 and 3.0
    •  Support ITUT984.x OMCI
    •  Support EMS
    •  Support WEB
    •  Support Telnet
    •  Support CLI
    •  Support unified network management of Jeton OLT
